Toyota 221220 — MANIFOLD

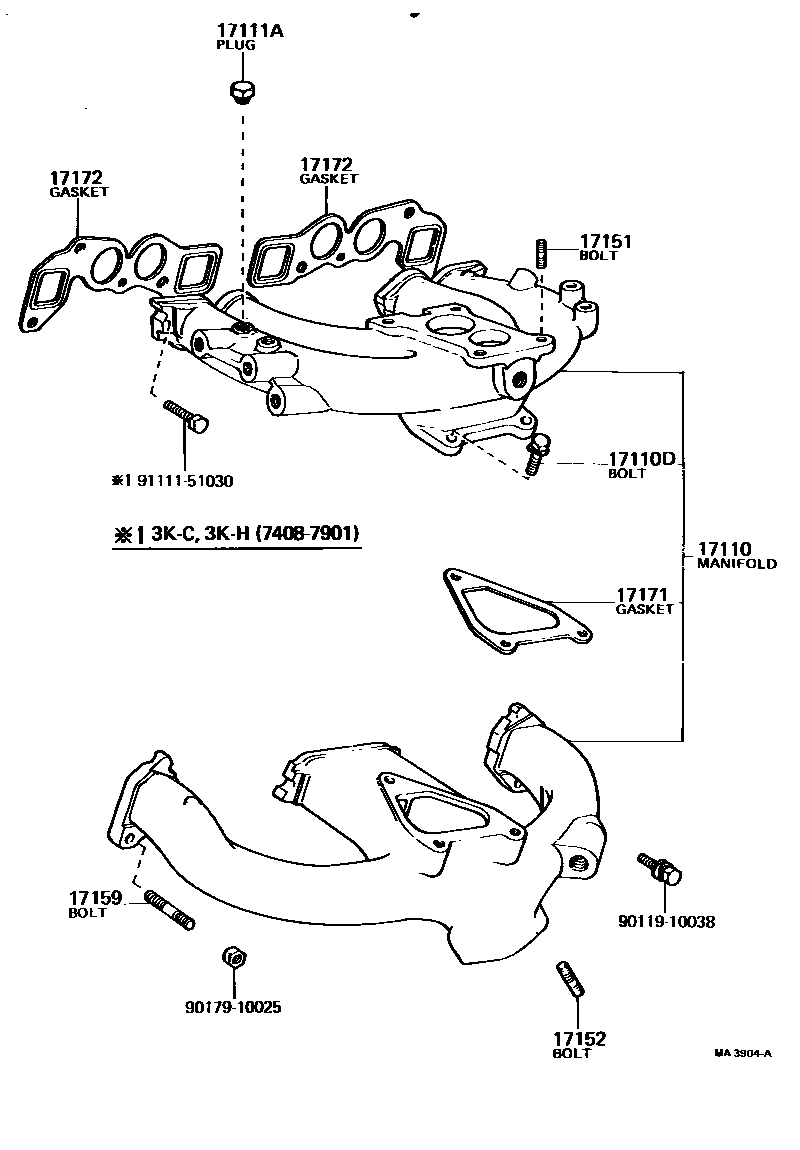

Parts diagram

17110MANIFOLD ASSY

17110DBOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)

17111MANIFOLD, INTAKE

17111APLUG, NO.1

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

17171GASKET, INTAKE TO EXHAUST MANIFOLD

17172GASKET, MANIFOLD TO CYLINDER HEAD

9011910038

9017910025

9111151030

12 parts on this diagram · 7 diagrams in section

MANIFOLD for Toyota 221220

This section contains 59 genuine Toyota parts for the MANIFOLD system of the Toyota 221220. Key components include: HOSE, INTAKE MANIFOLD WATER, CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER), OUTLET SUB-ASSY, WATER BY-PASS, HOSE, WATER BY-PASS OUTLET, CLAMP, WATER BY-PASS OUTLET HOSE.
