Toyota 221220 — WATER PUMP
16100PUMP ASSY, ENGINE WATER
16100KPUMP KIT, WATER
16100LROTOR KIT, WATER PUMP
16119GASKET, WATER PUMP BODY
16131ROTOR, WATER PUMP
16131ABEARING, WATER PUMP
9033913009
9033916007
9161160835
9161160850
9322016014
9611210220
9611210250
18 parts on this diagram · 4 diagrams in section

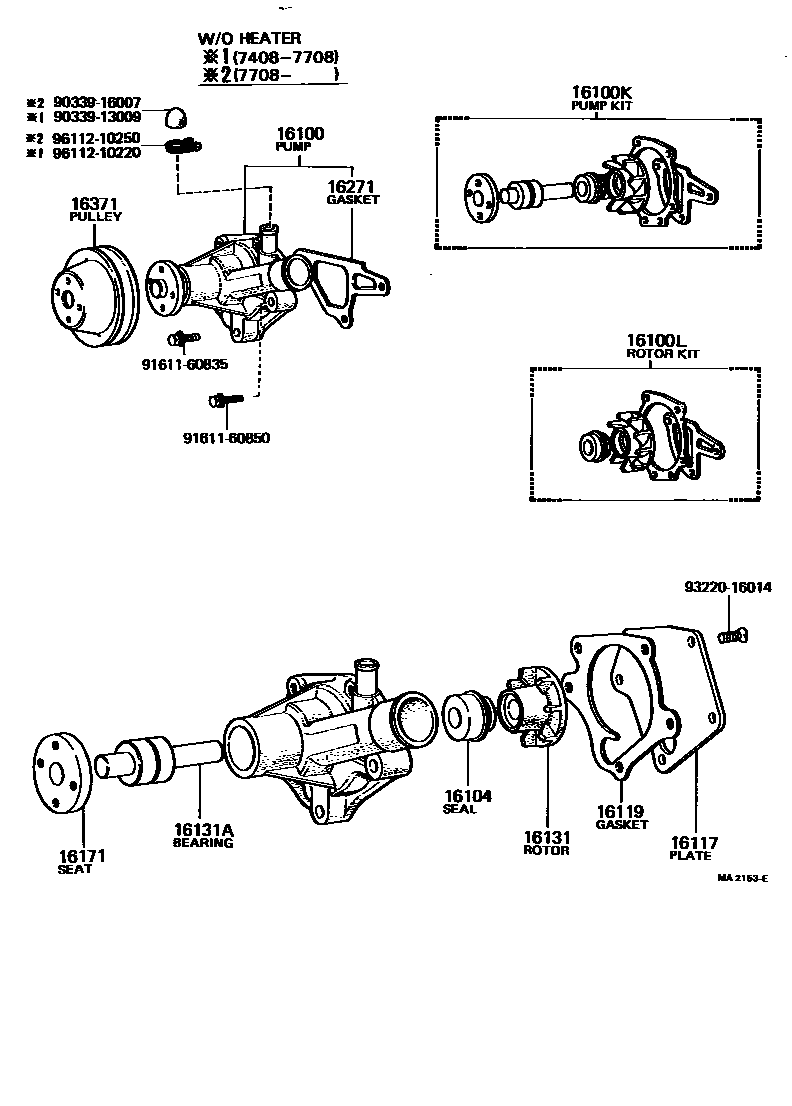

WATER PUMP for Toyota 221220
This section contains 29 genuine Toyota parts for the WATER PUMP system of the Toyota 221220. Key components include: PUMP ASSY, ENGINE WATER, BOLT, STUD(FOR WATER PUMP SET), PUMP KIT, WATER, ROTOR KIT, WATER PUMP, SEAL SET, WATER PUMP.
