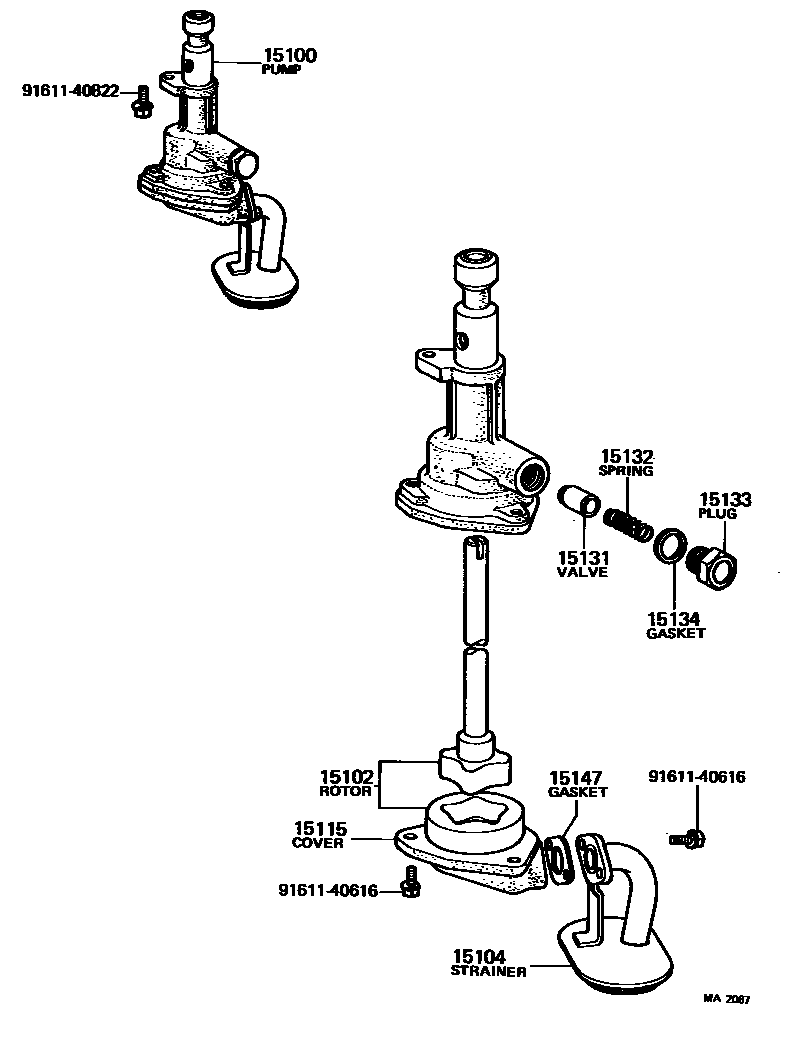

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15100PUMP ASSY, OIL

main15100-13010i3K#,4KC..KE3#,5#197705-197908

main15100-13011i3KH,4KC..KE3#,55197908-198107

main15100-24010i3K#..KE3#197408-197410

main15100-24011i3K#..KE3#,50197410-197705

main15100-25012i2TG..TE47197408-197704

main15100-25020i2T,2TB..TE3#,47,51197408-197704

15102ROTOR SET, OIL PUMP

main15102-24010i3K#,4KC..KE3#,5#197408-198107

main15102-25010i2T#..TE3#,47,51197408-198004

15104STRAINER SUB-ASSY, OIL

main15104-22011i3K#..KE3#,50197408-197705

15115COVER, OIL PUMP

main15012-13010i3K#,4KC..KE3#,5#197705-198107

main15012-25012i2TG..TE47197408-197704

main15012-25020i2T,2TB..TE3#,47,51197408-197704

main15115-22010i3K#..KE3#,50197408-197705

15131VALVE, OIL PUMP RELIEF

main15131-22010i2T#..TE3#,47,51197408-198004

main15131-24010i3K#,4KC..KE3#,5#197408-198107

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i2T#..TE3#,47,51; 3K#,4KC..KE3#,5#197408-198107

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i2T#..TE3#,47,51197408-197901

main15133-24010i3K#..KE3#,50197408-197705

main15133-41030i2T#..TE3#,47,51197901-198004

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i2T#..TE3#,47,51; 3K#..KE3#,50197408-197604

15147GASKET, OIL STRAINER

main15147-40010i3K#..KE3#,50197408-197705

9161140616

main91611-40616

9161140822

main91611-40822

11 parts on this diagram · 3 diagrams in section
