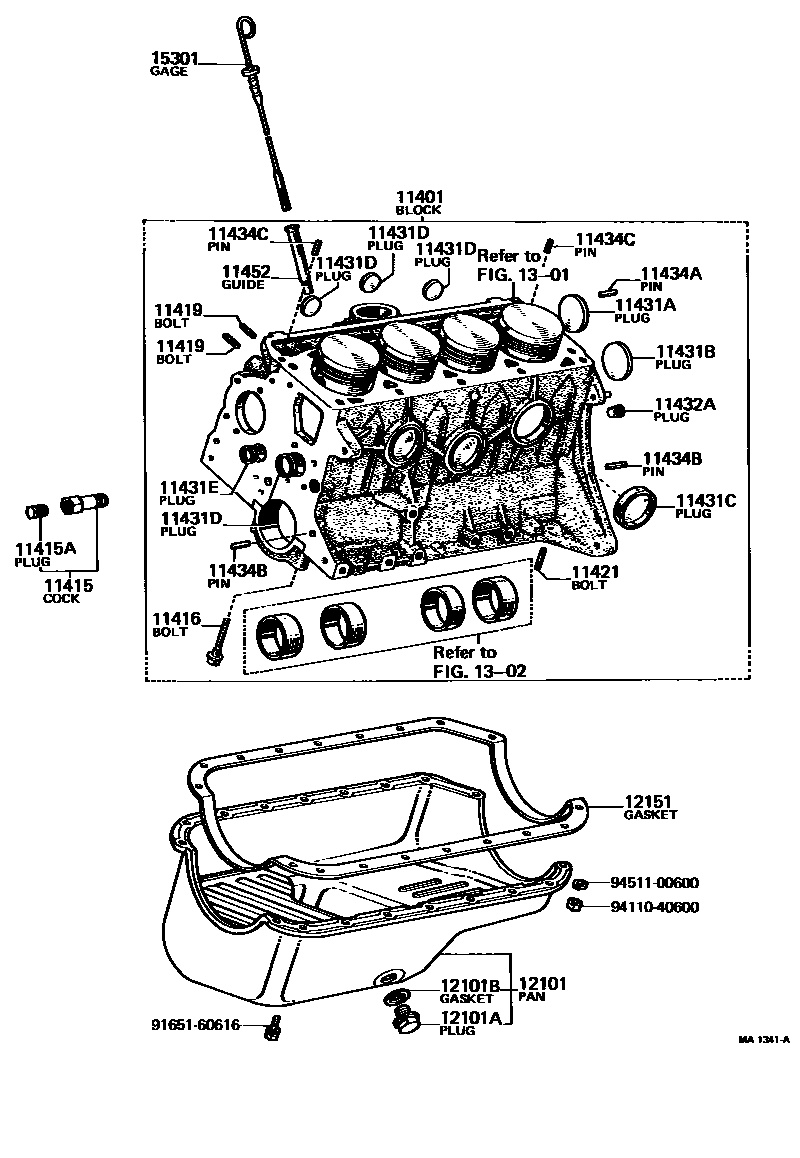

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-19035197808-198103

main11401-19036198103-198107

main11401-29046197408-197511

main11401-29047197508-197511

main11401-29048197511-197608

main11401-29058197408-197805

main11401-29059197805-197902

main11401-29095197408-197511

main11401-29096197511-197705

main11401-29097197705-198107

main11401-29115197511-197608

main11401-29116197608-197708

main11401-29145197608-197708

main11401-29205197708-197710

main11401-29206197710-197908

main11401-29215197708-197710

main11401-29216197710-197908

main11401-29218197908-198004

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09057197608-197905

main96431-03833197408-198004

main96431-03850197504-198107

main96431-03873197408-197504

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main96431-23814197408-198107

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02019197408-198107

main90910-02032197408-198004

11419BOLT, STUD(FOR FUEL PUMP)

main90116-08102197911-198107

main90116-08288197408-198107

11421BOLT, STUD(FOR OIL PAN)

main90116-06006197802-198107

main90116-06012197807-198107

main90116-08057197408-197902

main92132-40614197408-197802

main92132-60614197408-197807

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-47025197408-198107

main96411-45000197408-198004

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main90072-33901197408-197902

main90072-33902197408-197902

main90072-33903197408-197902

main96411-44500197408-198107

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main90331-35014197408-197511

main90331-35026197408-197812

main96411-43500197408-198107

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main96411-42500197408-198107

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main96411-01800197408-198004

main96412-01800197408-198107

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53011197408-198107

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120197408-198107

main90250-10113197408-198004

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-08120197408-198107

main90250-10113197408-198107

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08054197408-197711

main90250-08120197711-198107

11452GUIDE, OIL LEVEL GAGE

main11452-13010197707-198107

main11452-18010197908-198004

main11452-22011197408-197707

main11452-40010197408-197908

12101PAN SUB-ASSY, OIL

main12101-19015197808-198107

main12101-19025197802-198107

main12101-29045197408-197802

main12101-29055197408-198004

main12101-29075197703-197908

12101APLUG(FOR OIL PAN DRAIN)

main90341-18089197408-198107

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-18244197408-198107

12151GASKET, OIL PAN

main12151-12010197802-198107

main12151-13010197808-198107

main12151-24020197408-197703

main12151-24021197703-197802

main12151-25010197408-198004

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

15301GAGE SUB-ASSY, OIL LEVEL

main15301-13010197707-198107

main15301-18010197908-198004

main15301-22011197408-197707

main15301-25011197408-197701

main15301-28010197701-197802

main15301-28011197802-197908

main15301-88260197611-197902

9165160616

main91651-60616

9411040600

main94110-40600

9451100600

main94511-00600
