ENGINE OVERHAUL GASKET KIT

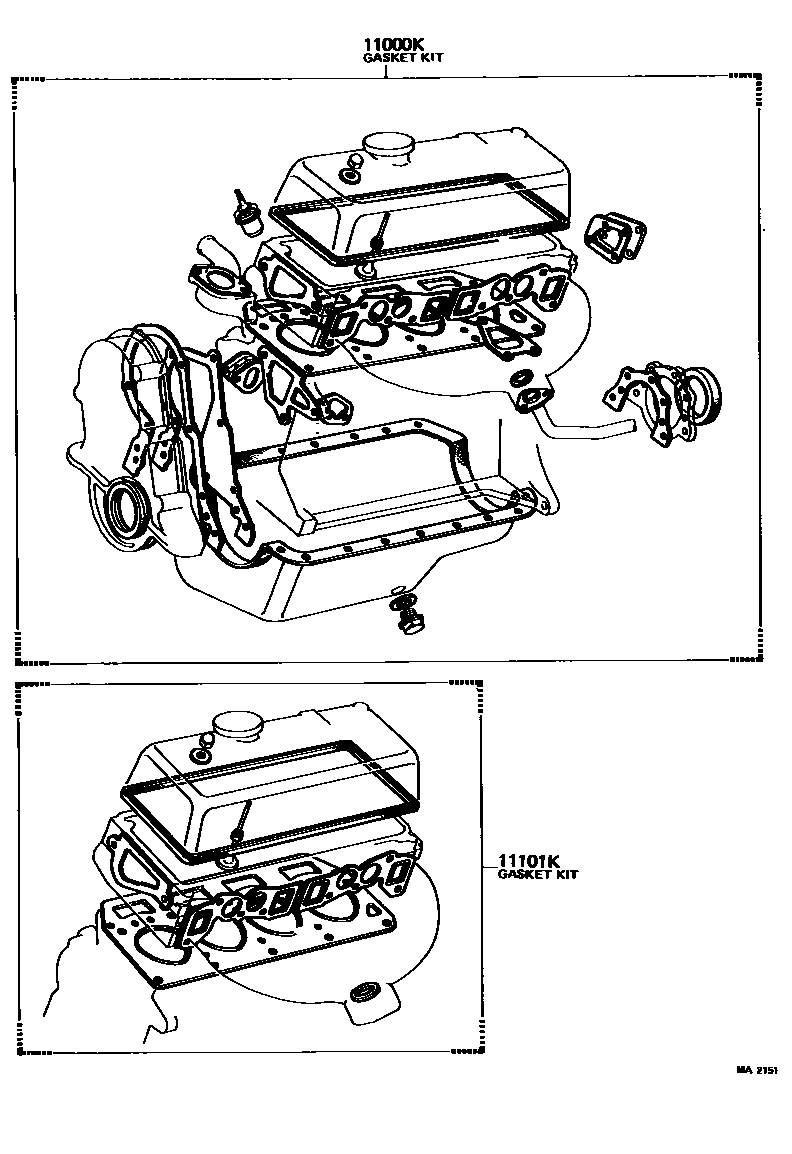

Parts diagram

11000KGASKET KIT, ENGINE OVERHAUL

main04111-13021i197808-197902

main04111-13022i197902-197910

main04111-13023i197910-198101

main04111-13024i198101-198102

main04111-13025i198102-198107

main04111-24020i197408-197410

main04111-24021i197410-197411

main04111-24023i197411-197511

main04111-24030i197408-197410

main04111-24031i197410-197411

main04111-24033i197411-197511

main04111-24034i197511-197704

main04111-24036i197704-197705

main04111-24037i197705-197708

main04111-24038i197708-197802

main04111-24039i197802-197908

main04111-24040i197511-197704

main04111-24041i197704-197705

main04111-24042i197705-197708

main04111-24043i197708-197802

main04111-24044i197802-198107

main04111-26011i197408-197508

main04111-26022i197508-197511

main04111-26023i197511-197609

main04111-26026i197701-197703

main04111-26027i197703-197808

main04111-26070i197701-197703

main04111-26071i197703-197808

main04111-27010i197408-197611

main04111-27030i197611-197902

main04111-28011i197808-197810

main04111-28012i197810-198004

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-24020i197408-197410

main04112-24021i197410-197511

main04112-24030i197408-197410

main04112-24031i197410-197511

main04112-24032i197511-197704

main04112-24034i197704-197708

main04112-24035i197708-197908

main04112-24040i197511-197704

main04112-24041i197704-197708

main04112-24042i197808-197902

main04112-24043i197902-198101

main04112-24044i198101-198102

main04112-24045i198102-198107

main04112-26011i197408-197508

main04112-26022i197508-197609

main04112-26025i197609-197703

main04112-26026i197703-197808

main04112-27010i197408-197611

main04112-27030i197611-197902

main04112-28011i197808-197810

main04112-28012i197810-198004

2 parts on this diagram · 4 diagrams in section
