NAVIGATION & FRONT MONITOR DISPLAY

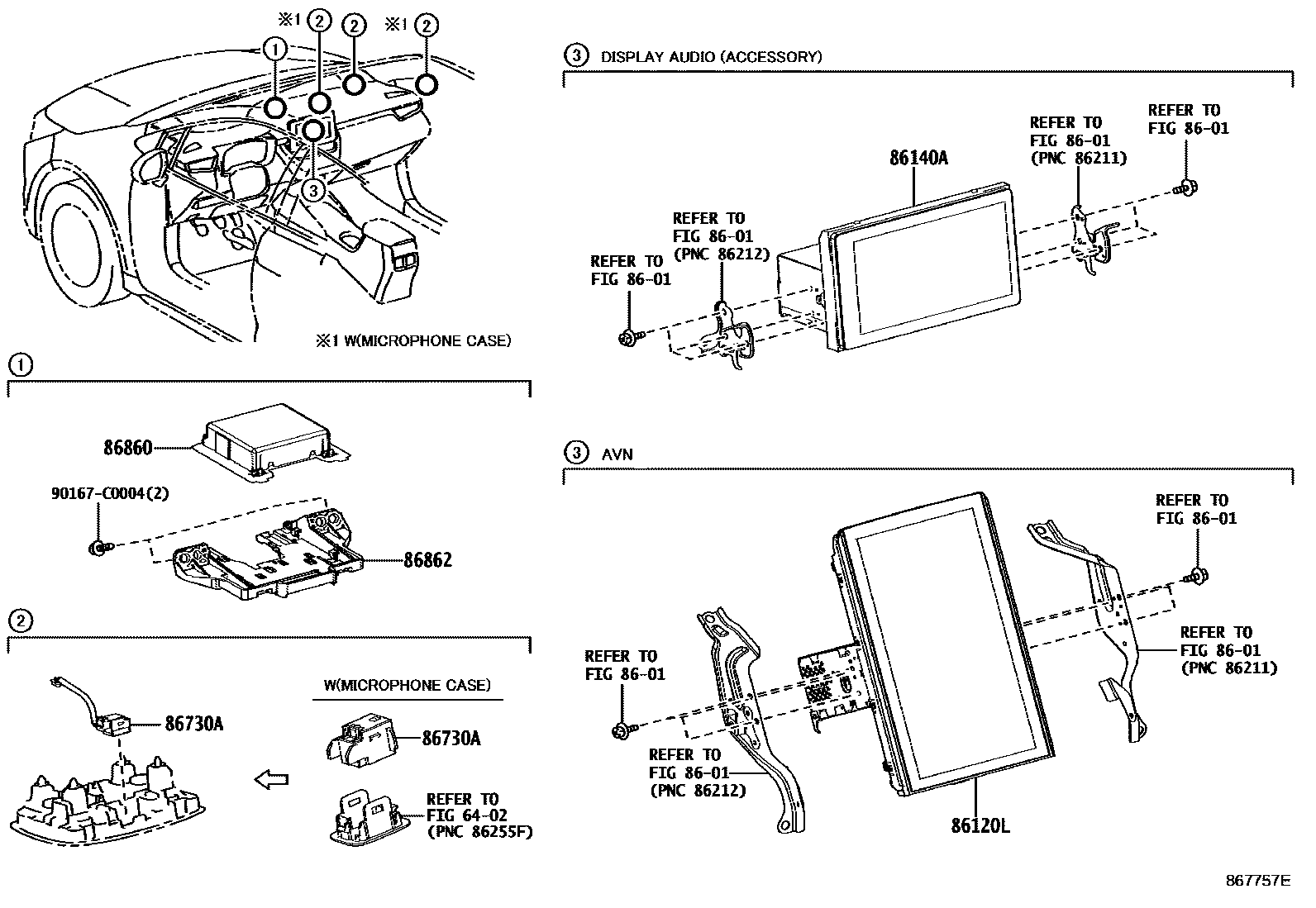

Parts diagram

6402ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-02

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main86140-02C00i201908-202006

DENSO TEN

main86140-02F10i202007-202101

DENSO TEN

main86140-02F11i202101-202106

DENSO TEN

main86140-02F12i202107-202111

DENSO TEN

main86140-02F13i202112-202204

DENSO TEN

main86140-02F14i202205-202212

DENSO TEN

main86140-02F15i202301-202304

DENSO TEN

main86140-02F20i202007-202101

DENSO TEN

main86140-02F21i202101-202106

DENSO TEN

main86140-02F22i202107-202111

DENSO TEN

main86140-02F23i202112-202204

DENSO TEN

main86140-02F24i202205-202212

DENSO TEN

main86140-02F25i202301-202304

DENSO TEN

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-02551i202305-202306

DESAY

main86100-02552i202306

DESAY

main86100-02561i202305-202306

DESAY

main86100-02562i202306

DESAY

main86140-02F30supersedes 86140-02K80i202101-202111

DESAY

main86140-02K80i202111-202304

DESAY

main86140-02L71i202305-202307

HANGSHENG

main86140-02L72i202307

HANGSHENG

main86100-02780supersedes 86100-02783i202211-202305

DENSO TEN,AUDIO-RADIO & 2SPEAKER

main86140-YY100i201908-202007

DENSO TEN,AUDIO-*DA(ACCESSORY) & 6SPEAKER

86730AMICROPHONE ASSY, TELEPHONE

main86730-02090i201908-202006

main86730-0A010i202305

86860ANTENNA ASSY, NAVIGATION

main86880-02050i201908-202304

main86880-02100i202305

86862BRACKET, NAVIGATION ANTENNA

main86862-02040i202007-202304

main86862-0E030i202408

main86862-42010i202307-202408

90167C0004

main90167-C0004

8 parts on this diagram · 2 diagrams in section
