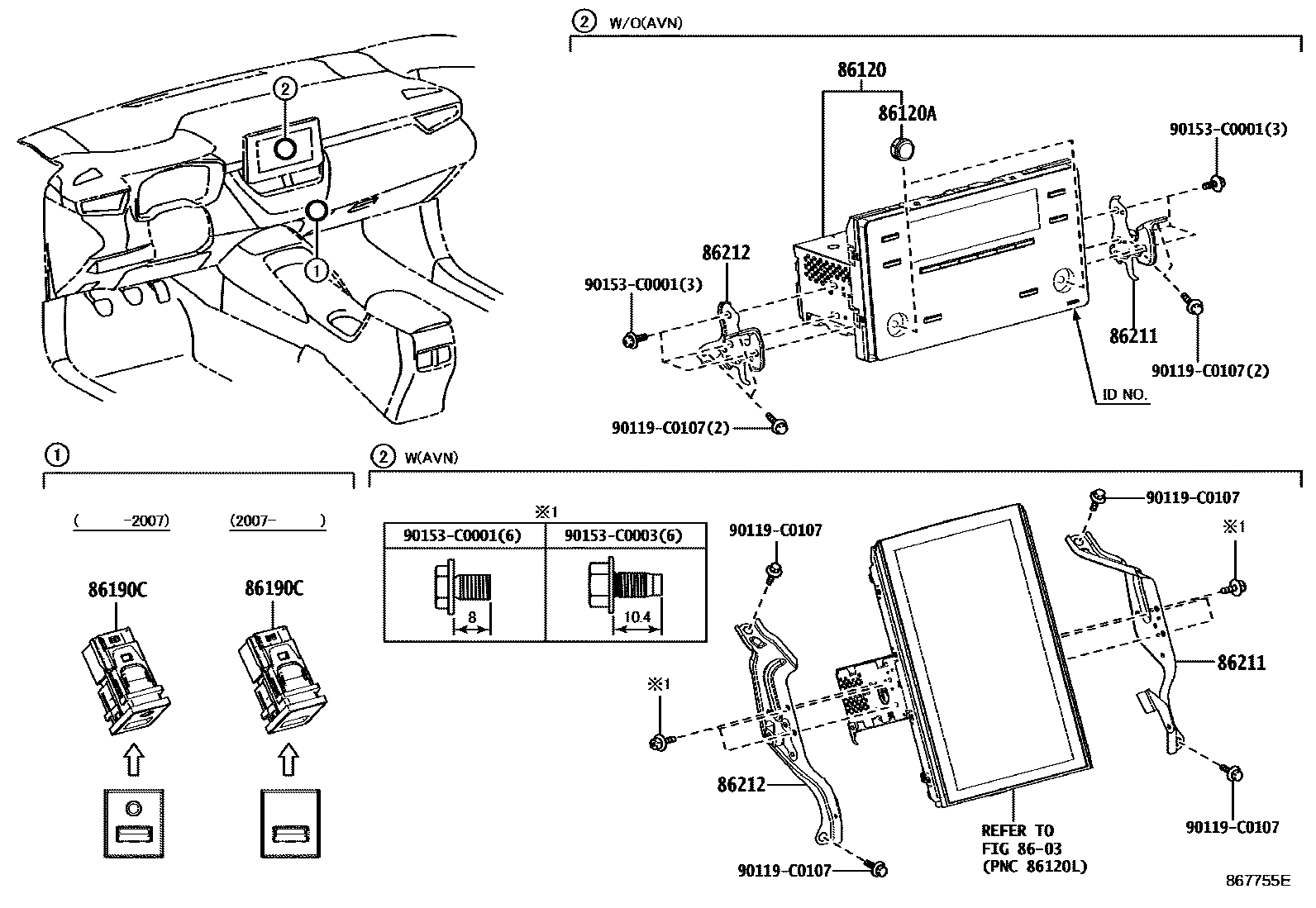

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86120RECEIVER ASSY, RADIO

main86120-02M20iNRE210,ZWE211..MID201908-202007

PANASONIC,ID=510429

86120AKNOB, RADIO RECEIVER SWITCH

main90011-25318×2iNRE210,ZWE211..ENTRY201908-202101

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-02120iMZEA17,ZWE219202305

main86190-06070iNRE210..HI201908-202006

main86190-12070iNRE210..HI;MZEA11,ZWE211..HI,MID202007-202304

main86190-0A010iMZEA11,ZWE211..MID202211-202304

AUDIO-RADIO & 2SPEAKER

86211BRACKET, RADIO, NO.1

main86211-02630iNRE210..ENTRY201908

main86211-02690iNRE210..HI202007-202304

main86211-02750iMZEA17,ZWE219202305-202312

main86211-02751iMZEA17,ZWE219202401

86212BRACKET, RADIO, NO.2

main86212-02630iNRE210..MID201908-202502

main86212-02690iNRE210..HI202007-202304

main86212-02740iMZEA17,ZWE219202305-202312

main86212-02741iMZEA17,ZWE219202401

90119C0107

main90119-C0107

90153C0001

main90153-C0001

90153C0003

main90153-C0003

9 parts on this diagram · 3 diagrams in section
