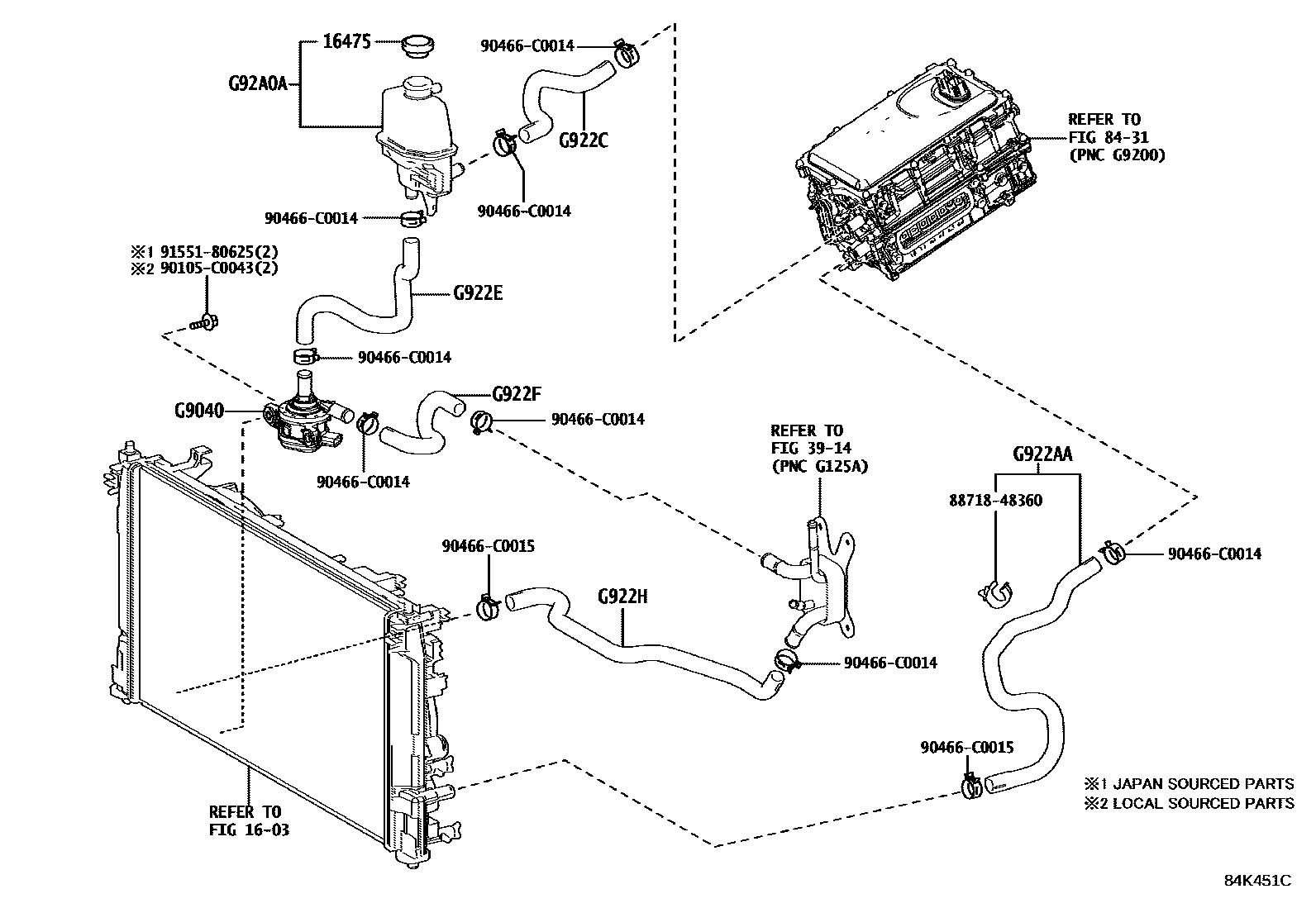

INVERTER COOLING

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16475CAP, RESERVE TANK

main16475-0T081i8ZRFXE..ZWE219202305

LOCAL SOURCED PARTS

main16475-28140i8ZRFXE..ZWE211202101-202304

JAPAN SOURCED PARTS

3914OIL COOLER & TUBE (HEV OR BEV OR FCEV)

→ Go to FIG 39-14

8431HEV INVERTER

→ Go to FIG 84-31

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904002030iZWE211202104-202304

LOCAL SOURCED PARTS

mainG904002050iZWE219202305

mainG904047040iZWE211201908-202104

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A02060iZWE211201908-202304

mainG922A02090iZWE219202305

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C02060iZWE211201908-202304

mainG922C02090iZWE219202305

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E02060iZWE211201908-202304

mainG922E02090iZWE219202305

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F02060iZWE211201908-202304

G922HHOSE, HYBRID RADIATOR INLET

mainG922H02060iZWE211201908-202304

mainG922H02090iZWE219202305

G92A0ATANK ASSY, INVERTER RESERVE

mainG910G02090iZWE211202101-202304

mainG910G02130iZWE219202305

mainG91H002110iZWE211201908-202012

8871848360PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48360

90105C0043

main90105-C0043

90466C0014

main90466-C0014

90466C0015

main90466-C0015

9155180625

main91551-80625

16 parts on this diagram · 2 diagrams in section
