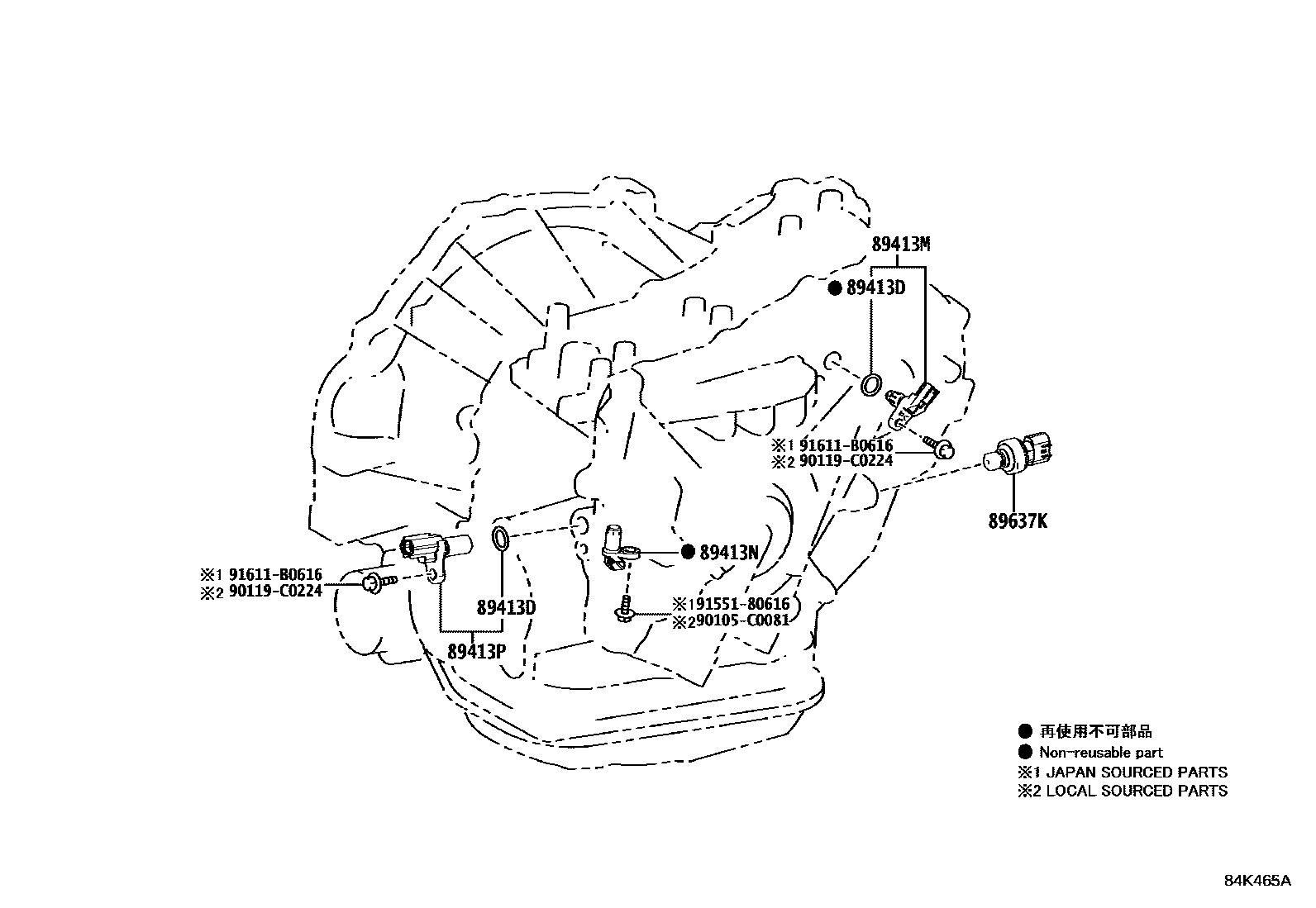

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1K313 0002 1K320,K321

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008×2iNRE210..ENTRY,MID201908-202104

89413MSENSOR, TRANSMISSION REVOLUTION, (NOUT)

main89413-02020iNRE210..HI201908-202006

TMCAP:REFER 34-01

main89413-12010iMZEA11..CVT202101-202304

main89413-12020iNRE210..ENTRY,MID201908

TMH:REFER 34-01

89413NSENSOR, TRANSMISSION REVOLUTION, (NT)

main89413-02010iNRE210..HI202007-202304

TMCAP:REFER 34-01

main89413-12010iMZEA11..CVT202101-202304

main89413-50020iNRE210..ENTRY,MID201908

TMH:REFER 34-01

89413PSENSOR, TRANSMISSION REVOLUTION, (NIN)

main89413-60021iNRE210..HI201908-202006

89637KSENSOR, OIL PRESSURE

main89637-12040iMZEA11..CVT202101-202304

main89637-63010iNRE210..HI202007-202304

90105C0081

main90105-C0081

90119C0224

main90119-C0224

9155180616

main91551-80616

91611B0616

main91611-B0616

9 parts on this diagram · 2 diagrams in section
