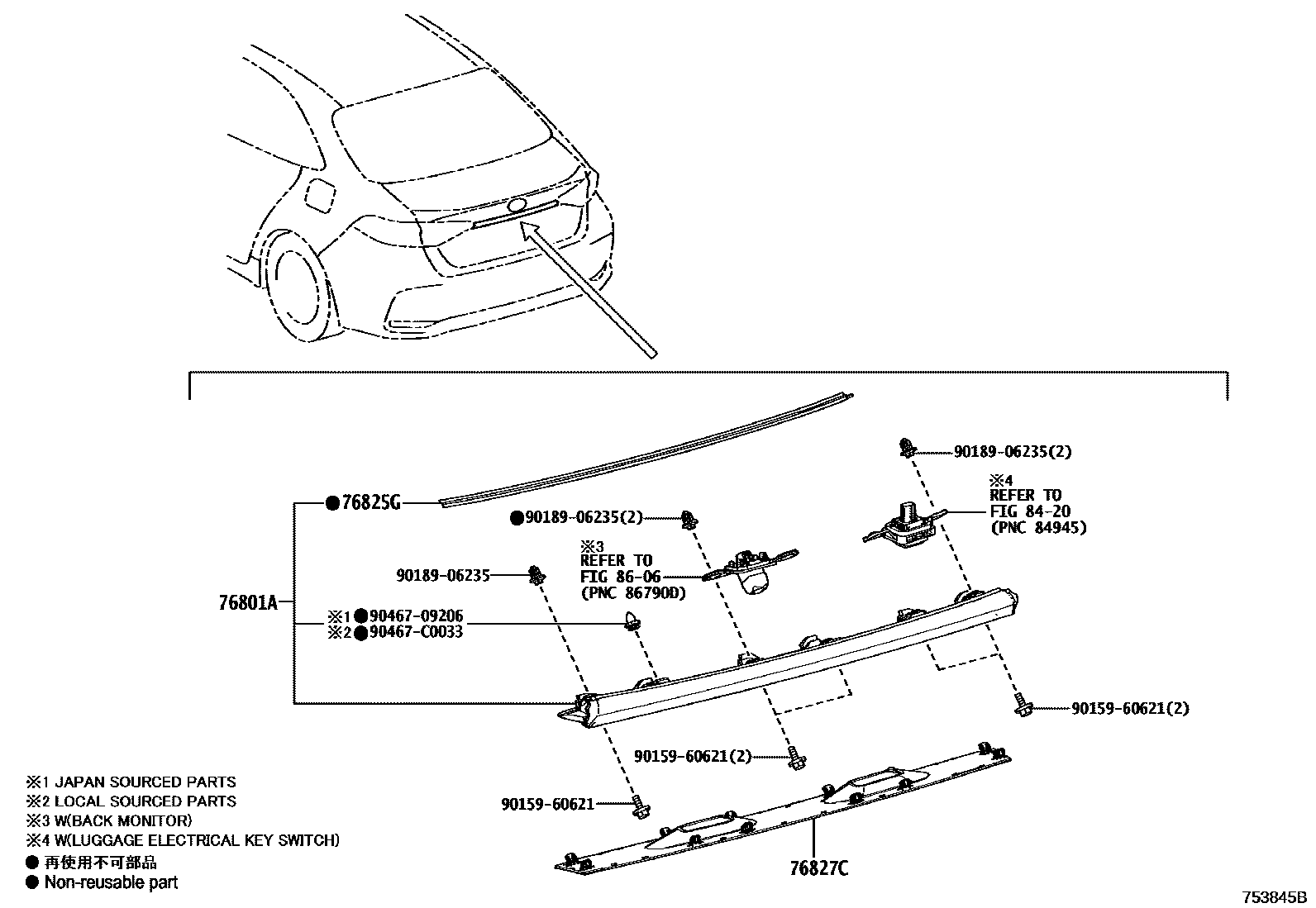

REAR MOULDING

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-02M00iNRE210..HI201908-202006

PLATED

main76801-02P20iMZEA17,ZWE219; NRE210..ENTRY,MID202305

PLATED

76825GPROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH, NO.2

main76825-02250iMZEA11,ZWE211201908-202304

main76825-02390iMZEA17,ZWE219; NRE210..ENTRY,MID202305

76827CRETAINER, LUGGAGE COMPARTMENT DOOR GARNISH, NO.2

main76827-02230supersedes 76827-02220iMZEA11..ENTRY; ZWE211..ENTRY201908-202304

SMART ENTRY-WITHOUT & WITH(PUSH START SWITCH)

main76827-02250supersedes 76827-02230iZWE211..HI;MZEA11..HI,MID201908-202304

main76827-02270iMZEA17..ENTRY202306

main76827-02280iZWE219..ENTRY202305

main76827-02290iMZEA17,ZWE219..HI,MID; NRE210..ENTRY,MID202305

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

9015960621

main90159-60621

9018906235

main90189-06235

9046709206

main90467-09206

90467C0033

main90467-C0033

9 parts on this diagram · 1 diagram in section
