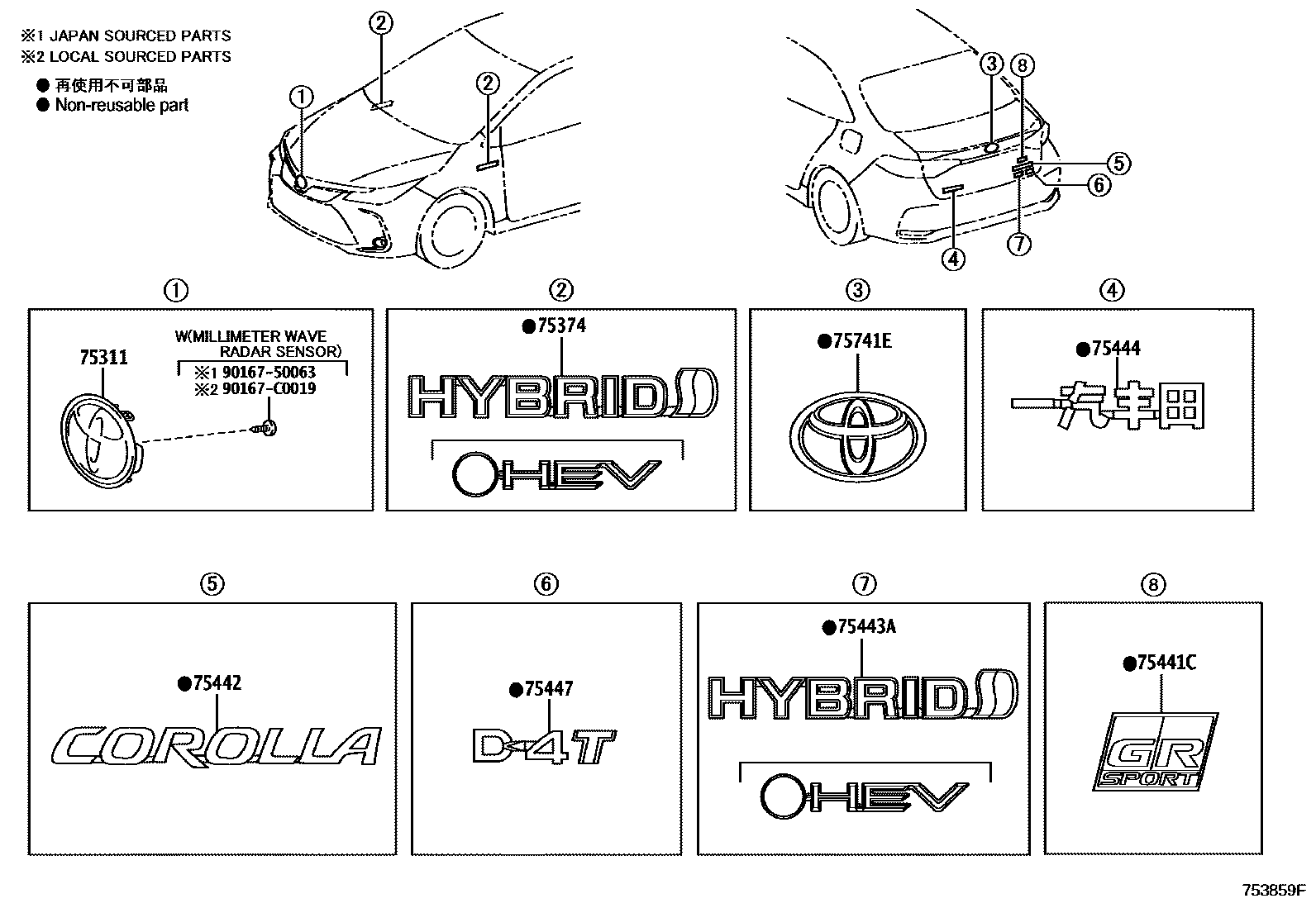

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-02120supersedes 75301-02270iNRE210..HI202007-202304

main53141-02130iZWE219202305-202406

main90975-02124iNRE210..ENTRY; NRE210..HI,MID201908-201912

ACTIVE SAFETY PACKAGE-WITH

main90975-02136iZWE211201908-201912

75374EMBLEM, SIDE PANEL

main75374-02190iZWE211201908-202304

RH

main75374-02200iZWE211201908-202304

LH

main75440-0E040×2iZWE219202406

RH & LH

75441CPLATE, BACK DOOR NAME

main75441-YK010iMZEA11..MID202110-202304

GR SPORT,GR SPORT

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-02590iNRE210..ENTRY,MID201908

COROLLA

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75440-02110iZWE219202406

HEV

main75443-02390iZWE219202305-202406

HYBRID

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75441-02430iNRE210..ENTRY,MID201908-202305

main75441-02491iMZEA17,ZWE219; NRE210..ENTRY,MID202305

75447PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.7

main75447-02510iNRE210..HI202007-202304

D4-T

75741EEMBLEM, SYMBOL

main75403-02080iZWE219202305-202406

main90975-C2006iNRE210..HI202007-202304

main75431-YK020iMZEA11..MID202110-202304

GR SPORT

9016750063

main90167-50063

90167C0019

main90167-C0019

10 parts on this diagram · 1 diagram in section
