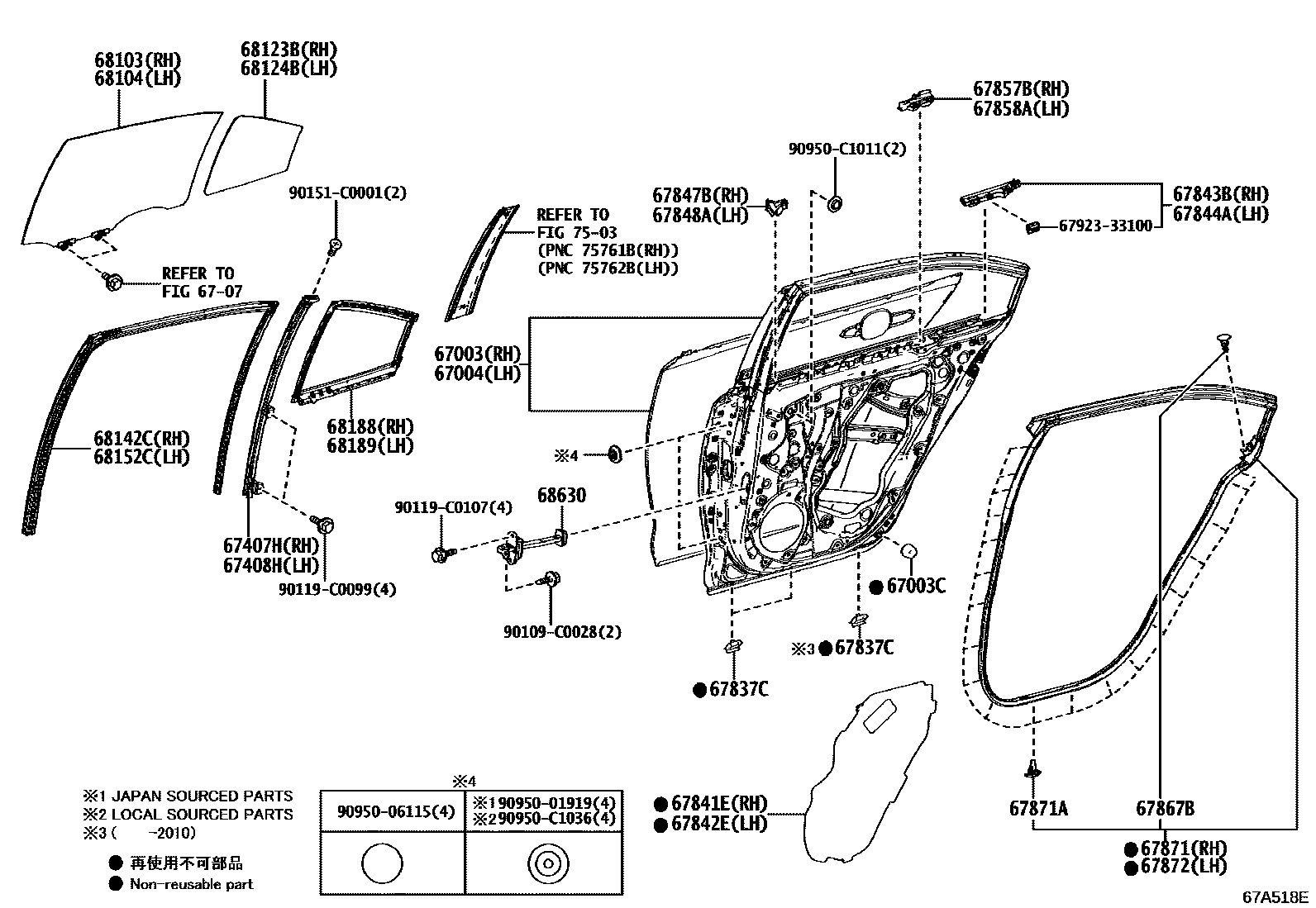

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-02620iNRE210..HI202007-202304

67003CCUSHION, REAR DOOR PANEL

main90541-09124×2iMZEA11,ZWE211201908-202304

(J)

main90541-C0003×2iNRE210..HI202007-202304

(L)

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-02630iMZEA11,ZWE211201908-202304

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH

main67407-02280iMZEA11,ZWE211201908-202304

67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH

main67408-02280iMZEA11,ZWE211201908-202304

67837CSEAL, REAR DOOR DUST PROOF

main67837-02150×6iNRE210..HI201908-202006

(L)

main67837-48050×4iMZEA17,ZWE219202305

(J)

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-02360iNRE210..ENTRY,MID201908

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-02480iMZEA11,ZWE211201908-202304

67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH

main67843-02090iNRE210..HI201908-202006

main67843-02110iNRE210..HI;MZEA11,ZWE211202104-202304

67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH

main67844-02090iNRE210..HI201908-202006

main67844-02110iNRE210..HI;MZEA11,ZWE211202104-202304

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-02170iNRE210..HI201908-202006

main67847-02180iNRE210..HI;MZEA11,ZWE211202104-202304

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-02110iNRE210..HI201908-202006

main67848-02120iNRE210..HI;MZEA11,ZWE211202104-202304

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-02180iNRE210..HI201908-202006

67858APROTECTOR, REAR DOOR PANEL, LH

main67858-02180iNRE210..HI201908-202006

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67868-30030×2iNRE210..HI201908-202006

67871WEATHERSTRIP, REAR DOOR, RH

main67871-02400iNRE210..HI201908-202006

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-12150×40iNRE210..HI201908-202006

67872WEATHERSTRIP, REAR DOOR, LH

main67872-02400iNRE210..HI201908-202006

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-02660iNRE210..HI201908-202006

main68103-02730iNRE210..ENTRY,MID202304

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-02660iNRE210..HI201908-202006

main68104-02730iMZEA17,ZWE219202305

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-02580iMZEA11,ZWE211;NRE210..ENTRY,MID201908-202304

main68123-02640iNRE210..ENTRY,MID202304

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-02580iNRE210..HI201908-202006

main68124-02640iNRE210..ENTRY,MID202304

68142CRUN, REAR DOOR GLASS, RH

main68142-02430iNRE210,ZWE211201908-201912

main68142-02431iNRE210..HI202001-202006

68152CRUN, REAR DOOR GLASS, LH

main68152-02430iNRE210,ZWE211201908-201912

main68152-02431iNRE210..HI202001-202006

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-02320iMZEA11,ZWE211201908-202304

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-02320iNRE210..HI201908-202006

68630CHECK ASSY, REAR DOOR

main68630-02430×2iNRE210..HI202007-202304

7503SIDE MOULDING

→ Go to FIG 75-03

6792333100CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-33100

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90119C0107

main90119-C0107

90151C0001

main90151-C0001

9095001919

main90950-01919

9095006115

main90950-06115

90950C1011

main90950-C1011

90950C1036

main90950-C1036

38 parts on this diagram · 2 diagrams in section
