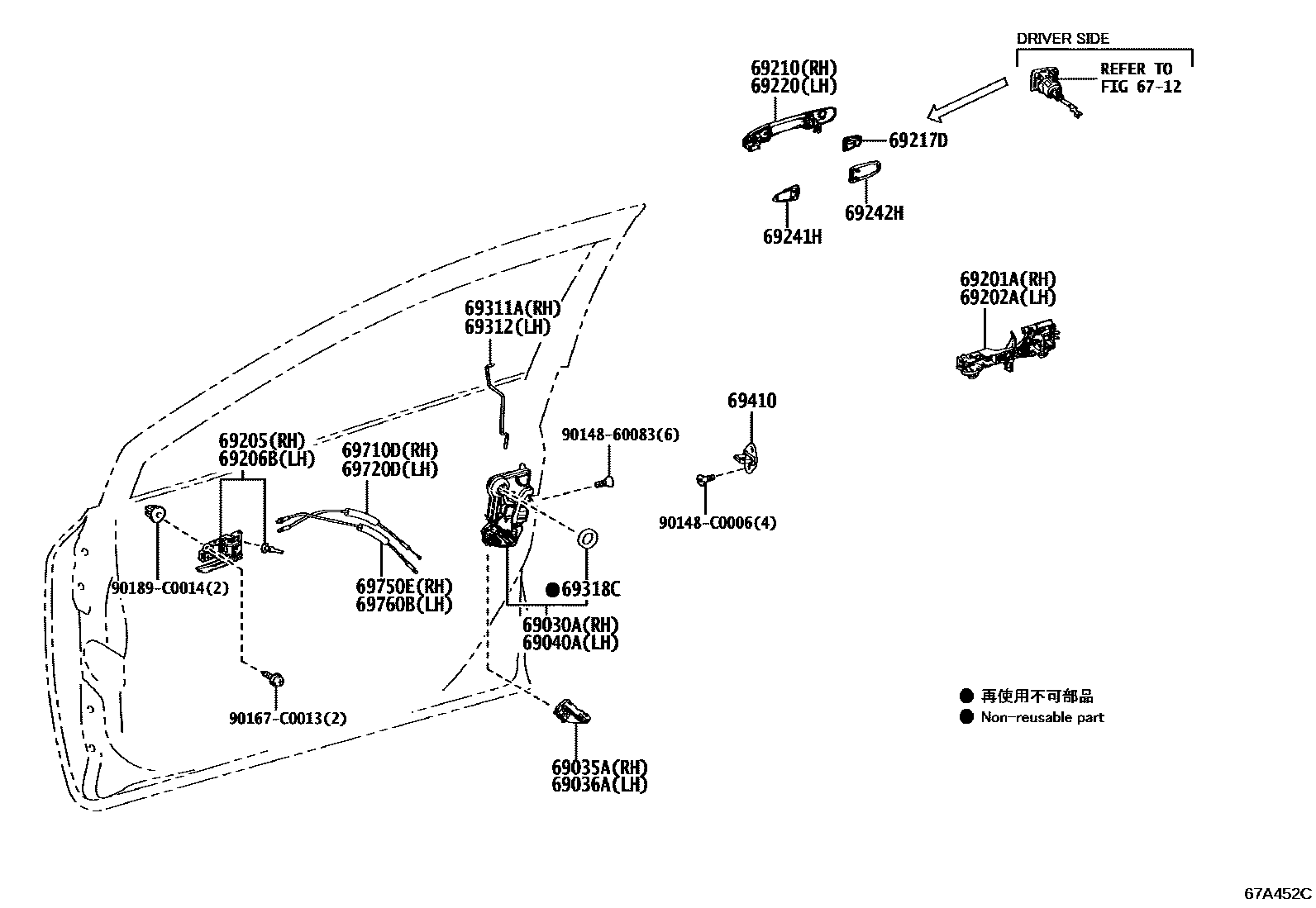

FRONT DOOR LOCK & HANDLE

6712

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-02620iNRE210..HI201908-202305

main69030-02680iNRE210..ENTRY,MID202305

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02060iNRE210..HI201908-202305

main69035-0R010iNRE210..ENTRY,MID202305

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02060iNRE210..HI201908-202305

main69036-0R010iNRE210..ENTRY,MID202305

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-02590iNRE210..HI201908-202305

main69040-02620iNRE210..ENTRY,MID202305

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-02430iNRE210..ENTRY,MID201908-202304

main69201-02440iMZEA11..MID201908-202304

LEATHER PACKAGE

main69201-02440iNRE210..HI201908-202304

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-02350iNRE210..ENTRY,MID201908-202304

main69202-02360iNRE210..HI201908-202304

main69202-02360iMZEA11..HI;ZWE211..HI,MID201908-202304

LEATHER PACKAGE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-02480-A0iNRE210..HI201908-202305

FROMAGE,TRIM0#

main69205-02480-C0iNRE210..ENTRY,MID201908-202304

BLACK,TRIM2#

main69205-02480-E1iZWE219;MZEA17..HI,MID202305

TAUPE,TRIM4#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-02460-A0iMZEA11,ZWE211201908-202305

FROMAGE,TRIM0#

main69206-02460-C0iNRE210..ENTRY,MID201908-202304

BLACK,TRIM2#

main69206-02460-E1iZWE219;MZEA17..HI,MID202305

TAUPE,TRIM4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-02450-A0iNRE210..HI201908-202304

SUPER WHITE 2,040

main69210-02450-A0iMZEA11..MID201908-202304

LEATHER PACKAGE,SUPER WHITE 2,040

main69210-02450-A1iMZEA11,NRE210..MID201908-202111

WHITE PEARL CS.,070

main69210-02450-A1iMZEA11..HI;ZWE211..HI,MID201908-202111

LEATHER PACKAGE,WHITE PEARL CS.,070

main69210-02450-A2iZWE211..HI,MID;MZEA11,NRE210..HI202111-202304

PLATINUM WHITE PEARL MC.,089

main69210-02450-A2iMZEA11..MID202111-202304

LEATHER PACKAGE,PLATINUM WHITE PEARL MC.,089

main69210-02450-B0iMZEA11..HI;ZWE211..HI,MID201908-202304

LEATHER PACKAGE,SILVER ME.,1F7

main69210-02450-B0iNRE210..HI201908-202304

SILVER ME.,1F7

main69210-02450-B1iZWE211..HI,MID201908-202304

CELESTITE GRAY ME.,1K3

main69210-02450-C0iMZEA11..HI;ZWE211..HI,MID201908-202304

BLACK MC.,209

main69210-02450-C0iMZEA11..HI;ZWE211..HI,MID201908-202304

LEATHER PACKAGE,BLACK MC.,209

main69210-02450-D0iMZEA11..HI;ZWE211..HI,MID201908-202304

LEATHER PACKAGE,SCARLET ME.,3U4

main69210-02450-D0iMZEA11..MID201908-202304

SCARLET ME.,3U4

main69210-02450-E0iNRE210..HI201908-202304

AVANT-GARDE BRONZE ME.,4V8

main69210-02450-E0iMZEA11..HI;ZWE211..HI,MID201908-202304

LEATHER PACKAGE,AVANT-GARDE BRONZE ME.,4V8

main69210-02450-E1iNRE210..MID201908-202004

SILKY BEIGE ME.,4W1

main69210-02450-E1iNRE210..MID201908-202004

LEATHER PACKAGE,SILKY BEIGE ME.,4W1

main69210-02500-A0iZWE219..HI202305

SUPER WHITE 2,040

main69210-02500-A1iZWE219..HI202305

PLATINUM WHITE PEARL MC.,089

main69210-02500-B0iZWE219..HI202305

CELESTITE GRAY ME.,1K3

main69210-02500-B1iZWE219..HI202305

SILVER ME.,1L0

main69210-02500-C0iZWE219..HI202305

BLACK MC.,209

main69210-02500-D0iZWE219..HI202305

RED M.M.,3R3

main69210-02500-E0iZWE219..HI202305

AVANT-GARDE BRONZE ME.,4V8

main69210-0A100-A0iZWE219..MID;MZEA17..HI,MID202305

PLATINUM WHITE PEARL MC.,089

main69210-0A100-A1iZWE219..MID;MZEA17..HI,MID202305

SUPER WHITE 2,040

main69210-0A100-B1iZWE219..MID;MZEA17..HI,MID202305

SILVER ME.,1L0

main69210-0A100-B3iZWE219..MID202305

CELESTITE GRAY ME.,1K3

main69210-0A100-C0iZWE219..MID;MZEA17..HI,MID202305

BLACK MC.,209

main69210-0A100-D1iZWE219..MID;MZEA17..HI,MID202305

RED M.M.,3R3

main69210-0A100-E1iZWE219..MID;MZEA17..HI,MID202305

AVANT-GARDE BRONZE ME.,4V8

main69211-07020-A0iZWE211..ENTRY;MZEA11,NRE210..ENTRY,MID201908-202111

WHITE PEARL CS.,070

main69211-07020-A1iNRE210..ENTRY,MID201908-202304

SUPER WHITE 2,040

main69211-07020-A2iNRE210..ENTRY,MID202111-202304

PLATINUM WHITE PEARL MC.,089

main69211-07020-B1iNRE210..ENTRY,MID201908-202305

SILVER ME.,1F7

main69211-07020-B2iZWE219..ENTRY201908-202304

CELESTITE GRAY ME.,1K3

main69211-07020-B3iMZEA17,ZWE219..ENTRY202305

SILVER ME.,1L0

main69211-07020-C0iZWE211..ENTRY;MZEA11..ENTRY,MID201908-202304

BLACK MC.,209

main69211-07020-D1iNRE210..ENTRY,MID201908-202305

SCARLET ME.,3U4

main69211-07020-D2iNRE210..ENTRY,MID202305

RED M.M.,3R3

main69211-07020-E2iZWE211..ENTRY;MZEA11..ENTRY,MID201908-202304

AVANT-GARDE BRONZE ME.,4V8

main69211-07020-E4iZWE211..ENTRY;NRE210..ENTRY,MID201908-202004

SILKY BEIGE ME.,4W1

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-02510iMZEA11..HI;ZWE211..HI,MID201908-202304

LEATHER PACKAGE

main69217-02510iNRE210..HI201908-202304

main69217-07040iZWE211..ENTRY;MZEA11..ENTRY,MID201908-202304

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-02490-A0iZWE219..HI202305

SUPER WHITE 2,040

main69210-02490-A1iZWE219..HI202305

PLATINUM WHITE PEARL MC.,089

main69210-02490-B0iZWE219..HI202305

CELESTITE GRAY ME.,1K3

main69210-02490-B1iZWE219..HI202305

SILVER ME.,1L0

main69210-02490-C0iZWE219..HI202305

BLACK MC.,209

main69210-02490-D0iZWE219..HI202305

RED M.M.,3R3

main69210-02490-E0iZWE219..HI202305

AVANT-GARDE BRONZE ME.,4V8

main69210-07040-A0iMZEA11..HI;ZWE211..HI,MID201908-202111

LEATHER PACKAGE,WHITE PEARL CS.,070

main69210-07040-A0iNRE210..HI201908-202111

WHITE PEARL CS.,070

main69210-07040-A1iMZEA11..HI;ZWE211..HI,MID201908-202304

LEATHER PACKAGE,SUPER WHITE 2,040

main69210-07040-A1iNRE210..HI201908-202304

SUPER WHITE 2,040

main69210-07040-A2iMZEA11..MID202111-202304

PLATINUM WHITE PEARL MC.,089

main69210-07040-A2iMZEA11..MID202111-202304

LEATHER PACKAGE,PLATINUM WHITE PEARL MC.,089

main69210-07040-B1iMZEA11..MID201908-202304

SILVER ME.,1F7

main69210-07040-B1iMZEA11..MID201908-202304

LEATHER PACKAGE,SILVER ME.,1F7

main69210-07040-B2iZWE211..HI,MID201908-202304

CELESTITE GRAY ME.,1K3

main69210-07040-C0iNRE210..HI201908-202304

BLACK MC.,209

main69210-07040-C0iMZEA11..MID201908-202304

LEATHER PACKAGE,BLACK MC.,209

main69210-07040-D1iNRE210..HI201908-202304

SCARLET ME.,3U4

main69210-07040-D1iMZEA11..HI;ZWE211..HI,MID201908-202304

LEATHER PACKAGE,SCARLET ME.,3U4

main69210-07040-E2iNRE210..HI201908-202304

AVANT-GARDE BRONZE ME.,4V8

main69210-07040-E2iMZEA11..HI;ZWE211..HI,MID201908-202304

LEATHER PACKAGE,AVANT-GARDE BRONZE ME.,4V8

main69210-07040-E4iNRE210..MID201908-202004

LEATHER PACKAGE,SILKY BEIGE ME.,4W1

main69210-07040-E4iNRE210..MID201908-202004

SILKY BEIGE ME.,4W1

main69210-0A090-A0iZWE219..MID;MZEA17..HI,MID202305

PLATINUM WHITE PEARL MC.,089

main69210-0A090-A1iZWE219..MID;MZEA17..HI,MID202305

SUPER WHITE 2,040

main69210-0A090-B1iZWE219..MID;MZEA17..HI,MID202305

SILVER ME.,1L0

main69210-0A090-B3iZWE219..MID202305

CELESTITE GRAY ME.,1K3

main69210-0A090-C0iZWE219..MID;MZEA17..HI,MID202305

BLACK MC.,209

main69210-0A090-D1iZWE219..MID;MZEA17..HI,MID202305

RED M.M.,3R3

main69210-0A090-E1iZWE219..MID;MZEA17..HI,MID202305

AVANT-GARDE BRONZE ME.,4V8

main69211-02490-A0iMZEA17,ZWE219..ENTRY201908-202304

SUPER WHITE 2,040

main69211-02490-A1iZWE211..ENTRY;MZEA11,NRE210..ENTRY,MID201908-202111

WHITE PEARL CS.,070

main69211-02490-A2iZWE211..ENTRY;MZEA11..ENTRY,MID202111-202304

PLATINUM WHITE PEARL MC.,089

main69211-02490-B0iZWE211..ENTRY;MZEA11..ENTRY,MID201908-202305

SILVER ME.,1F7

main69211-02490-B1iZWE211..ENTRY201908-202304

CELESTITE GRAY ME.,1K3

main69211-02490-B3iNRE210..ENTRY,MID202305

SILVER ME.,1L0

main69211-02490-C0iNRE210..ENTRY,MID201908-202304

BLACK MC.,209

main69211-02490-D0iZWE211..ENTRY;MZEA11..ENTRY,MID201908-202305

SCARLET ME.,3U4

main69211-02490-D2iMZEA17,ZWE219..ENTRY202305

RED M.M.,3R3

main69211-02490-E0iMZEA17,ZWE219..ENTRY201908-202304

AVANT-GARDE BRONZE ME.,4V8

main69211-02490-E1iZWE211..ENTRY;NRE210..ENTRY,MID201908-202004

SILKY BEIGE ME.,4W1

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-07020iNRE210..ENTRY,MID201908-202304

69242HPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-07020iNRE210..HI201908-202304

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-02410iNRE210..HI201908-202304

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-02410iNRE210..HI201908-202304

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iMZEA17,ZWE219201908-202304

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0D020iNRE210..HI201908-202304

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-02420iNRE210..HI201908-202305

main69710-02460iNRE210..ENTRY,MID202305

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-02420iNRE210..HI201908-202305

main69710-02460iNRE210..ENTRY,MID202305

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-02450iNRE210..HI201908-202305

main69750-02490iNRE210..ENTRY,MID202305

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-02450iNRE210..HI201908-202305

main69750-02490iNRE210..ENTRY,MID202305

9014860083

main90148-60083

90148C0006

main90148-C0006

90167C0013

main90167-C0013

90189C0014

main90189-C0014

26 parts on this diagram · 1 diagram in section
