INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111CBOARD, COWL SIDE TRIM, RH

main62111-02470-C0iMZEA11,ZWE211201908-202304

BLACK,TRIM0#,2#

main62111-02470-C0iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#,4#

main62111-02470-C0iMZEA17..ENTRY202306

BLACK,TRIM2#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62112-02470-C0iNRE210..HI201908-202304

BLACK,TRIM0#,2#

main62112-02470-C0iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#,4#

main62112-02470-C0iMZEA17..ENTRY202306

BLACK,TRIM2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iNRE210..HI201908-202304

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-C0035iNRE210..HI201908-202304

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-02400iNRE210..ENTRY201908-202502

main62170-02410iMZEA11,ZWE211..HI,MID201908-202502

main62170-02490iMZEA17,ZWE219202305

62170BBOLT, W/WASHER

main90119-C0107iNRE210..HI201908-202304

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-02380iNRE210..ENTRY201908-202502

main62180-02390iMZEA11,ZWE211..HI,MID201908-202502

main62180-02490iMZEA17,ZWE219202305

62211UGARNISH ASSY, FRONT PILLAR, RH

main62210-02510-A0iNRE210..HI201908-202502

FROMAGE,TRIM0#,2#

main62210-02510-B0iZWE219;MZEA17..HI,MID202305

LT.GRAY,TRIM2#,4#

main62210-02510-B0iMZEA17..ENTRY202306

LT.GRAY,TRIM2#

62212BGARNISH ASSY, FRONT PILLAR, LH

main62220-02510-A0iNRE210..HI201908-202502

FROMAGE,TRIM0#,2#

main62220-02510-B0iZWE219;MZEA17..HI,MID202305

LT.GRAY,TRIM2#,4#

main62220-02510-B0iMZEA17..ENTRY202306

LT.GRAY,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-42050iNRE210..HI201908-202304

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-02400iNRE210..HI201908-202304

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-02410iNRE210..HI201908-202304

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-02440iNRE210..HI201908-202304

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-02440iNRE210..HI201908-202304

62410AGARNISH ASSY, CENTER PILLAR, RH

main62410-02390-C0iNRE210..HI201908-202304

BLACK,TRIM0#,2#

main62410-02390-C0iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#,4#

main62410-02390-C0iMZEA17..ENTRY202306

BLACK,TRIM2#

62410BCLIP

main90467-C0046iNRE210..HI201908-202304

62411HCLIP

main90467-C0036iNRE210..HI201908-202304

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-02430-C0iNRE210..HI201908-202304

BLACK,TRIM0#,2#

main62413-02430-C0iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#,4#

main62413-02430-C0iMZEA17..ENTRY202306

BLACK,TRIM2#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-02430-C0iNRE210..HI201908-202304

BLACK,TRIM0#,2#

main62414-02430-C0iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#,4#

main62414-02430-C0iMZEA17..ENTRY202306

BLACK,TRIM2#

62420AGARNISH ASSY, CENTER PILLER, LH

main62420-02390-C0iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#,4#

main62420-02390-C0iNRE210..HI201908-202304

BLACK,TRIM0#,2#

main62420-02390-C0iMZEA17..ENTRY202306

BLACK,TRIM2#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-02770-A0iMZEA11,ZWE211201908-202502

FROMAGE,TRIM0#,2#

main62470-02770-B0iZWE219;MZEA17..HI,MID202305

LT.GRAY,TRIM2#,4#

main62470-02770-B0iMZEA17..ENTRY202306

LT.GRAY,TRIM2#

62471MCLIP

main90467-C0035iNRE210..HI201908-202304

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-02770-A0iNRE210..HI201908-202502

FROMAGE,TRIM0#,2#

main62480-02770-B0iZWE219;MZEA17..HI,MID202305

LT.GRAY,TRIM2#,4#

main62480-02770-B0iMZEA17..ENTRY202306

LT.GRAY,TRIM2#

62489ACLIP, ROOF SIDE INNER GARNISH

main62489-28010iNRE210..HI201908-202502

62489BCLIP, ROOF SIDE INNER GARNISH

main90467-C0034iNRE210..HI201908-202304

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main62217-13010iNRE210..HI201908-202304

62551FGARNISH, REAR SEAT SIDE, RH

main62551-02810-C0iNRE210..HI201908-202304

BLACK,TRIM0#,2#

main62551-02810-C0iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#,4#

main62551-02810-C0iMZEA17..ENTRY202306

BLACK,TRIM2#

62551GCLIP

main90467-A0033iNRE210..HI201908-202411

62552FGARNISH, REAR SEAT SIDE, LH

main62552-02A10-C0iNRE210..HI201908-202304

BLACK,TRIM0#,2#

main62552-02A10-C0iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#,4#

main62552-02A10-C0iMZEA17..ENTRY202306

BLACK,TRIM2#

62597DCLIP

main90467-18017iMZEA11,ZWE211201908-202502

62638BCLIP

main90467-C0036iNRE210..HI201908-202304

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-02450-C0iMZEA17..ENTRY202306

BLACK,TRIM2#

main67913-02450-C0iNRE210..ENTRY,MID201908-202304

BLACK,TRIM0#,2#

main67913-02450-C0iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#,4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-02450-C0iNRE210..HI201908-202304

BLACK,TRIM0#,2#

main67914-02450-C0iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#,4#

main67914-02450-C0iMZEA17..ENTRY202306

BLACK,TRIM2#

67917APLATE, REAR DOOR SCUFF, RH

main67917-02570-C0iMZEA17..ENTRY202306

BLACK,TRIM2#,4#

main67917-02570-C0iNRE210..HI201908-202304

BLACK,TRIM0#,2#

main67917-02570-C0iMZEA17..ENTRY202306

BLACK,TRIM2#

main67917-02580-C0iZWE211201908-202304

BLACK,TRIM0#,2#

main67917-02580-C0iZWE219202305

BLACK,TRIM2#,4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-02590-C0iNRE210..HI201908-202304

BLACK,TRIM0#,2#

main67918-02590-C0iMZEA17..ENTRY202306

BLACK,TRIM2#,4#

main67918-02590-C0iMZEA17..HI,MID202306

BLACK,TRIM2#

main67918-02600-C0iZWE219202305

BLACK,TRIM2#,4#

main67918-02600-C0iZWE211201908-202304

BLACK,TRIM0#,2#

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-20090iMZEA11,ZWE211201908-202304

7104

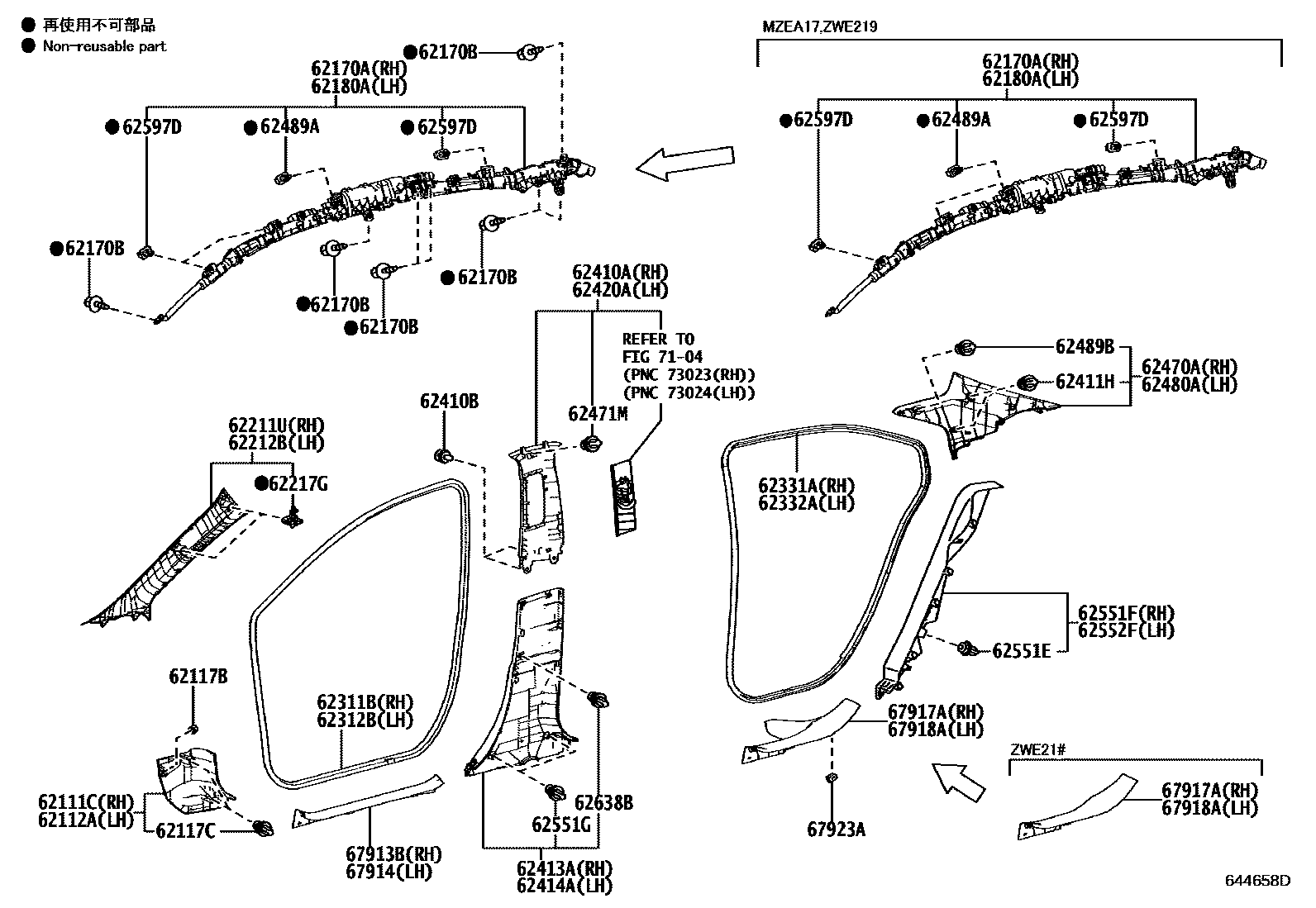

37 parts on this diagram · 1 diagram in section
