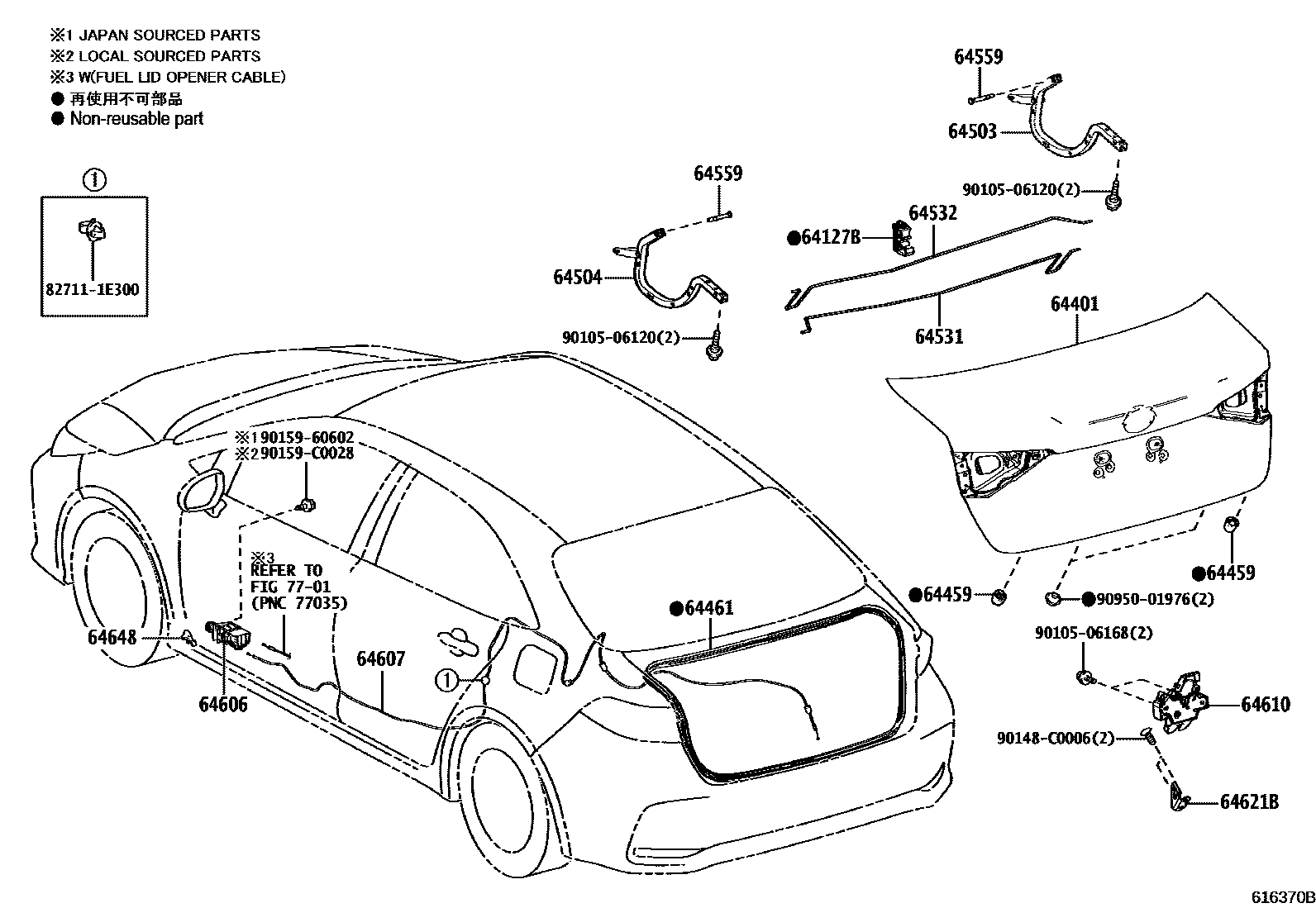

LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-33071iMZEA11,ZWE211201908-202304

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-02G61iMZEA17..ENTRY202306

main64401-02J40supersedes 64401-02J51iNRE210..ENTRY; NRE210..MID;ZWE211..ENTRY,MID201908-202007

SMART ENTRY-WITHOUT & WITH(PUSH START SWITCH)

main64401-02J41supersedes 64401-02G61iZWE219..ENTRY202305

main64401-02J50iNRE210,ZWE211..MID; ZWE211..HI201908-202007

AUDIO-*DA(ACCESSORY) & 6SPEAKER

main64401-02J51iMZEA17,ZWE219..HI,MID; NRE210..ENTRY202305

main64401-02K20supersedes 64401-02J51iNRE210..MID201908-202007

SPORT PACKAGE&AUDIO-*DA(ACCESSORY) & 6SPEAKER

main64401-02K21iMZEA17..MID202306

SPORT PACKAGE

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09069×2iMZEA17,ZWE219202305

(J)

main90541-C0009×2iNRE210..HI202007-202304

(L)

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-02370iNRE210..HI201908-202006

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-02290iNRE210..ENTRY,MID201908

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-02290iNRE210..HI202007-202304

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-02770iNRE210..HI202007-202304

main64531-02420iMZEA17..MID202306

SPORT PACKAGE

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-02770iNRE210..HI201908-202006

main64532-02420iNRE210..MID201908-202305

SPORT PACKAGE

64559PIN, LUGGAGE DOOR HINGE

main64559-12040×2iNRE210..HI201908-202006

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-02190iZWE211201908-202304

main64606-02200iMZEA11201908-202304

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-02570iNRE210..HI201908-202006

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-02121iNRE210..HI201908-202006

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-0D040iNRE210..HI201908-202006

64648GROMMET, LUGGAGE DOOR LOCK OPENER

main64648-02020iNRE210..HI201908-202006

7701FUEL TANK & TUBE

→ Go to FIG 77-01

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

9010506120

main90105-06120

9010506168

main90105-06168

90148C0006

main90148-C0006

9015960602

main90159-60602

90159C0028

main90159-C0028

9095001976

main90950-01976

22 parts on this diagram · 1 diagram in section
