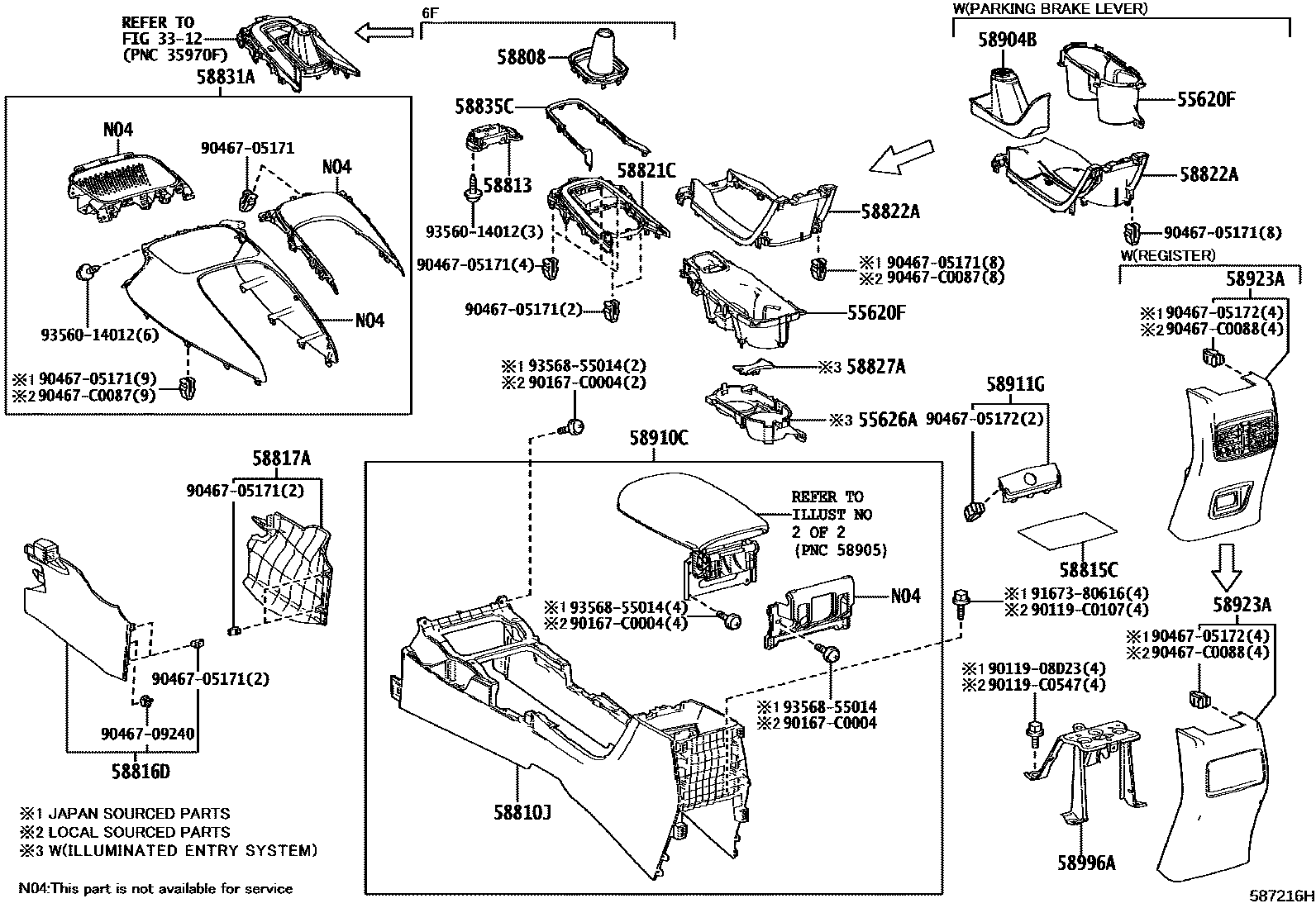

CONSOLE BOX & BRACKET

0001 1 0002 1CONSOLE COMPARTMENT DOOR 0003 1CONSOLE COMPARTMENT DOOR,SLID

3312

55620FHOLDER ASSY, CONSOLE BOX CUP

main55620-02380iMZEA11;ZWE211..ENTRY,MID201908-202305

main55620-02390iZWE211..HI201908-202304

main55620-02480iNRE210..ENTRY201908-202007

main55620-02610iNRE210..ENTRY,MID202305

55626ARETAINER, INSTRUMENT PANEL UNDER TRAY WALL

main55626-02260iZWE211..HI201908-202304

main55626-02270iNRE210..ENTRY,MID202305

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-02690-C0iMZEA11..6F202101-202304

BLACK,TRIM0#,2#

58810JBOX ASSY, CONSOLE

main58810-02110iMZEA11,ZWE211..ENTRY,MID202301-202304

main58810-02110-C0iNRE210..HI201908-202304

BLACK,TRIM0#,2#

main58810-02110-C0iNRE210..ENTRY,MID202301

BLACK,TRIM2#

main58810-02130-C0iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#,4#

main58810-02130-C0iMZEA17..ENTRY202306

BLACK,TRIM2#

58813BOX, CONSOLE, UPPER

main58813-02270iMZEA11..6F202101-202304

58815CCARPET, CONSOLE BOX

main58815-02490iMZEA17,ZWE219202305

main58815-02510iMZEA11,ZWE211..HI201908-202304

main58815-02510iMZEA11..MID202301-202304

GR SPORT

main58815-02510iMZEA11..MID202301-202304

LEATHER PACKAGE

main58815-02510iMZEA11..MID202301-202304

LADY PACKAGE

58816DINSERT, CONSOLE BOX, FRONT NO.1

main58816-02470-C0iNRE210..HI201908-202304

BLACK,TRIM0#,2#

main58816-02470-C0iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#,4#

main58816-02470-C0iMZEA17..ENTRY202306

BLACK,TRIM2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-02480-C0iMZEA11,ZWE211201908-202304

BLACK,TRIM0#,2#

main58817-02480-C0iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#,4#

main58817-02480-C0iMZEA17..ENTRY202306

BLACK,TRIM2#

58821CPANEL, CONSOLE, UPPER

main58821-02B00iMZEA11..6F202101-202304

58822APANEL, CONSOLE, UPPER REAR

main58822-02520iNRE210..ENTRY,MID202305

main58822-02530iNRE210..HI201908-202305

main58822-02550iNRE210..ENTRY201908-202007

58827AGARNISH, CONSOLE BOX POCKET

main58827-02110iZWE211..HI202108-202304

main58827-02280iZWE219..HI202305

main58827-12020iZWE211..HI201908-202107

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-02450-C0iNRE210..HI201908-202305

ORCHID BROWN,TRIM0#

main58831-02450-C1iMZEA17;ZWE219..ENTRY,MID201908-202304

BLACK,TRIM2#

main58831-02450-C2iMZEA17..HI,MID;ZWE219..ENTRY,MID202305

BLACK/TAUPE,TRIM4#

main58831-02460-C0iZWE211..HI201908-202304

ORCHID BROWN,TRIM0#

main58831-02460-C1iZWE211..HI201908-202304

BLACK,TRIM2#

main58831-02460-C2iZWE219..HI202305

BLACK/TAUPE,TRIM4#

58835CORNAMENT, CONSOLE BOX

main58835-02080-B0iMZEA11..6F202101-202304

SILVER,TRIM0#,2#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-02440-C0iNRE210..ENTRY201908-202007

BLACK,TRIM0#,2#

58910CBOX ASSY, CONSOLE, REAR

main58910-02850-C2iMZEA17..MID;ZWE219..ENTRY,MID202305

BLACK,TRIM4#

main58910-02850-C3iMZEA17,ZWE219..ENTRY,MID202305

BLACK,TRIM2#

main58910-02B10-C1iMZEA17,ZWE219..HI202305

BLACK,TRIM2#

main58910-02B10-C2iMZEA17,ZWE219..HI202305

BLACK,TRIM4#

main58910-02B70-C0iMZEA11,NRE210,ZWE211..ENTRY,MID201908-202212

BLACK,TRIM0#

main58910-02B70-C1iMZEA11,NRE210,ZWE211..ENTRY,MID201908-202212

ORCHID BROWN,TRIM2#

main58910-02B71iMZEA11,ZWE211..ENTRY,MID202301-202304

main58910-02B71-C1iNRE210..ENTRY,MID202301-202502

BLACK,TRIM2#

main58910-02B80-C0iMZEA11,ZWE211..HI201908-202301

LEATHER PACKAGE,BLACK,TRIM2#

main58910-02B80-C0iNRE210..MID201908-202301

BLACK,TRIM2#

main58910-02B80-C1iMZEA11,ZWE211..HI201908-202301

LEATHER PACKAGE,ORCHID BROWN,TRIM0#

main58910-02B80-C1iNRE210..HI201908-202301

ORCHID BROWN,TRIM0#

main58910-02B81iNRE210..HI202301-202304

main58910-02B81-C0iMZEA11..MID202301-202304

BLACK,TRIM2#

main58910-02B81-C0iMZEA11,ZWE211..HI202301-202304

LEATHER PACKAGE,BLACK,TRIM20

main58910-02B81-C0iMZEA11,ZWE211..HI202301-202304

LADY PACKAGE,BLACK,TRIM20

58911GPANEL, BOX, NO.1

main58911-02670-C0iNRE210..ENTRY,MID201908-202304

BLACK,TRIM0#,2#

58923APANEL, CONSOLE REAR END

main58923-02460-C0iMZEA11..HI;ZWE211..HI,MID201908-202304

LEATHER PACKAGE,BLACK,TRIM0#,2#

main58923-02460-C0iMZEA17..HI;ZWE219..HI,MID202305

BLACK,TRIM2#,4#

main58923-02460-C0iNRE210..HI201908-202304

BLACK,TRIM0#,2#

main58923-02470-C0iZWE211..ENTRY;MZEA11..ENTRY,MID201908-202304

BLACK,TRIM0#,2#

main58923-02470-C0iMZEA17..ENTRY202306

BLACK,TRIM2#

main58923-02710-C0iMZEA17..MID;ZWE219..ENTRY202305

BLACK,TRIM2#,4#

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-02280iNRE210..HI201908-202304

9011908D23

main90119-08D23

90119C0107

main90119-C0107

90119C0547

main90119-C0547

90167C0004

main90167-C0004

9046705171

main90467-05171

9046705172

main90467-05172

9046709240

main90467-09240

90467C0087

main90467-C0087

90467C0088

main90467-C0088

9167380616

main91673-80616

9356014012

main93560-14012

9356855014

main93568-55014

31 parts on this diagram · 3 diagrams in section
