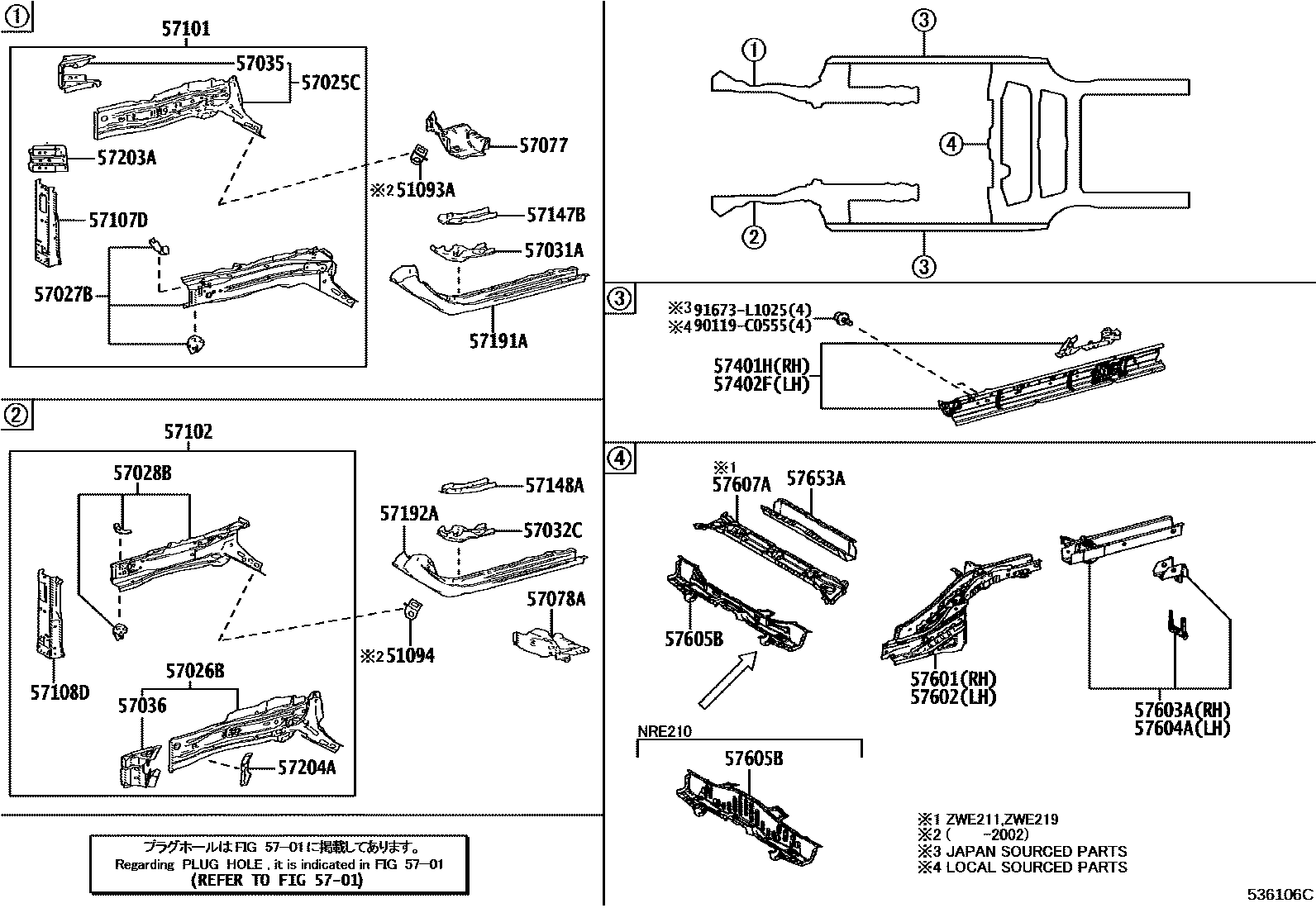

FLOOR SIDE MEMBER

0001 1 0002 1

51093AHOOK SUB-ASSY, TRANSPORT, FRONT RH

main51093-F4020iNRE210,ZWE211201908-202002

51094HOOK SUB-ASSY, TRANSPORT, FRONT LH

main51094-F4020iNRE210,ZWE211201908-202002

5701HOLE PLUG

→ Go to FIG 57-01

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-F4030iNRE210..HI202007-202304

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-F4030iMZEA11,ZWE211201908-202304

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-F4030iNRE210..HI201908-202006

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-F4030iMZEA11,ZWE211201908-202304

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-F4030iNRE210..HI201908-202006

57032CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-F4030iNRE210..HI201908-202006

57035PANEL SUB-ASSY, FRONT STEP, RH

main57035-F4031iNRE210..HI201908-202006

57036PANEL SUB-ASSY, FRONT STEP, LH

main57036-F4031iMZEA11,ZWE211201908-202304

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-F4030iNRE210,ZWE211201908-202006

main57077-F4031iMZEA11,ZWE211202006-202304

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-F4030iNRE210,ZWE211201908-202006

main57078-F4031iMZEA11,ZWE211202006-202304

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-F4909iNRE210..HI201908-202006

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-F4908iNRE210..HI201908-202006

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-02170iNRE210..HI201908-202006

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-02170iNRE210..HI201908-202006

57147BPLATE, FRONT SIDE MEMBER, REAR RH

main57147-F4030iNRE210..HI201908-202006

57148APLATE, FRONT SIDE MEMBER, REAR LH

main57148-F4030iNRE210..HI202007-202304

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-F4030iMZEA11,ZWE211201908-202304

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-F4030iNRE210..HI201908-202006

57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57203-F4031iNRE210..HI201908-202006

57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57204-F4031iNRE210..HI201908-202006

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-02420iNRE210..HI201908-202006

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-02430iNRE210..HI201908-202006

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-02590iMZEA17202306

main57601-02610iNRE210..HI;MZEA11,ZWE211202208-202304

main57601-F4030iNRE210..HI202007-202207

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-02690iMZEA17202306

main57602-02710iNRE210..ENTRY,MID202208

main57602-F4030iMZEA11,ZWE211;NRE210..ENTRY,MID201908-202207

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-02280iMZEA11,ZWE211201908-202304

main57603-02310iMZEA17202306

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-02180iNRE210..HI202007-202304

main57604-02181iNRE210..ENTRY,MID; ZWE219202404

main57604-02210iMZEA17202306-202403

main57604-02211iMZEA17202404

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-02390iZWE211201908-202304

main57605-0A080iMZEA17202306

main57605-F4060iNRE210..ENTRY,MID201908

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-02070iZWE211201908-202304

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-F4030iNRE210..HI201908-202006

90119C0555

main90119-C0555

91673L1025

main91673-L1025

34 parts on this diagram · 2 diagrams in section
