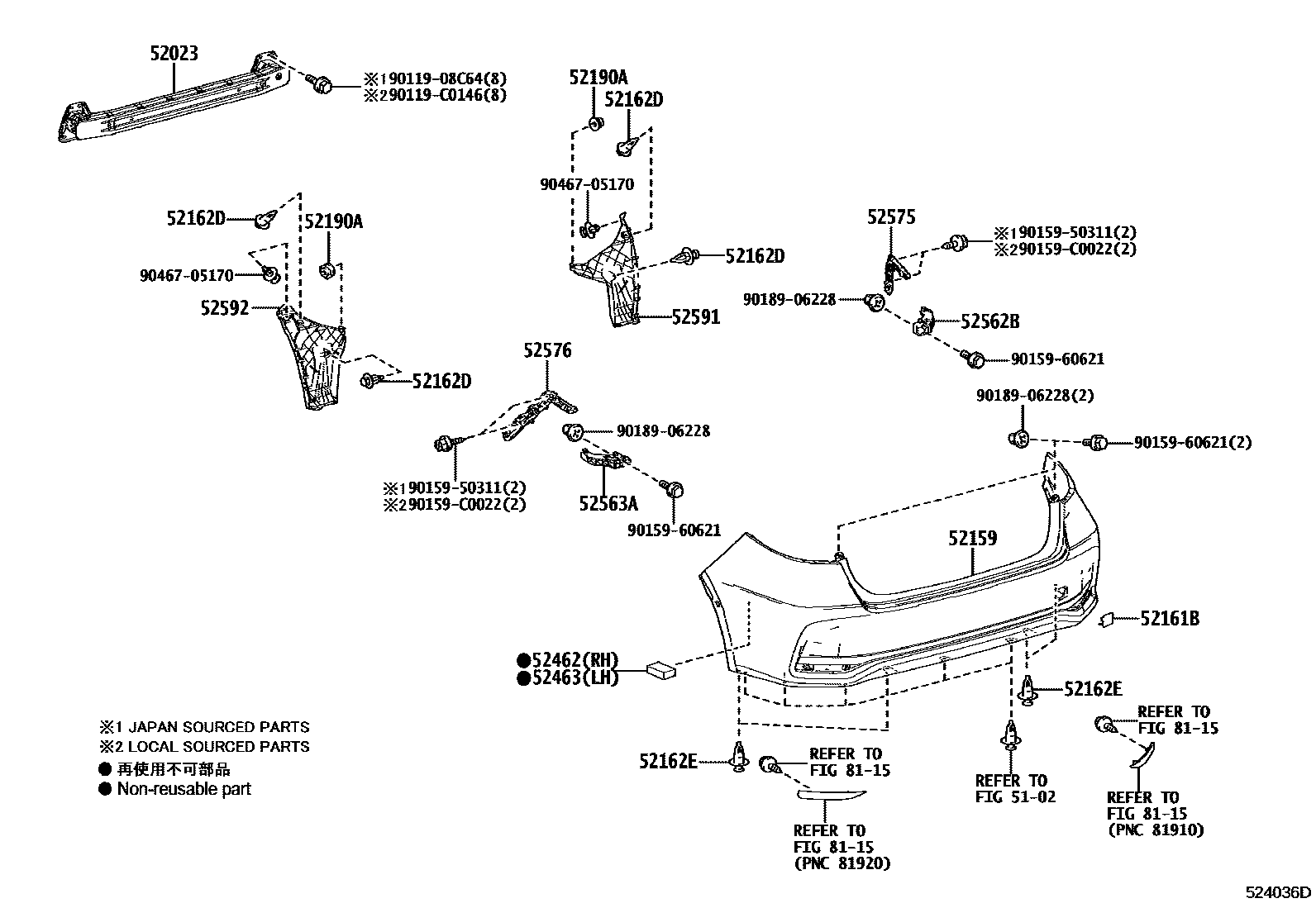

REAR BUMPER & BUMPER STAY

0001 1 0002 1W(REAR SPOILER)

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-02310iNRE210..HI202007-202304

52159COVER, REAR BUMPER

main52159-0Z965iMZEA17,ZWE219202305

PAINT REQ.

main52159-0Z966iNRE210..MID201908-202305

PAINT REQ.,SPORT PACKAGE

main52159-YK900iMZEA11..MID202110-202304

PAINT REQ.,GR SPORT

52161BPIECE, REAR BUMPER

main52161-02904iNRE210..HI202007-202304

52162DPIECE, REAR BUMPER

main52161-02040×4iNRE210..HI201908-202006

(L)

main52161-16010×4iNRE210..HI201908-202006

(J)

52162EPIECE, REAR BUMPER

main52161-02040×4iNRE210..HI201908-202006

(L)

main52161-16010×4iNRE210..HI201908-202006

(J)

52190ACLIP

main90467-06206-C0×2iNRE210..ENTRY,MID201908

BLACK

main90467-C0052-C0×2iMZEA17,ZWE219202305

BLACK,(L)

52462PAD, REAR BUMPER, RH

main52462-02360iNRE210..HI202007-202210

main52462-02380iNRE210..HI;MZEA11,ZWE211202211-202304

NO PAINT REQ.

52463PAD, REAR BUMPER, LH

main52462-02360iMZEA11,ZWE211;NRE210..ENTRY,MID201908-202210

main52462-02380iNRE210..HI;MZEA11,ZWE211202211-202304

NO PAINT REQ.

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-02380iNRE210..HI201908-202006

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-02350iNRE210..ENTRY,MID201908

52575RETAINER, REAR BUMPER SIDE, RH

main52575-02250iNRE210..HI201908-202006

52576RETAINER, REAR BUMPER SIDE, LH

main52576-02250iNRE210..HI201908-202006

52591SEAL, REAR BUMPER SIDE, RH

main52591-02460iNRE210..HI201908-202006

52592SEAL, REAR BUMPER SIDE, LH

main52592-02420iNRE210..HI201908-202006

8115REFLEX REFLECTOR

→ Go to FIG 81-15

9011908C64

main90119-08C64

90119C0146

main90119-C0146

9015950311

main90159-50311

9015960621

main90159-60621

90159C0022

main90159-C0022

9018906228

main90189-06228

9046705170

main90467-05170

23 parts on this diagram · 2 diagrams in section
