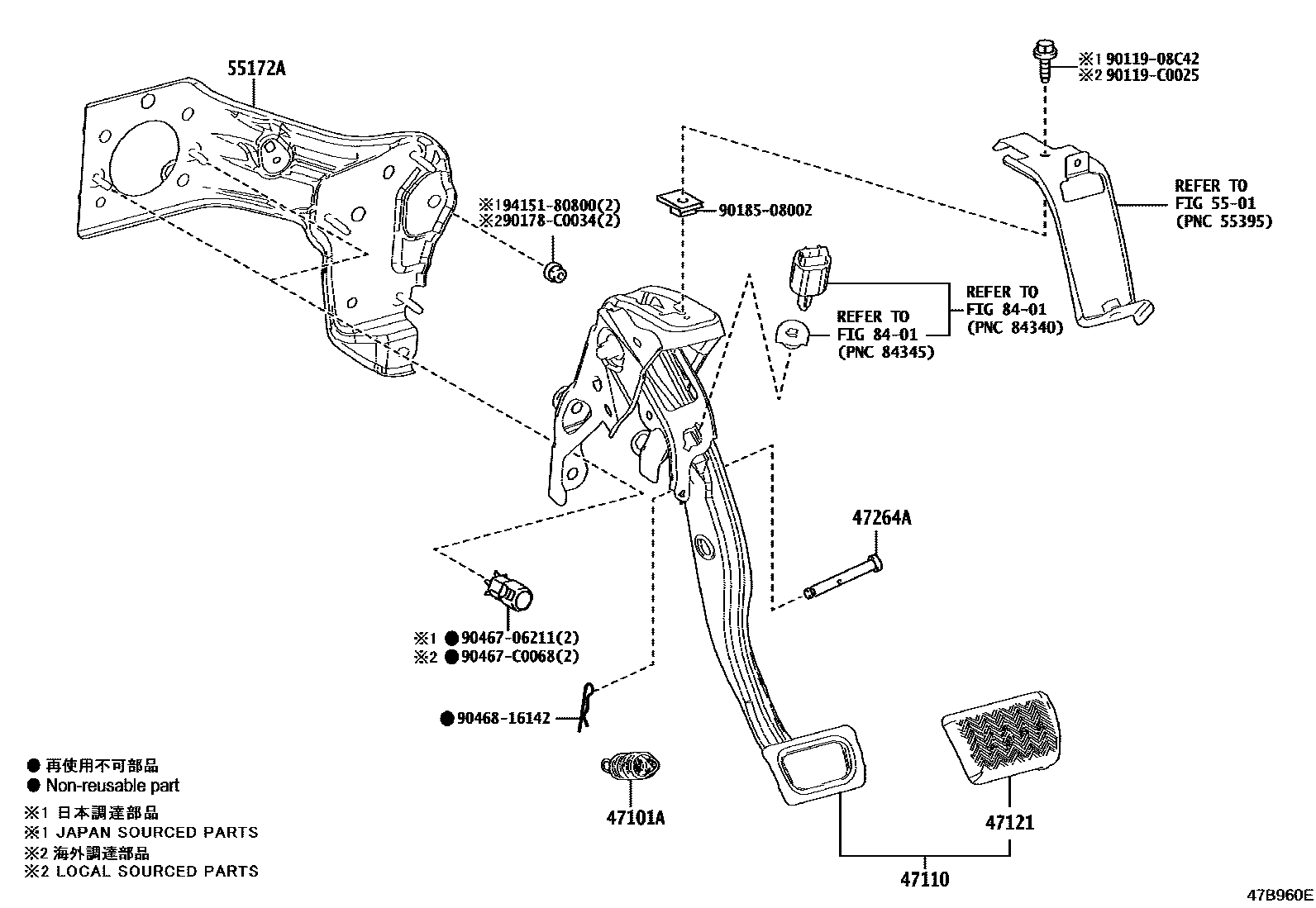

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15009iZWE219202305-202405

main90507-15010iNRE210..ENTRY,MID201908-202404

main90507-C0006iNRE210..ENTRY,MID202404

(L)

main90507-C0010iZWE219202405

(L)

47110SUPPORT ASSY, BRAKE PEDAL

main47110-02850iZWE219202305

main47110-02860iNRE210..HI201908-202006

main47110-02870iMZEA11..6F202101-202304

main47110-02880iZWE211201908-202304

47121PAD, BRAKE PEDAL

main47121-02130iZWE219202305

main47121-02180iNRE210..HI202007-202304

main47121-02190iMZEA11..6F202101-202304

47264APIN(FOR PUSH ROD)

main90249-08221iNRE210..HI202007-202304

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55172ABASE, BRAKE PEDAL SUPPORT

main55172-02210iNRE210..HI201908-202006

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C42

main90119-08C42

90119C0025

main90119-C0025

90178C0034

main90178-C0034

9018508002

main90185-08002

9046706211

main90467-06211

90467C0068

main90467-C0068

9046816142

main90468-16142

9415180800

main94151-80800

15 parts on this diagram · 2 diagrams in section
