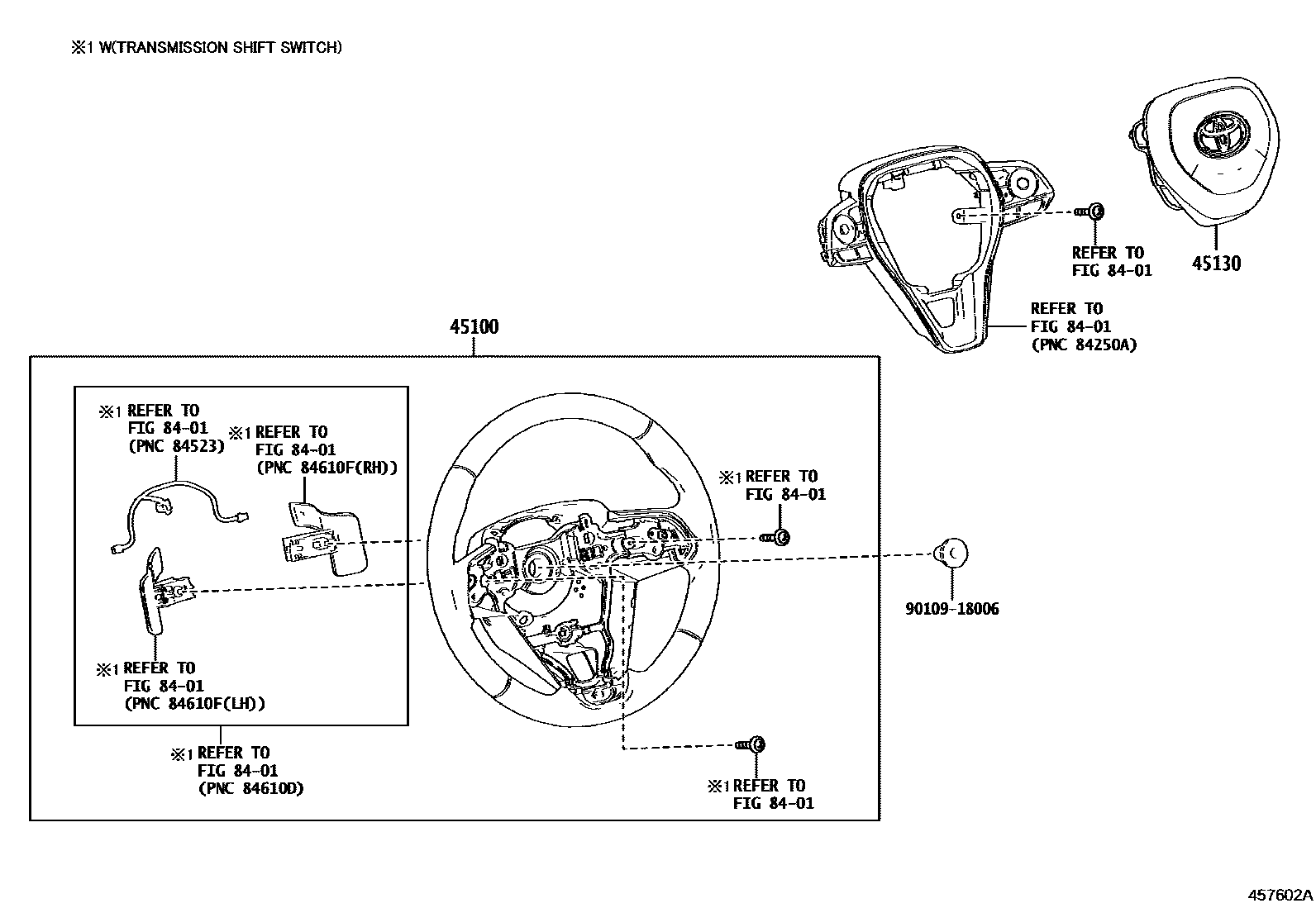

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-0Z320-C0iMZEA11,ZWE211..ENTRY,MID201908-202304

3-SPOKE,URETHANE,BLACK,TRIM0#,2#

main45100-0Z330-C1iNRE210..HI202007-202304

3-SPOKE,LEATHER,BLACK,TRIM0#,2#

main45100-0Z360-C1iMZEA17..MID202306

3-SPOKE,LEATHER,SPORT PACKAGE,BLACK,TRIM2#,4#

main45100-0Z360-C2iNRE210..MID202101-202305

3-SPOKE,LEATHER,SPORT PACKAGE,BLACK & ORANGE,TRIM2#

main45100-YK010iMZEA11..MID202110-202304

3-SPOKE,LEATHER,GR SPORT

45130BUTTON ASSY, HORN

main45130-02850-C0iNRE210..HI202007-202304

BLACK,TRIM0#,2#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010918006

main90109-18006

4 parts on this diagram · 1 diagram in section
