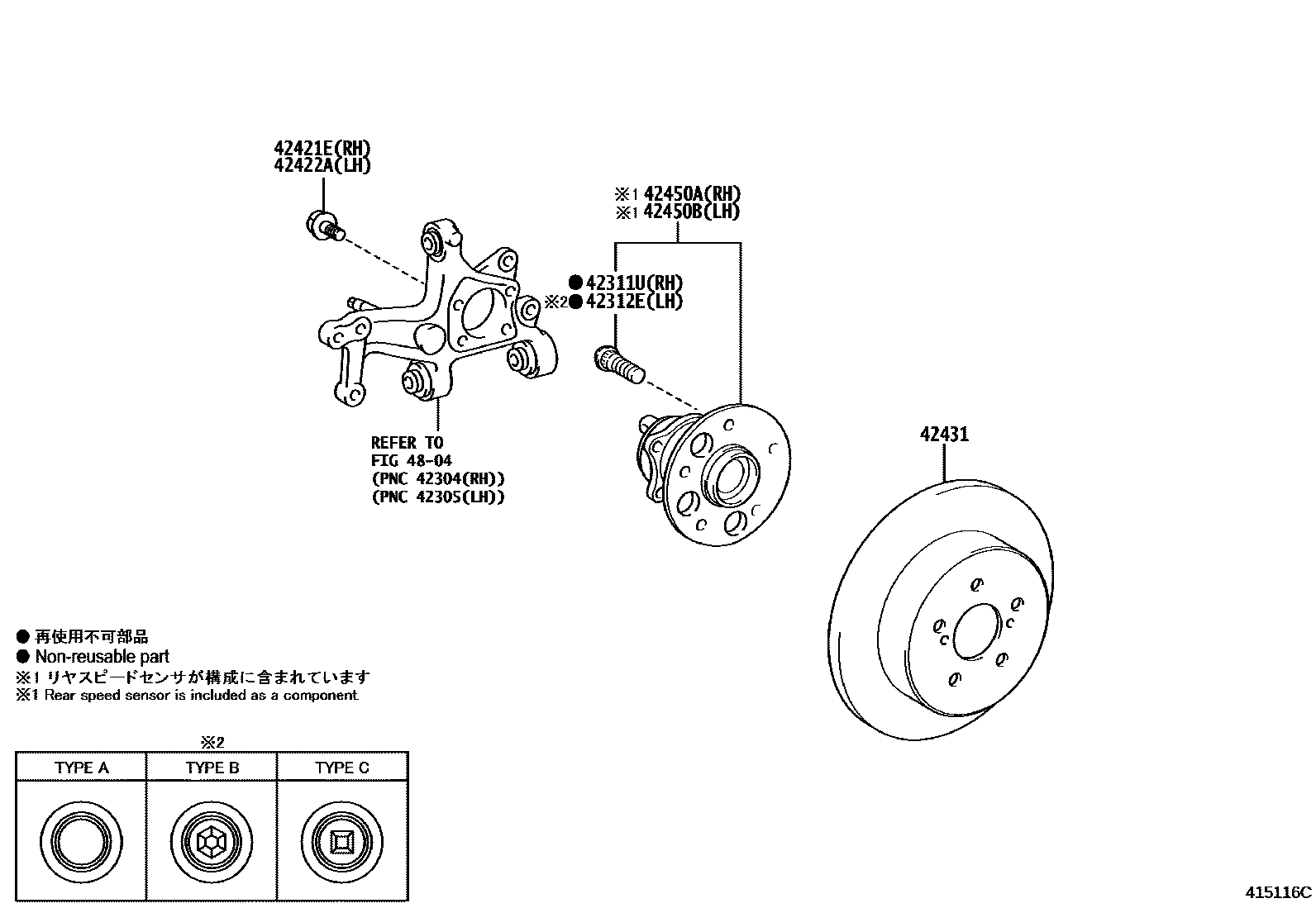

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iMZEA11,ZWE211201908-202304

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iNRE210..HI201908-202006

main90942-02081×5iZWE219202305

TYPE B:REFER ILLUST.

main90942-02082×5iZWE219202305

TYPE C:REFER ILLUST.

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12406×4iNRE210..ENTRY,MID201908

(J)

main90105-12408×4iMZEA17202306

main90105-C0328×4iNRE210..HI202007-202304

(L)

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12406×4iZWE219202305

(J)

main90105-12408×4iMZEA17202306

main90105-C0328×4iMZEA11,ZWE211201908-202304

(L)

42431DISC, REAR

main42431-02360×2iNRE210..HI201908-202006

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-02340iNRE210..HI201908-202006

main42450-02390iZWE219202305

main42450-0A050iMZEA17202306

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-02340iMZEA11,ZWE211201908-202304

main42450-02390iZWE219202305

main42450-0A050iMZEA17202306

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

8 parts on this diagram · 2 diagrams in section
