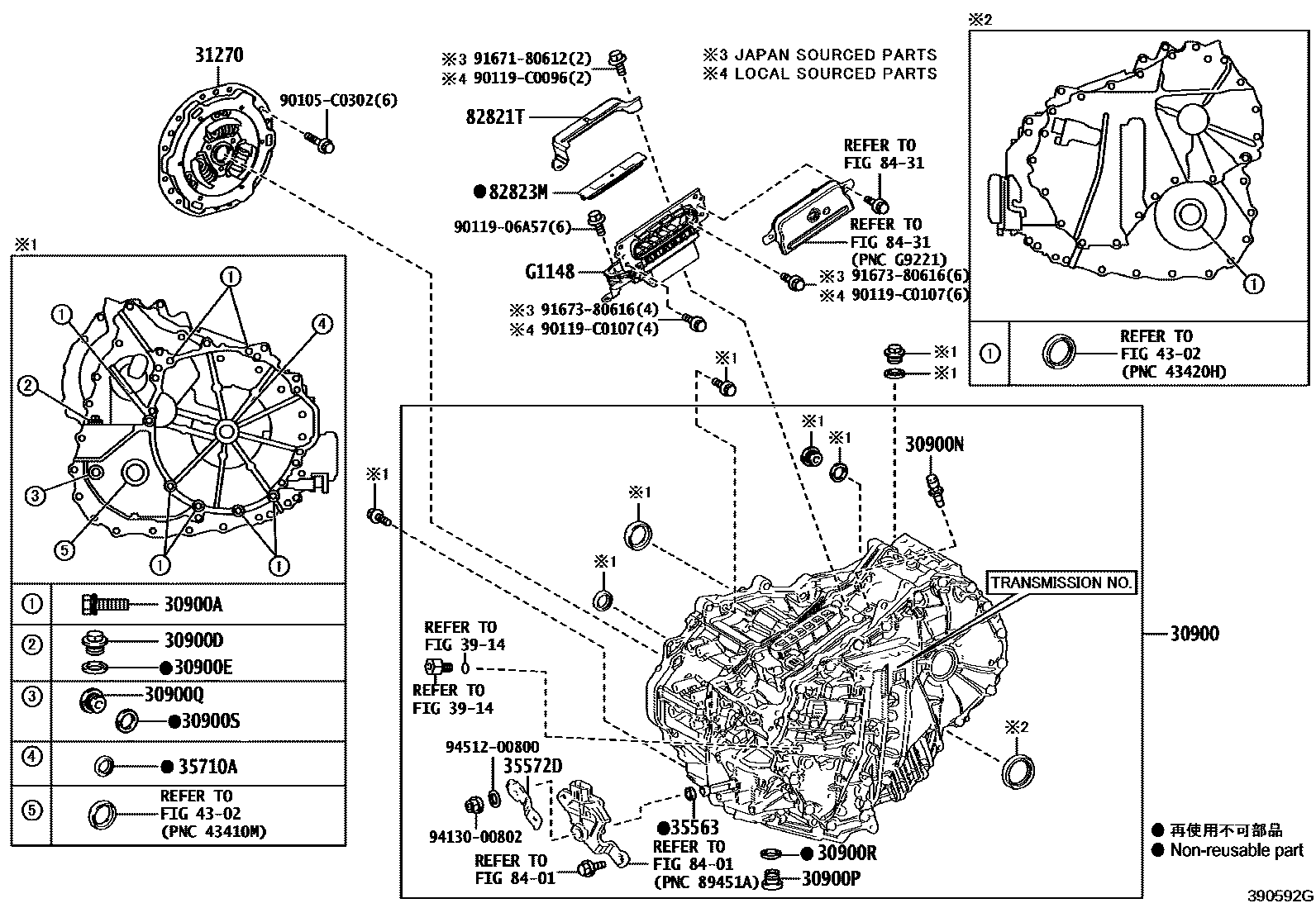

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-02040iZWE211201908-202304

*645

main30900-02070iZWE219202305-202408

main30900-02071iZWE219202409

main30900-12030iZWE211202211-202304

*643

30900ABOLT(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)

main90119-C0139iZWE219202305

*10-1.25PX45-30,(L)

main90119-C0139iZWE211201908-202304

*10-1.25PX45-30

main91612-61045iZWE219202305

*10-1.25PX45-30,(J)

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iZWE211201908-202304

main90341-18060iZWE219202305

(J)

main90341-C0022iZWE219202305

(L)

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iZWE219201908-202304

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iZWE211201908-202304

*645

main90930-03201iZWE211202211-202304

*643

main90930-03201iZWE219202305

30900PPLUG, DRAIN(HEV)

main90341-18016iZWE211201908-202304

*645

main90341-18016iZWE211202211-202304

*643

main90341-18016iZWE219202305

30900QPLUG, FILLER(HEV)

main90341-18016iZWE211201908-202304

*645

main90341-18016iZWE211202211-202304

*643

main90341-18090iZWE219202305

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iZWE211202211-202304

*643

main90430-18008iZWE211201908-202304

*645

main90430-18008iZWE219202305

(J)

main90430-C0007iZWE219202305

(L)

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iZWE211201908-202304

*645

main90430-18008iZWE211202211-202304

*643

main90430-18008iZWE219202305

(J)

main90430-C0007iZWE219202305

(L)

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-02010iZWE219202305

main31270-47070iZWE211201908-202304

35563SEAL, SHIFT CONTROL ACTUATOR

main90311-12016iZWE211202211-202304

*643

main90311-C0053iZWE211201908-202304

*645

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-10040iZWE211201908-202304

*645

main35572-10040iZWE211202211-202304

*643

main35572-28140iZWE219202305

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-25025iZWE211202211-202304

*643

main90311-25035iZWE219202305

main90311-C0051iZWE211201908-202304

*645

3914OIL COOLER & TUBE (HEV OR BEV OR FCEV)

→ Go to FIG 39-14

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

82821TCOVER, CONNECTOR

main82821-47240iZWE211201908-202304

82823MCAP, TERMINAL

main82823-02050iZWE219202305

main82823-47040iZWE211201908-202304

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8431HEV INVERTER

→ Go to FIG 84-31

G1148CABLE, MOTOR

mainG114802030iZWE211201908-202304

mainG114802050iZWE219202305-202410

mainG114802051iZWE219202411

90105C0302

main90105-C0302

9011906A57

main90119-06A57

90119C0096

main90119-C0096

90119C0107

main90119-C0107

9167180612

main91671-80612

9167380616

main91673-80616

9413000802

main94130-00802

9451200800

main94512-00800

28 parts on this diagram · 2 diagrams in section
