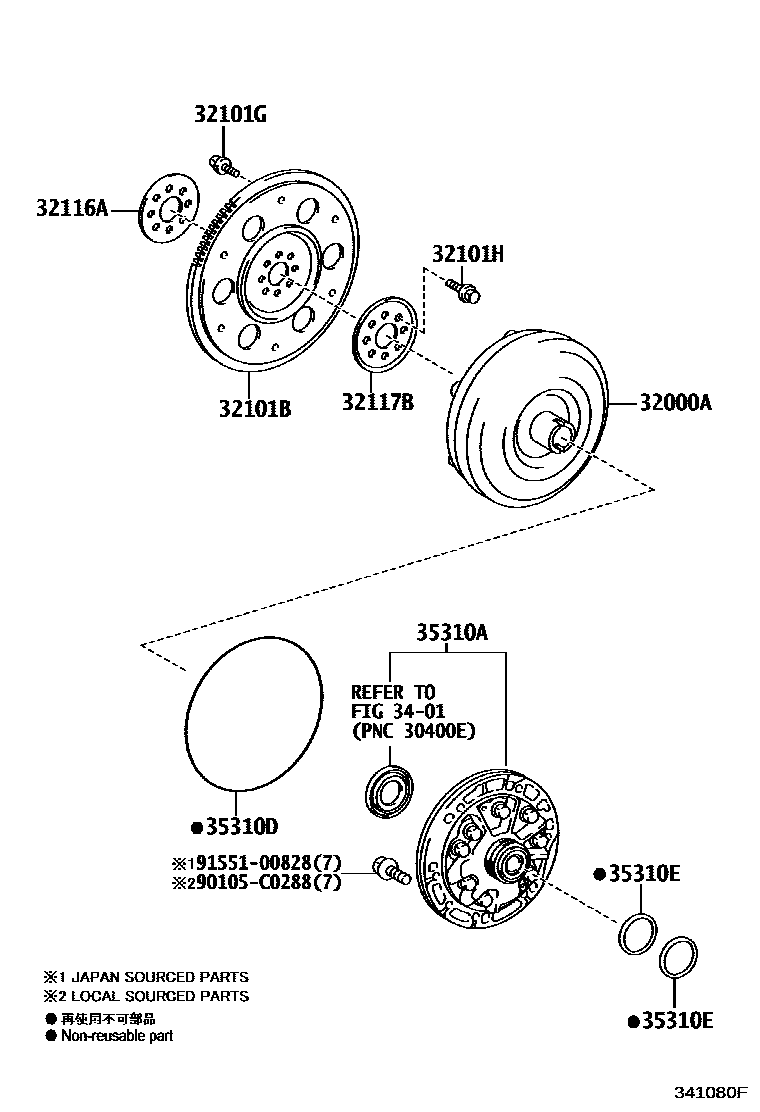

TORQUE CONVERTER, FRONT OIL PUMP(CVT)
32000ACONVERTER ASSY, TORQUE
TMCAP:REFER 34-01
TMH:REFER FIG.34-01
TOYOTA:REFER 34-01
AISIN AW:REFER 34-01
32101BGEAR SUB-ASSY, DRIVE PLATE & RING
(L)
(J)
32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*8-1.25PX12-8.4,BLACK
*8-1.25PX12-8,SILVER WHITE
32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
32116ASPACER, DRIVE PLATE, FRONT
(J)
32117BSPACER, DRIVE PLATE, REAR
(L)
(L)
(J)
(J)
3401
35310APUMP ASSY, FRONT OIL
AISIN AW:REFER 34-01
AISIN AW:REFER 34-01
TMCAP:REFER 34-01
TMH:REFER FIG.34-01
35310DRING, O (FOR FRONT OIL PUMP)
TMH:REFER FIG.34-01
TMCAP:REFER 34-01
35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)
TMCAP:REFER 34-01
TMH:REFER FIG.34-01
AISIN AW:REFER 34-01
90105C0288
main90105-C0288
9155100828
main91551-00828
12 parts on this diagram · 4 diagrams in section
