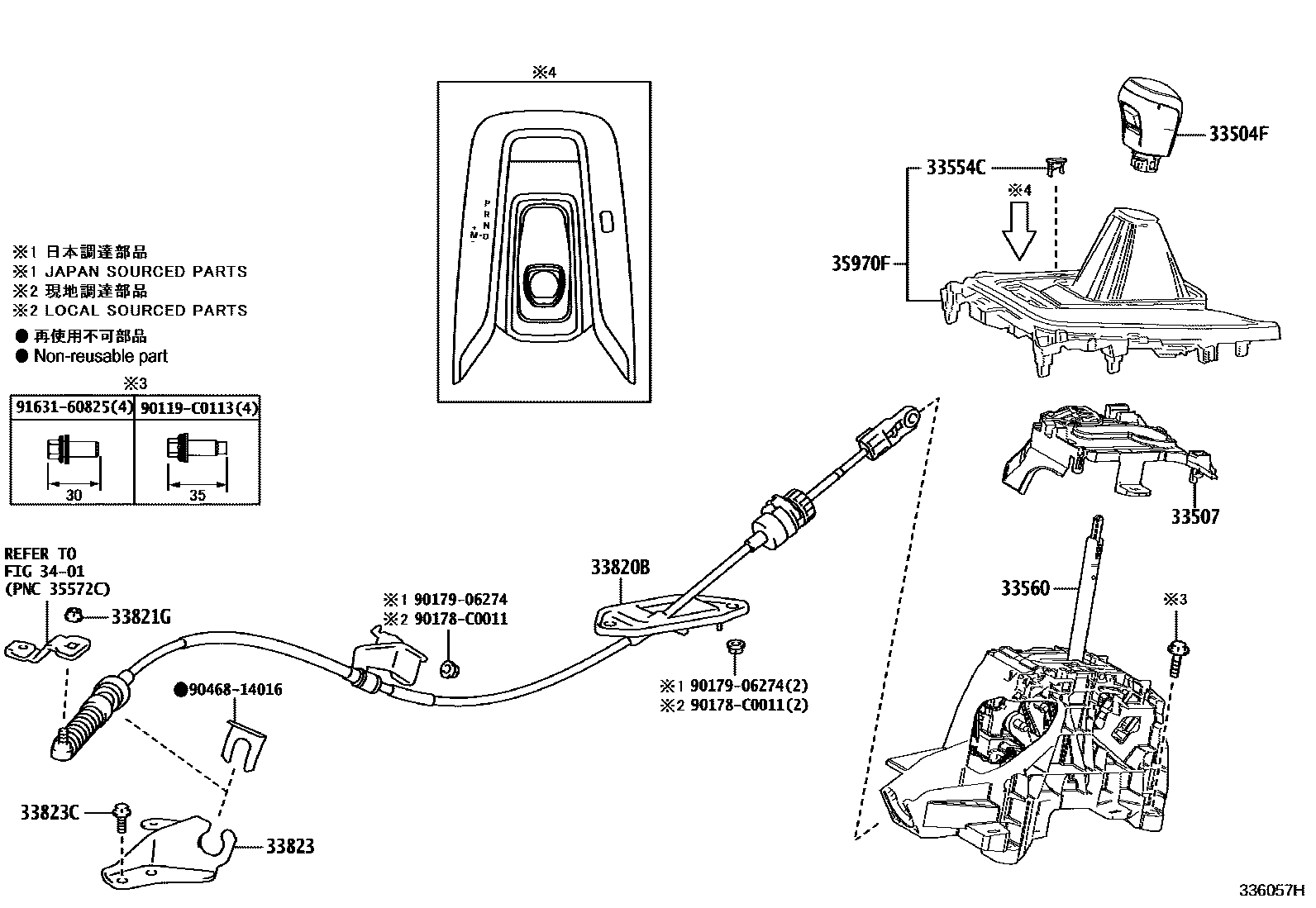

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM0#,2#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#
LEATHER PACKAGE,BLACK,TRIM0#,2#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#
BLACK,TRIM2#
33507BRACKET SUB-ASSY, SHIFT LEVER HOUSING
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33560UNIT ASSY, SHIFT LOCK CONTROL
SMART ENTRY-WITHOUT & WITH(PUSH START SWITCH)
33820BCABLE ASSY, TRANSMISSION CONTROL
33821GNUT (FOR TRANSMISSION CONTROL CABLE)
(L)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
(J)
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
(J)
(J),TYPE A:REF ILL.
(L),TYPE B:REF ILL.
(L)
(L),TYPE A:REF ILL.
(J),TYPE B:REF ILL.
3401
35970FHOUSING ASSY, POSITION INDICATOR
BLACK & SILVER,TRIM0#,2#
BLACK & SILVER,TRIM0#,2#
BLACK & SILVER,TRIM0#,20
BLACK & SILVER & ORANGE,TRIM2#
BLACK & SILVER & ORANGE,TRIM20
BLACK & CKD COLOR & BLACK,TRIM20
BLACK & SILVER,TRIM0#,2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
90119C0113
main90119-C0113
90178C0011
main90178-C0011
9017906274
main90179-06274
9046814016
main90468-14016
9163160825
main91631-60825
15 parts on this diagram · 6 diagrams in section
