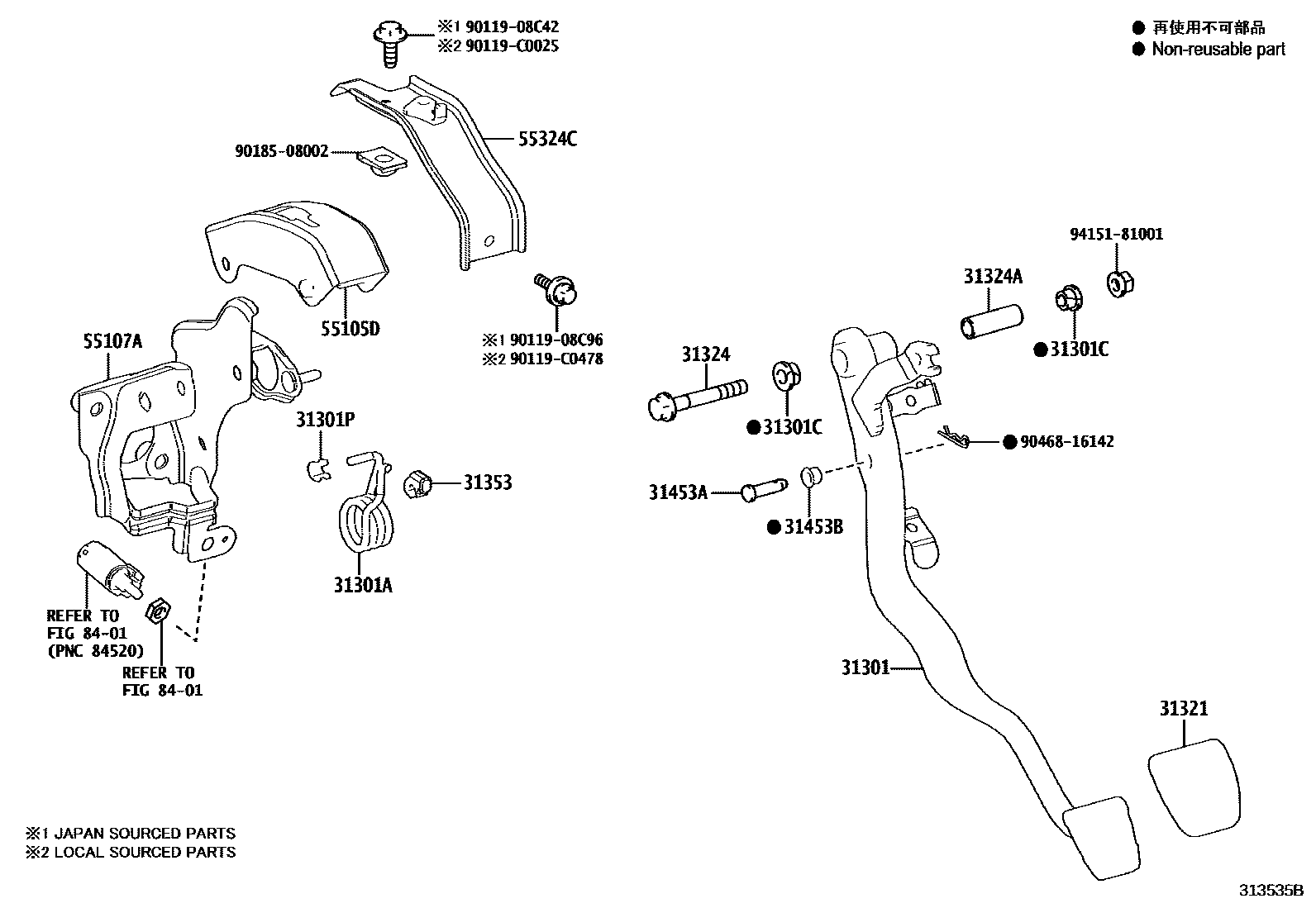

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-02710iMZEA11..6F202101-202304

31301ASPRING(FOR CLUTCH PEDAL)

main90949-03141iMZEA11..6F202101-202304

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iMZEA11..6F202101-202304

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-C0003iMZEA11..6F202101-202304

31321PAD, CLUTCH PEDAL

main31321-02100iMZEA11..6F202101-202304

31324SHAFT, CLUTCH PEDAL

main90105-10524iMZEA11..6F202101-202304

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iMZEA11..6F202101-202304

31353HOLDER, CLUTCH PEDAL SPRING

main31353-02010iMZEA11..6F202101-202304

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08084iMZEA11..6F202101-202304

L=28.3

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iMZEA11..6F202101-202304

55105DBRACKET SUB-ASSY, CLUTCH PEDAL

main55105-02140iMZEA11..6F202101-202304

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-02580iMZEA11..6F202101-202304

55324CBRACKET, INSTRUMENT PANEL, NO.4

main55324-02620iMZEA11..6F202101-202304

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C42

main90119-08C42

9011908C96

main90119-08C96

90119C0025

main90119-C0025

90119C0478

main90119-C0478

9018508002

main90185-08002

9046816142

main90468-16142

9415181001

main94151-81001

21 parts on this diagram · 2 diagrams in section
