ENGINE OVERHAUL GASKET KIT

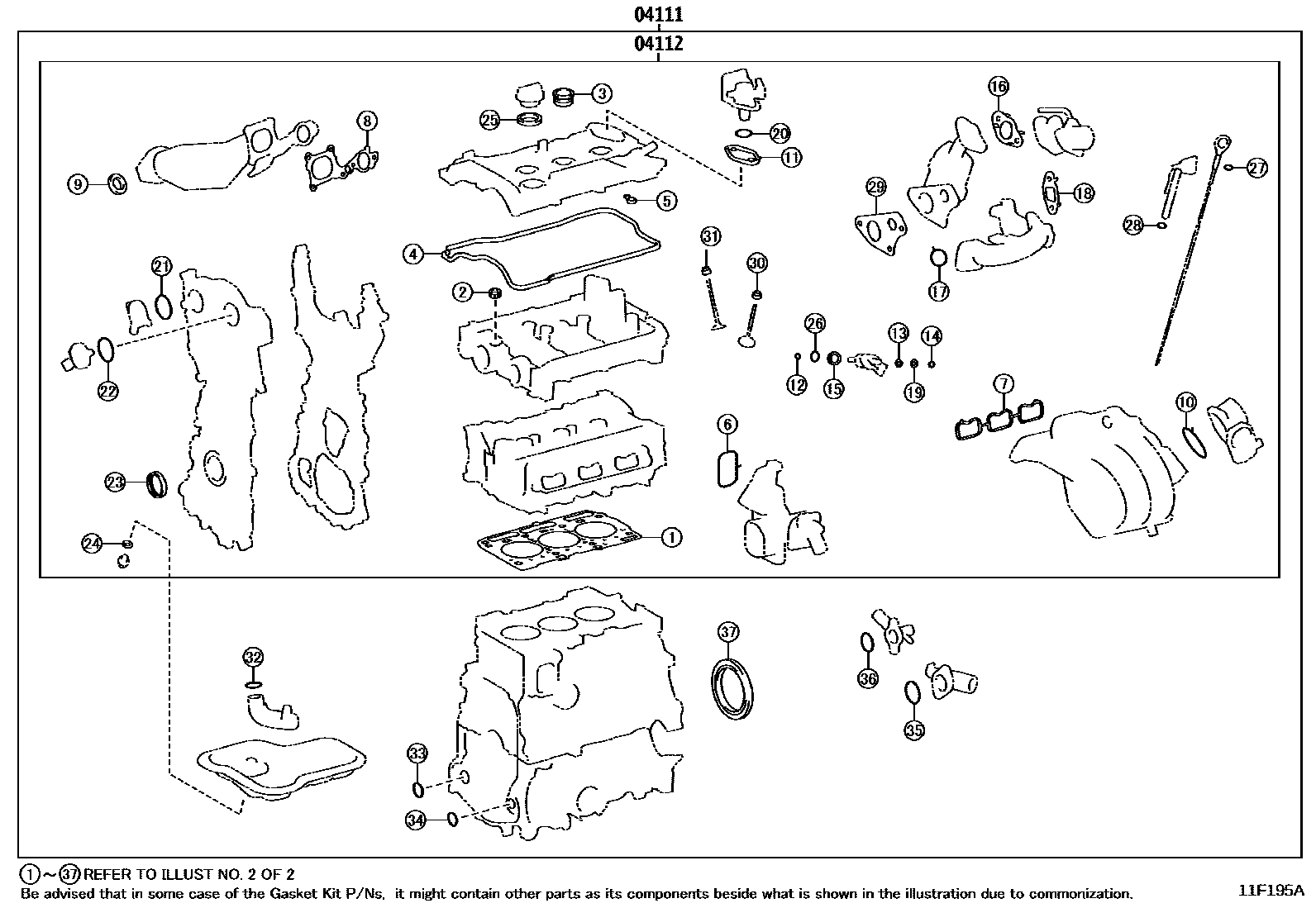

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-0T310i201908-202304

main04111-0T320i202305-202311

main04111-0T330i202311

main04111-0Y120i202007-202304

*662,*252

main04111-47272supersedes 04111-0Y120i202007-202404

*602

main04111-F3030i202101-202110

main04111-F3031i202110-202304

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0T260i201908-202304

main04112-0T270i202305-202311

main04112-0T280i202311

main04112-0Y120i202007-202304

*662,*252

main04112-47182supersedes 04112-0Y120i202007-202404

*602

main04112-F3030i202101-202110

main04112-F3031i202110-202304

2 parts on this diagram · 8 diagrams in section
