HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

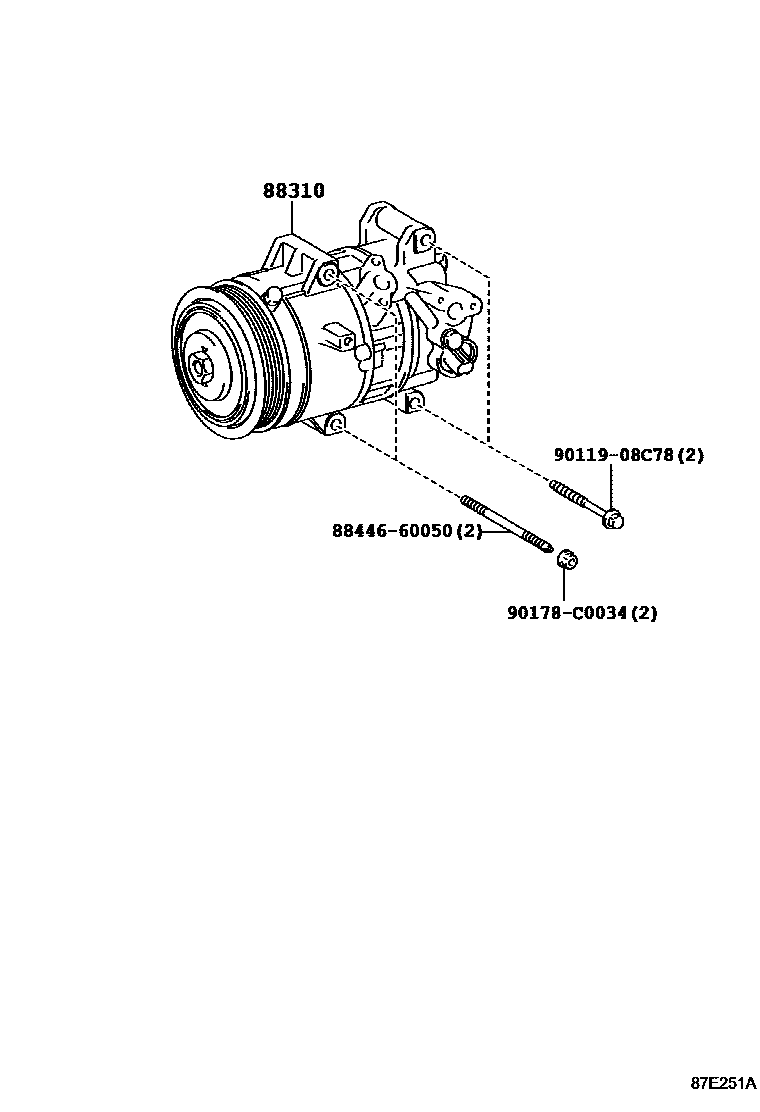

88310COMPRESSOR ASSY, W/PULLEY

main88310-02A70iZRE18#201406-201407

main88310-02A71iZRE18#201407-201602

main88310-02A72iZRE182201704-201802

main88310-02B40iNRE181201610-201703

8844660050BOLT, IDLE PULLEY

main88446-60050

9011908C78

main90119-08C78

90178C0034

main90178-C0034

4 parts on this diagram · 3 diagrams in section
