HORN

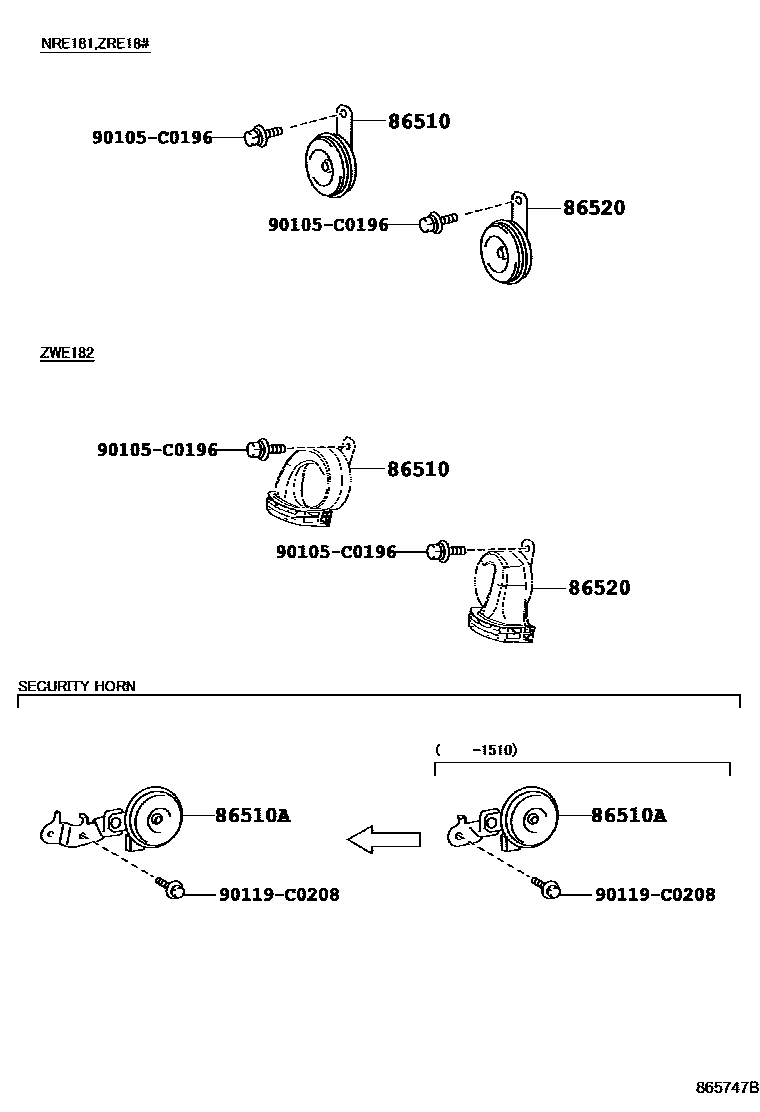

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-06170i201406-201502

main86510-06171i201503-201610

main86510-0R041i201704

main86510-12620i201704

86510AHORN ASSY, SECURITY

main86560-02060i201406-201510

main86560-02110i201510-201703

86520HORN ASSY, LOW PITCHED

main86520-02290i201704-201705

main86520-02291i201706

main86520-02300i201706-201708

main86520-02320i201708-201712

main86520-06160i201406-201502

main86520-06161i201503-201610

main86520-0R041i201610-201705

main86520-12740i201704

90105C0196

main90105-C0196

90119C0208

main90119-C0208

5 parts on this diagram · 1 diagram in section
