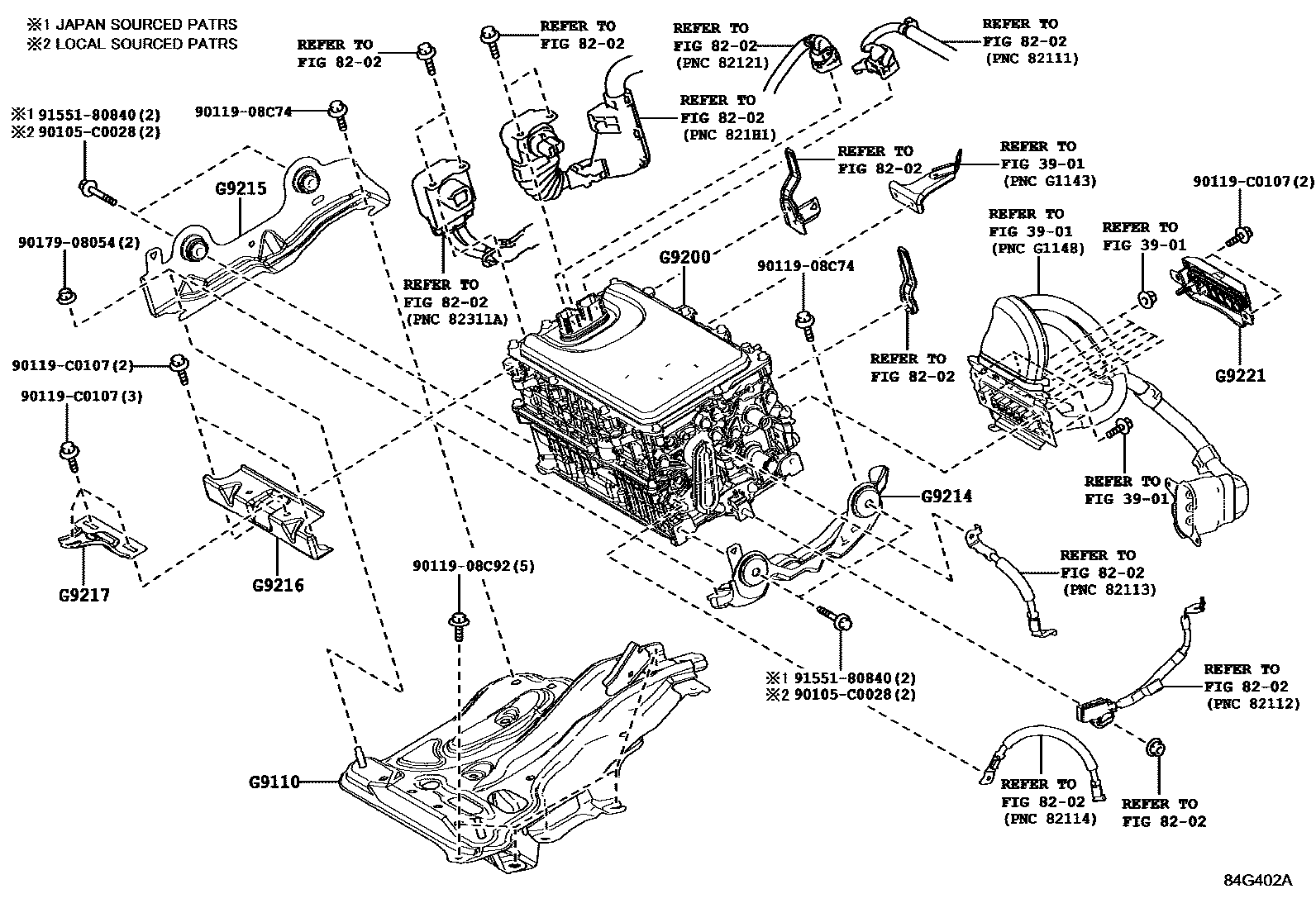

HEV INVERTER

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9110BRACKET ASSY, INVERTER

mainG911002010iZWE182201512-201703

G9200INVERTER ASSY, W/CONVERTER

mainG92A002010iZWE182201512-201703

mainG92A002040iZWE182201810

EXHAUST EMISSION CONTROL-CHINA 6B

G9214BRACKET, INVERTER, NO.1

mainG921402040iZWE182201512-201703

G9215BRACKET, INVERTER, NO.2

mainG921502030iZWE182201512-201703

G9216BRACKET, INVERTER, NO.3

mainG921602030iZWE182201512-201703

G9217BRACKET, INVERTER, NO.4

mainG921702030iZWE182201512-201703

mainG921702031iZWE182201805

G9221COVER, INVERTER

mainG902202010iZWE182201512-201703

90105C0028

main90105-C0028

9011908C74

main90119-08C74

9011908C92

main90119-08C92

90119C0107

main90119-C0107

9017908054

main90179-08054

9155180840

main91551-80840

15 parts on this diagram · 1 diagram in section
