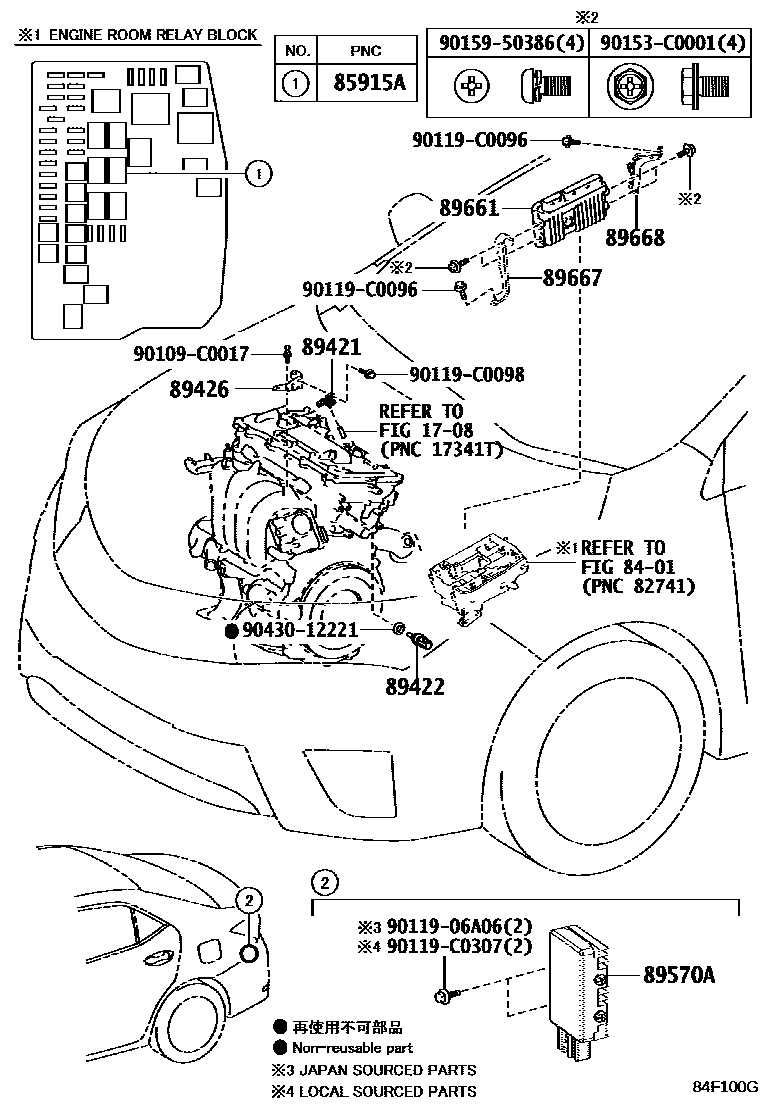

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1708VACUUM PIPING

→ Go to FIG 17-08

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85915ARELAY, MAIN

main90987-02027iZRE182201704-201802

(J)

main90987-T2005×2iNRE181201610-201703

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZRE18#201406

main89421-47010iZWE182201704

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-0D010iZRE18#,ZWE182201406

89426BRACKET, VACUUM SENSOR

main89426-02050iZRE18#201406

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-12390iNRE181,ZRE18#201406

89661COMPUTER, ENGINE CONTROL

main89661-0Z700iZWE182201704

main89661-0ZK10iZRE181..5F201406

main89661-0ZK30iZRE181..CVT201406

main89661-0ZK50iZRE182..6F201406-201609

main89661-0ZK70iZRE182..CVT201406-201610

main89661-0ZT90iNRE181..6F201610-201703

main89661-0ZU00iNRE181..CVT201704

main89661-0ZU20iZRE182201704-201802

main89661-0ZV50iZWE182201810

EXHAUST EMISSION CONTROL-CHINA 6B

main89661-0ZY30iNRE181..CVT201810

DENSO,EXHAUST EMISSION CONTROL-CHINA 6B

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-02310iZWE182201704

main89667-02400iZRE18#201406

main89667-02460iNRE181201610-201703

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02290iZWE182201704

main89668-02380iZRE18#201406

main89668-02440iNRE181201610-201703

90109C0017

main90109-C0017

9011906A06

main90119-06A06

90119C0096

main90119-C0096

90119C0098

main90119-C0098

90119C0307

main90119-C0307

90153C0001

main90153-C0001

9015950386

main90159-50386

9043012221

main90430-12221

18 parts on this diagram · 3 diagrams in section
