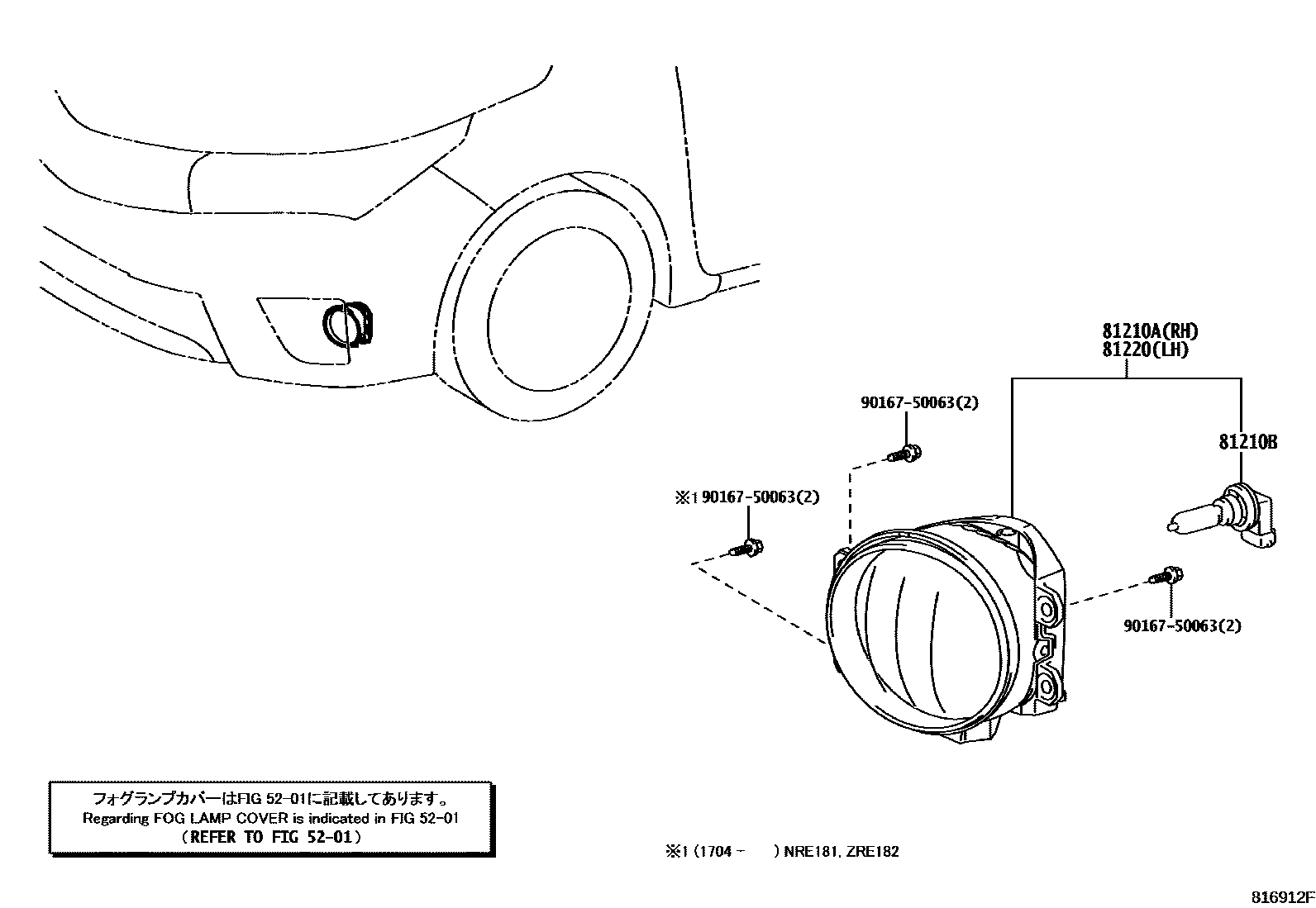

FOG LAMP

0001 1BULB TYPE 0002 1LED TYPE

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-06090iZWE182201810

main81210-0D100iNRE181201704

main81210-48050iZWE182201512-201609

main81210-48051iZWE182201704-201810

81210BBULB, FOG LAMP

main90981-CD003×2iNRE181,ZRE18#201406

12V 19W

81220LAMP ASSY, FOG, LH

main81220-06090iZWE182201810

main81220-0D100iNRE181201704

main81220-48050iZWE182201512-201609

main81220-48051iZWE182201704-201810

9016750063

main90167-50063

5 parts on this diagram · 2 diagrams in section
