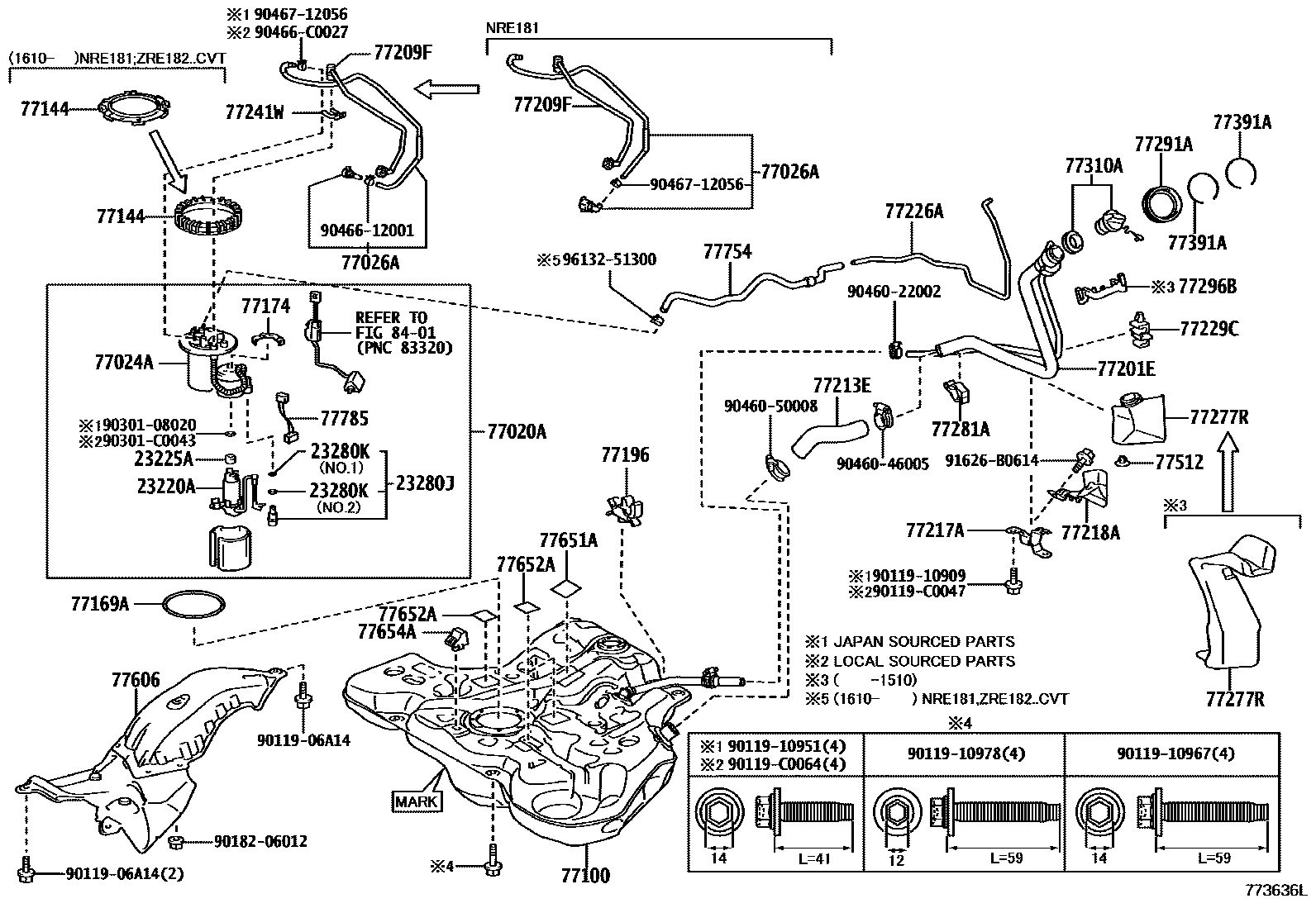

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK, W(CHINA 6B) 0004 1FUEL TANK, W(CHINA 6B) 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL TUBE, W(CHINA 6B) 0009 1FUEL TUBE, W(CHINA 6B) 0010 1FUEL LID OPENER

23220APUMP ASSY, FUEL W/FILTER

main23220-0M051i8ZRFXE..ZWE182201512-201907

main23220-0T051i1ZRFE..ZRE181201406

main23220-0T181i2ZRFE..ZRE182201406-201802

main23220-0Y140i9NRFTS..NRE181201610-201907

23225ASPACER, FUEL PUMP

main23225-0H020i9NRFTS,1ZRFE,2ZRFE,8ZRFXE..NRE181,ZRE18#,ZWE182201406-201907

(L)

main23225-21020i9NRFTS,1ZRFE,2ZRFE,8ZRFXE..NRE181,ZRE18#,ZWE182201406-201907

(J)

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182201406-201907

main23280-36020i9NRFTS..NRE181201610-201907

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2ZRFE..ZRE182201406-201802

NO.1:REFER ILLUST.

main90301-15024i2ZRFE..ZRE182201406-201802

NO.2:REFER ILLUST.

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-02630iZRE181201406-201505

main77020-02631iZRE181201506

main77020-02640iZRE182201406-201505

main77020-02641iZRE182201506-201610

main77020-02730iZWE182201512-201806

main77020-02870iNRE181201610-201907

main77020-02880iZRE182201610-201802

main77020-02B80iZWE182201806-201907

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-02290iZRE18#201406-201505

main77024-02300iZWE182201512-201806

main77024-02340iZRE181;ZRE182..6F201506-201610

main77024-02370iNRE181,ZRE182201610-201907

main77024-02520iZWE182201806-201907

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-02030iZRE182..CVT201406-201610

main77026-02080iZRE182201610-201802

main77026-02090iNRE181201610-201907

main77026-02100iZWE182201512-201907

77100TANK ASSY, FUEL

main77001-02310iZRE182201406-201610

main77001-02720iNRE181,ZRE182201610-201907

MARK=77001-02720

main77001-02770iZWE182201512-201806

main77001-02810iNRE181,ZRE182201610-201907

MARK=77001-02810

main77001-02B50iZWE182201806-201907

77144RETAINER, FUEL PUMP GAUGE

main77144-0H010iZRE182..CVT201406-201806

main77144-30030iNRE181,ZRE182201610-201906

(J)

main77144-F4010iZWE182201806-201906

main77144-F4010iNRE181,ZRE182201610-201907

(L)

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0D030iZRE182..6F;ZRE181,ZWE182201406-201806

main77169-47040iZWE182201610-201808

main77169-F4050iNRE181,ZWE182201808-201907

77174SUPPORT, FUEL SUCTION, NO.1

main77174-0F010iNRE181,ZRE182,ZWE182201406-201907

(L)

main77174-75010iNRE181,ZRE18#,ZWE182201406-201907

(J)

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-02080iNRE181,ZRE18#201406-201802

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-02520iNRE181201406-201802

main77201-02550iZWE182201512-201703

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02170iNRE181,ZRE182201406-201907

main77209-02270iZWE182201512-201907

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-02100iNRE181,ZRE18#201406-201802

main77213-02130iZWE182201512-201703

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-02150iNRE181,ZWE182201406-201802

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-02070iNRE181,ZRE18#,ZWE182201406-201802

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-02030iNRE181201406-201802

main77226-02040iZWE182201512-201703

77229CCLAMP, BREATHER TUBE

main77229-12070iNRE181,ZRE18#,ZWE182201406-201802

77241WCLIP, TUBE JOINT

main77241-32060iZRE182..CVT201406-201610

main77241-33011iNRE181,ZWE182201512-201907

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-02230iZRE18#201406-201510

main77277-12180iNRE181,ZRE18#,ZWE182201510-201802

77281ACLAMP, FUEL FILLER PIPE

main77281-12100iNRE181,ZRE18#201406-201802

main77281-47060iZWE182201512-201703

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-02220iNRE181,ZRE18#,ZWE182201406-201802

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-52030iZRE18#201406-201510

77310ACAP ASSY, FUEL TANK

main77300-02030iNRE181,ZRE18#,ZWE182201406-201802

77391ARING, FUEL INLET BOX

main77391-0R030iNRE181,ZRE18#,ZWE182201406-201802

77512BRACKET, FUEL TANK, REAR

main77512-35140iNRE181,ZRE18#,ZWE182201510-201802

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-02050iZRE18#201406-201609

main77606-02051iZRE182201610-201802

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iZWE182201406-201907

77652ACUSHION, FUEL TANK, NO.2

main77652-45020iNRE181201406-201802

77654ACUSHION, FUEL TANK, NO.4

main77654-02040iNRE181,ZRE18#201406-201802

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-02060iNRE181,ZRE182201406-201907

main77754-02160iZWE182201512-201806

main77754-02161iZWE182201806-201907

77785HARNESS, FUEL PUMP

main77785-0F031iNRE181,ZRE18#,ZWE182201406-201907

(L)

main77785-12010iNRE181,ZRE182,ZWE182201406-201907

(J)

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906A14

main90119-06A14

9011910909

main90119-10909

9011910951

main90119-10951

9011910967

main90119-10967

9011910978

main90119-10978

90119C0047

main90119-C0047

90119C0064

main90119-C0064

9018206012

main90182-06012

9030108020

main90301-08020

90301C0043

main90301-C0043

9046022002

main90460-22002

9046046005

main90460-46005

9046050008

main90460-50008

9046612001

main90466-12001

90466C0027

main90466-C0027

9046712056

main90467-12056

91626B0614

main91626-B0614

9613251300

main96132-51300

52 parts on this diagram · 10 diagrams in section
