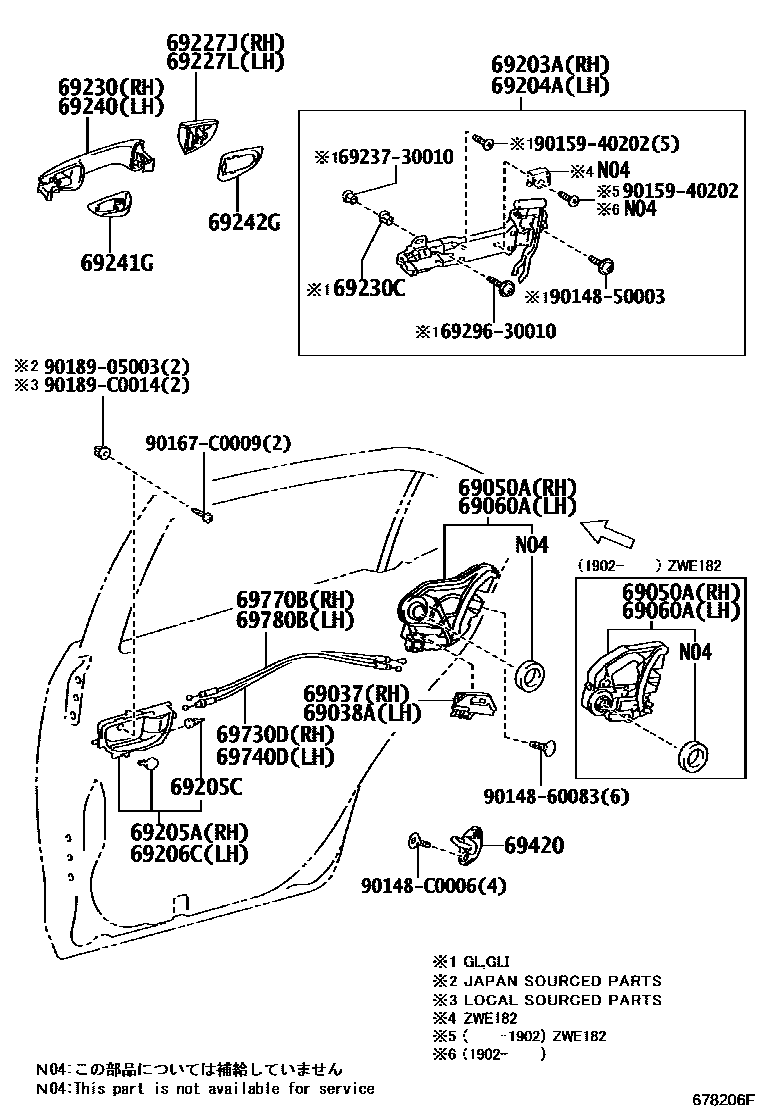

REAR DOOR LOCK & HANDLE

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-02060iNRE181,ZRE18#,ZWE182201406-201901

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-02060iNRE181201406-201901

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-02450iZWE182201406-201901

main69050-02460iNRE181,ZRE181..GL201406

main69050-06111iZWE182201901

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-02450iZWE182201406-201901

main69060-02460iNRE181,ZRE181..GL201406

main69060-06111iZWE182201901

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-02280iNRE181,ZRE181..GL,GLI201406

main69203-02290iZRE182201406-201802

main69203-02340iZWE182..GLI201512-201901

main69203-02350iZWE182..GLXI,PREM201512-201901

main69203-02490iZWE182..GLI201901

main69203-02500iZWE182..GLI201901

VFM PACKAGE(*CRC & *SES & *MR & *LES)

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-02280iNRE181,ZRE181..GL,GLI201406

main69204-02290iNRE181,ZRE18#..GLXI,PREM201406-201802

main69204-02340iZWE182..GLI201512-201901

main69204-02350iZWE182..GLXI,PREM201512-201901

main69204-02490iZWE182..GLI201901

main69204-02500iZWE182..GLXI,PREM201901

VFM PACKAGE(*CRC & *SES & *MR & *LES)

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-02260-A0iNRE181,ZRE181..GL201406-201704

IVORY,TRIM01

main69205-02260-A0iNRE181,ZRE18#,ZWE182..GLI,GLXI,PREM201406-201703

IVORY,TRIM0#

main69205-02260-A1iZRE181201704

FLAXEN,TRIM00

main69205-02260-A1iZRE181201704-201802

FLAXEN,TRIM0#

main69205-02260-C0iNRE181,ZWE182201406-201802

BLACK,TRIM2#

main69205-02260-C0iNRE181,ZRE181..GL201406

BLACK,TRIM00,2#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04027iNRE181,ZWE182201406-201802

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-02260-A0iNRE181,ZRE181..GL201406-201704

IVORY,TRIM01

main69206-02260-A0iNRE181,ZRE18#,ZWE182..GLI,GLXI,PREM201406-201703

IVORY,TRIM0#

main69206-02260-A1iZRE181201704-201802

FLAXEN,TRIM0#

main69206-02260-A1iZRE181201704

FLAXEN,TRIM00

main69206-02260-C0iNRE181,ZRE18#,ZWE182..GLI,GLXI,PREM201406-201802

BLACK,TRIM2#

main69206-02260-C0iNRE181,ZRE181..GL201406

BLACK,TRIM00,2#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69250-02130-A0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201802

SUPER WHITE 2,040

main69250-02130-A1iZRE182201610-201802

WHITE PEARL CS.,070

main69250-02130-B0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201802

SILVER ME.,1F7

main69250-02130-B1iNRE181,ZRE18#..GLXI,PREM201406-201703

GRAY ME.,1G3

main69250-02130-C0iZRE182201406-201802

BLACK MC.,209

main69250-02130-D0iNRE181,ZWE182..GLXI,PREM201406-201802

RED M.M.,3R3

main69250-02130-E0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201802

AVANT-GARDE BRONZE ME.,4V8

main69250-02130-E1iNRE181,ZWE182..GLXI,PREM201704-201811

DK.BROWN M.M.,4X5

main69250-02130-F0iZRE182201704-201902

LT.YELLOW M.M.,5B2

main69250-02130-H0iZWE182..GLXI,PREM201512-201905

GRAYISH TEAL ME.,784

main69250-02130-J0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201703

BLUE ME.,8T7

main69250-02210-A0iNRE181,ZRE181,ZWE182..GL,GLI201406

SUPER WHITE 2,040

main69250-02210-A1iNRE181,ZWE182..GL,GLI201610

WHITE PEARL CS.,070

main69250-02210-B0iNRE181,ZWE182..GL,GLI201406

SILVER ME.,1F7

main69250-02210-B1iNRE181,ZRE181..GL,GLI201406-201803

GRAY ME.,1G3

main69250-02210-C0iNRE181,ZRE181,ZWE182..GL,GLI201406

BLACK MC.,209

main69250-02210-D0iNRE181,ZWE182..GL,GLI201406

RED M.M.,3R3

main69250-02210-E0iNRE181,ZRE181,ZWE182..GL,GLI201406

AVANT-GARDE BRONZE ME.,4V8

main69250-02210-E1iNRE181,ZWE182..GL,GLI201704-201811

DK.BROWN M.M.,4X5

main69250-02210-F0iNRE181,ZWE182..GL,GLI201704-201902

LT.YELLOW M.M.,5B2

main69250-02210-H0iZWE182..GLI201512-201905

GRAYISH TEAL ME.,784

main69250-02210-J0iNRE181,ZRE181,ZWE182..GL,GLI201406-201803

BLUE ME.,8T7

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69250-02140-A0iZRE182201406-201802

SUPER WHITE 2,040

main69250-02140-A1iNRE181,ZWE182..GLXI,PREM201610-201802

WHITE PEARL CS.,070

main69250-02140-B0iNRE181,ZWE182..GLXI,PREM201406-201802

SILVER ME.,1F7

main69250-02140-B1iNRE181,ZRE18#..GLXI,PREM201406-201703

GRAY ME.,1G3

main69250-02140-C0iNRE181,ZWE182..GLXI,PREM201406-201802

BLACK MC.,209

main69250-02140-D0iNRE181,ZWE182..GLXI,PREM201406-201802

RED M.M.,3R3

main69250-02140-E0iZRE182201406-201802

AVANT-GARDE BRONZE ME.,4V8

main69250-02140-E1iZRE182201704-201811

DK.BROWN M.M.,4X5

main69250-02140-F0iZRE182201704-201902

LT.YELLOW M.M.,5B2

main69250-02140-H0iZWE182..GLXI,PREM201512-201905

GRAYISH TEAL ME.,784

main69250-02140-J0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201703

BLUE ME.,8T7

main69250-02220-A0iNRE181,ZRE181,ZWE182..GL,GLI201406

SUPER WHITE 2,040

main69250-02220-A1iNRE181,ZWE182..GL,GLI201610

WHITE PEARL CS.,070

main69250-02220-B0iNRE181,ZWE182..GL,GLI201406

SILVER ME.,1F7

main69250-02220-B1iNRE181,ZRE181..GL,GLI201406-201803

GRAY ME.,1G3

main69250-02220-C0iNRE181,ZRE181,ZWE182..GL,GLI201406

BLACK MC.,209

main69250-02220-D0iNRE181,ZWE182..GL,GLI201406

RED M.M.,3R3

main69250-02220-E0iNRE181,ZWE182..GL,GLI201406

AVANT-GARDE BRONZE ME.,4V8

main69250-02220-E1iNRE181,ZWE182..GL,GLI201704-201811

DK.BROWN M.M.,4X5

main69250-02220-F0iNRE181,ZWE182..GL,GLI201704-201902

LT.YELLOW M.M.,5B2

main69250-02220-H0iZWE182..GLI201512-201905

GRAYISH TEAL ME.,784

main69250-02220-J0iNRE181,ZRE181,ZWE182..GL,GLI201406-201803

BLUE ME.,8T7

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-02240-A0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201802

SUPER WHITE 2,040

main69210-02240-A1iNRE181,ZRE182,ZWE182..GLXI,PREM201610-201802

WHITE PEARL CS.,070

main69210-02240-B0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201802

SILVER ME.,1F7

main69210-02240-B1iNRE181,ZRE18#..GLXI,PREM201406-201703

GRAY ME.,1G3

main69210-02240-C0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201802

BLACK MC.,209

main69210-02240-D0iNRE181,ZWE182..GLXI,PREM201406-201802

RED M.M.,3R3

main69210-02240-E0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201802

AVANT-GARDE BRONZE ME.,4V8

main69210-02240-E1iZRE182201704-201811

DK.BROWN M.M.,4X5

main69210-02240-F0iNRE181,ZWE182..GLXI,PREM201704-201902

LT.YELLOW M.M.,5B2

main69210-02240-H0iZWE182..GLXI,PREM201512-201905

GRAYISH TEAL ME.,784

main69210-02240-J0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201703

BLUE ME.,8T7

main69210-02250-A0iNRE181,ZRE181,ZWE182..GL,GLI201406

SUPER WHITE 2,040

main69210-02250-A1iNRE181,ZRE181,ZWE182..GL,GLI201610

WHITE PEARL CS.,070

main69210-02250-B0iNRE181,ZRE181,ZWE182..GL,GLI201406

SILVER ME.,1F7

main69210-02250-B1iNRE181,ZRE181..GL,GLI201406-201803

GRAY ME.,1G3

main69210-02250-C0iNRE181,ZWE182..GL,GLI201406

BLACK MC.,209

main69210-02250-D0iNRE181,ZWE182..GL,GLI201406

RED M.M.,3R3

main69210-02250-E0iNRE181,ZRE181,ZWE182..GL,GLI201406

AVANT-GARDE BRONZE ME.,4V8

main69210-02250-E1iNRE181,ZWE182..GL,GLI201704-201811

DK.BROWN M.M.,4X5

main69210-02250-F0iNRE181,ZWE182..GL,GLI201704-201902

LT.YELLOW M.M.,5B2

main69210-02250-H0iZWE182..GLI201512-201905

GRAYISH TEAL ME.,784

main69210-02250-J0iNRE181,ZRE181,ZWE182..GL,GLI201406-201803

BLUE ME.,8T7

69230CBUSH(FOR REAR DOOR OUTSIDE HANDLE)

main69239-30010iNRE181,ZRE181,ZWE182..GL,GLI201406

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-02180-A0iNRE181,ZWE182..GLXI,PREM201406-201802

SUPER WHITE 2,040

main69220-02180-A1iZRE182201610-201802

WHITE PEARL CS.,070

main69220-02180-B0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201802

SILVER ME.,1F7

main69220-02180-B1iNRE181,ZRE18#..GLXI,PREM201406-201703

GRAY ME.,1G3

main69220-02180-C0iNRE181,ZWE182..GLXI,PREM201406-201802

BLACK MC.,209

main69220-02180-D0iZRE182201406-201802

RED M.M.,3R3

main69220-02180-E0iNRE181,ZWE182..GLXI,PREM201406-201802

AVANT-GARDE BRONZE ME.,4V8

main69220-02180-E1iNRE181,ZWE182..GLXI,PREM201704-201811

DK.BROWN M.M.,4X5

main69220-02180-F0iZRE182201704-201902

LT.YELLOW M.M.,5B2

main69220-02180-H0iZWE182..GLXI,PREM201512-201905

GRAYISH TEAL ME.,784

main69220-02180-J0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201703

BLUE ME.,8T7

main69220-02190-A0iNRE181,ZWE182..GL,GLI201406

SUPER WHITE 2,040

main69220-02190-A1iNRE181,ZWE182..GL,GLI201610

WHITE PEARL CS.,070

main69220-02190-B0iNRE181,ZWE182..GL,GLI201406

SILVER ME.,1F7

main69220-02190-B1iNRE181,ZRE181..GL,GLI201406-201803

GRAY ME.,1G3

main69220-02190-C0iNRE181,ZWE182..GL,GLI201406

BLACK MC.,209

main69220-02190-D0iNRE181,ZRE181,ZWE182..GL,GLI201406

RED M.M.,3R3

main69220-02190-E0iNRE181,ZWE182..GL,GLI201406

AVANT-GARDE BRONZE ME.,4V8

main69220-02190-E1iNRE181,ZWE182..GL,GLI201704-201811

DK.BROWN M.M.,4X5

main69220-02190-F0iNRE181,ZWE182..GL,GLI201704-201902

LT.YELLOW M.M.,5B2

main69220-02190-H0iZWE182..GLI201512-201905

GRAYISH TEAL ME.,784

main69220-02190-J0iNRE181,ZRE181,ZWE182..GL,GLI201406-201803

BLUE ME.,8T7

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-02200iNRE181,ZRE18#,ZWE182201406-201802

RH

main69242-02190iZRE182201406-201802

LH

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69241-02210iNRE181,ZRE18#,ZWE182201406-201802

RH

main69242-02200iNRE181,ZRE18#,ZWE182201406-201802

LH

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0D020iZRE182201406-201802

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-02280iNRE181,ZRE18#,ZWE182201406-201901

main69730-02440iZWE182201901

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-02280iNRE181,ZRE18#,ZWE182201406-201901

main69730-02440iZWE182201901

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-02380iNRE181,ZRE18#,ZWE182201406-201901

main69770-02540iZWE182201901

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-02380iNRE181,ZRE18#,ZWE182201406-201901

main69770-02540iZWE182201901

6923730010RETAINER, DOOR OUTSIDE HANDLE

main69237-30010

6929630010SCREW, DOOR INSIDE HANDLE

main69296-30010

9014850003

main90148-50003

9014860083

main90148-60083

90148C0006

main90148-C0006

9015940202

main90159-40202

90167C0009

main90167-C0009

9018905003

main90189-05003

90189C0014

main90189-C0014

30 parts on this diagram · 1 diagram in section
