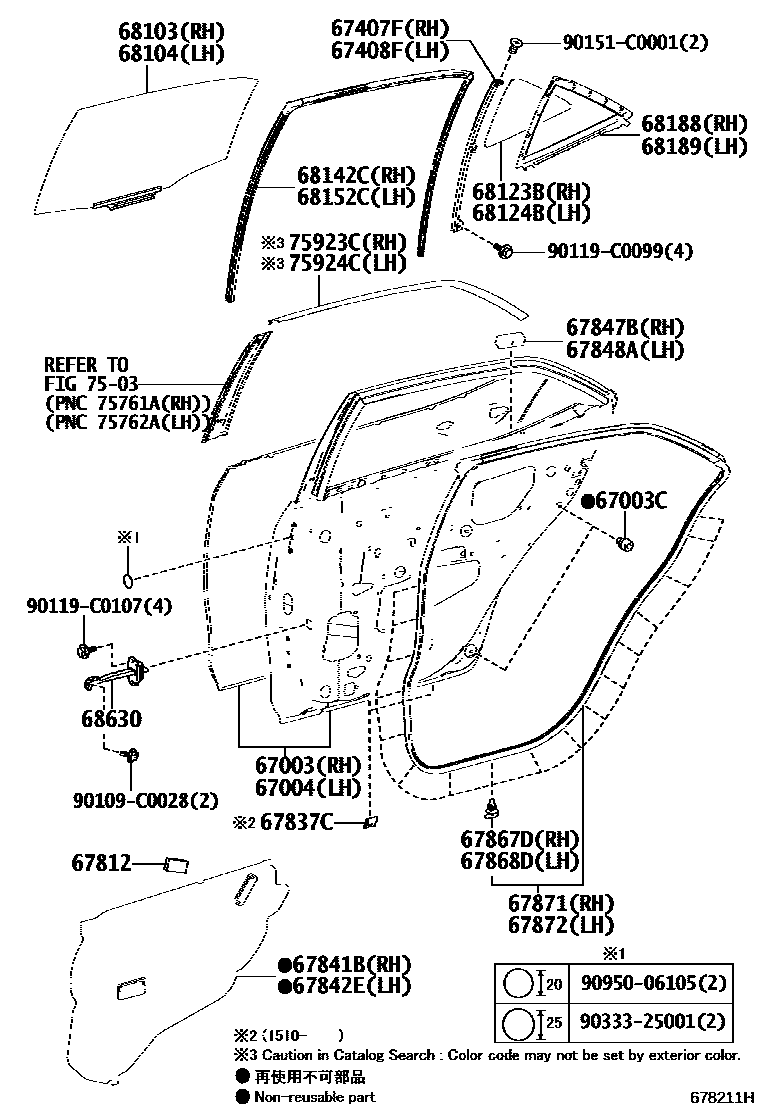

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-02490iZWE182..GLI;NRE181,ZRE181..GL201406

main67003-02500iZRE182201704-201802

67003CCUSHION, REAR DOOR PANEL

main90541-09124×4iZRE182201704-201802

(J)

main90541-C0003×4iZRE182201704-201802

(L)

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-02490iZWE182..GLI;NRE181,ZRE181..GL201406

main67004-02500iZRE182201704-201802

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-02170iZRE182201704-201802

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-02170iZRE182201704-201802

67812PAD, REAR DOOR SILENCER

main67811-02390×2iZRE182201704-201802

67837CSEAL, REAR DOOR DUST PROOF

main67837-02150×4iZRE182201704-201802

(L)

main67837-48050×4iZRE182201704-201802

(J)

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-02330iZRE18#201406-201510

main67841-02380iZRE18#,ZWE182201510-201602

main67841-02410iZWE182201704

main67841-02510iZRE182201704-201802

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-02310iZRE18#201406-201510

main67842-02350iZRE18#,ZWE182201510-201602

main67842-02380iZWE182201704

main67842-02510iZRE182201704-201802

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-02080iZRE182201704-201802

67848ASEAL, REAR DOOR VENT, LH NO.1

main67847-02080iZRE182201704-201802

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67868-0D030×18iZRE182201704-201802

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×18iZRE182201704-201802

67871WEATHERSTRIP, REAR DOOR, RH

main67871-02290iZRE182201704-201802

67872WEATHERSTRIP, REAR DOOR, LH

main67872-02290iZRE182201704-201802

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-02520iZRE182201704-201802

MARK=ASAHI(E000011)

main68103-02540iZRE182201704-201802

MARK=FUYAO(E000970)

main68103-02680iNRE181,ZWE182; ZRE181201708

MARK=FUYAO(E006888)

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-02530iZRE182201704-201802

MARK=ASAHI(E000011)

main68104-02550iZRE182201704-201802

MARK=FUYAO(E000970)

main68104-02680iNRE181,ZWE182; ZRE181201708

MARK=FUYAO(E006888)

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-02440iZRE182201704-201802

MARK=ASAHI(E000011)

main68123-02460iZRE182201704-201802

MARK=FUYAO(E000970)

main68123-02590iNRE181,ZWE182; ZRE181201708

MARK=FUYAO(E006888)

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-02440iZRE182201704-201802

MARK=ASAHI(E000011)

main68124-02460iZRE182201704-201802

MARK=FUYAO(E000970)

main68124-02590iNRE181,ZWE182; ZRE181201708

MARK=FUYAO(E006888)

68142CRUN, REAR DOOR GLASS, RH

main68142-02260iZRE182201704-201802

68152CRUN, REAR DOOR GLASS, LH

main68152-02260iZRE182201704-201802

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-02210iZRE182201704-201802

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-02210iZRE182201704-201802

68630CHECK ASSY, REAR DOOR

main68630-02310×2iZRE182201704-201802

7503SIDE MOULDING

→ Go to FIG 75-03

75923CTAPE, BLACK OUT, NO.2 RH

main75923-02270iZRE181201707

75924CTAPE, BLACK OUT, NO.2 LH

main75924-02270iZRE181201707

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90119C0107

main90119-C0107

90151C0001

main90151-C0001

9033325001

main90333-25001

9095006105

main90950-06105
