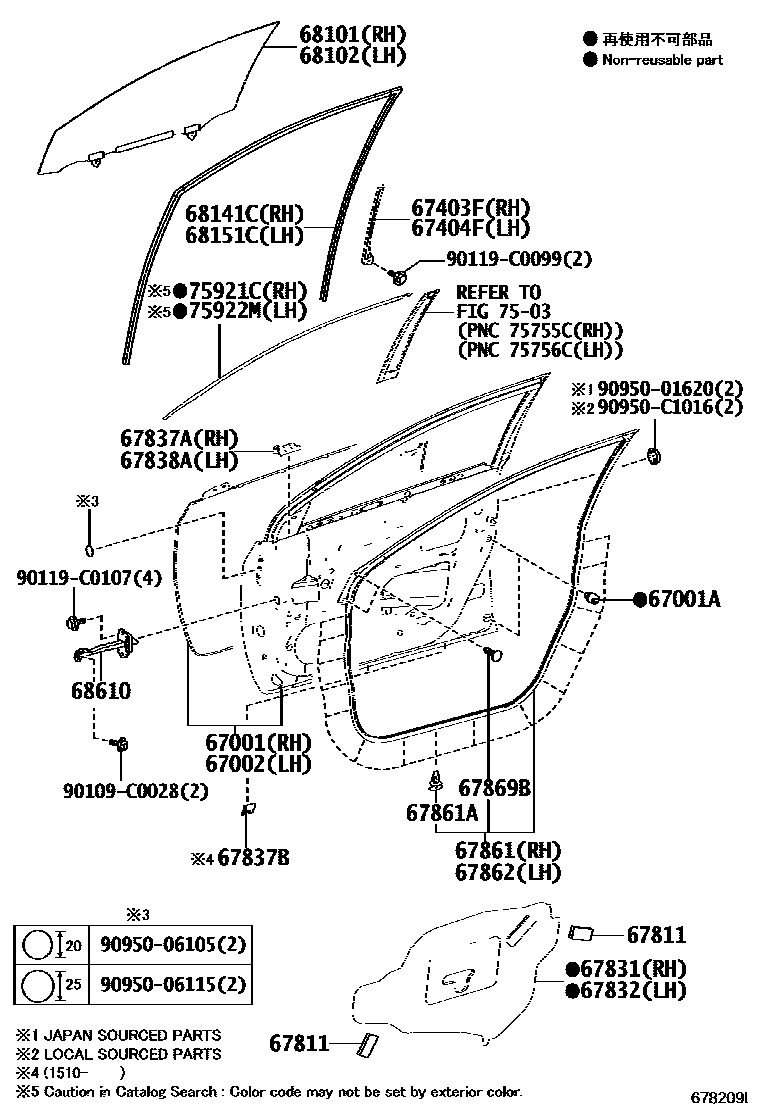

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-02490iZWE182..GLI;NRE181,ZRE181..GL201406

main67001-02500supersedes 67001-02520iZRE182201704-201802

main67001-02520iNRE181..GLI; ZWE182..GLI201704

MOON ROOF PACKAGE(*MR & *LES)

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×4iZRE182201704-201802

(J)

main90541-C0003×4iZRE182201704-201802

(L)

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-02490iZWE182..GLI;NRE181,ZRE181..GL201406

main67002-02500supersedes 67002-02520iZRE182201704-201802

main67002-02520iNRE181..GLI; ZWE182..GLI201704

MOON ROOF PACKAGE(*MR & *LES)

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-02220iZRE182201704-201802

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-02220iZRE182201704-201802

67811PAD, FRONT DOOR SILENCER

main67811-02390×4iZRE182201704-201802

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-02380iZRE18#201406-201510

main67831-02420iZRE18#,ZWE182201510-201602

main67831-02440iZWE182201704

main67831-02520iZRE182201704-201802

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-02380iZRE18#201406-201510

main67832-02420iZRE18#,ZWE182201510-201602

main67832-02440iZWE182201704

main67832-02520iZRE182201704-201802

67837ASEAL, FRONT DOOR VENT, RH

main67837-02100iZRE182201704-201802

67837BSEAL, FRONT DOOR DUST PROOF

main67837-02150×4iZRE182201704-201802

(L)

main67837-48050×4iZRE182201704-201802

(J)

67838ASEAL, FRONT DOOR VENT, LH

main67838-02070iZRE182201704-201802

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-02320iZRE182201704-201802

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-12150×30iZRE182201704-201802

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-02320iZRE182201704-201802

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030×4iZRE182201704-201802

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-02530iNRE181,ZWE182; ZRE181201708

MARK=FUYAO(E000970)

main68101-02660iNRE181,ZWE182; ZRE181201708

MARK=FUYAO(E006888)

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-02530iNRE181,ZWE182; ZRE181201708

MARK=FUYAO(E000970)

main68102-02660iNRE181,ZWE182; ZRE181201708

MARK=FUYAO(E006888)

68141CRUN, FRONT DOOR GLASS, RH

main68141-02200iZRE182201704-201802

68151CRUN, FRONT DOOR GLASS, LH

main68151-02290iZRE182201704-201802

68610CHECK ASSY, FRONT DOOR

main68610-02320×2iZRE182201704-201802

7503SIDE MOULDING

→ Go to FIG 75-03

75921CTAPE, BLACK OUT, NO.1 RH

main75921-02240iNRE181,ZRE18#,ZWE182201406-201612

main75921-02241iZRE181201707

75922MTAPE, BLACK OUT, NO.1 LH

main75922-02240iNRE181,ZRE18#,ZWE182201406-201612

main75922-02241iZRE181201707

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90119C0107

main90119-C0107

9095001620

main90950-01620

9095006105

main90950-06105

9095006115

main90950-06115

90950C1016

main90950-C1016

30 parts on this diagram · 2 diagrams in section
