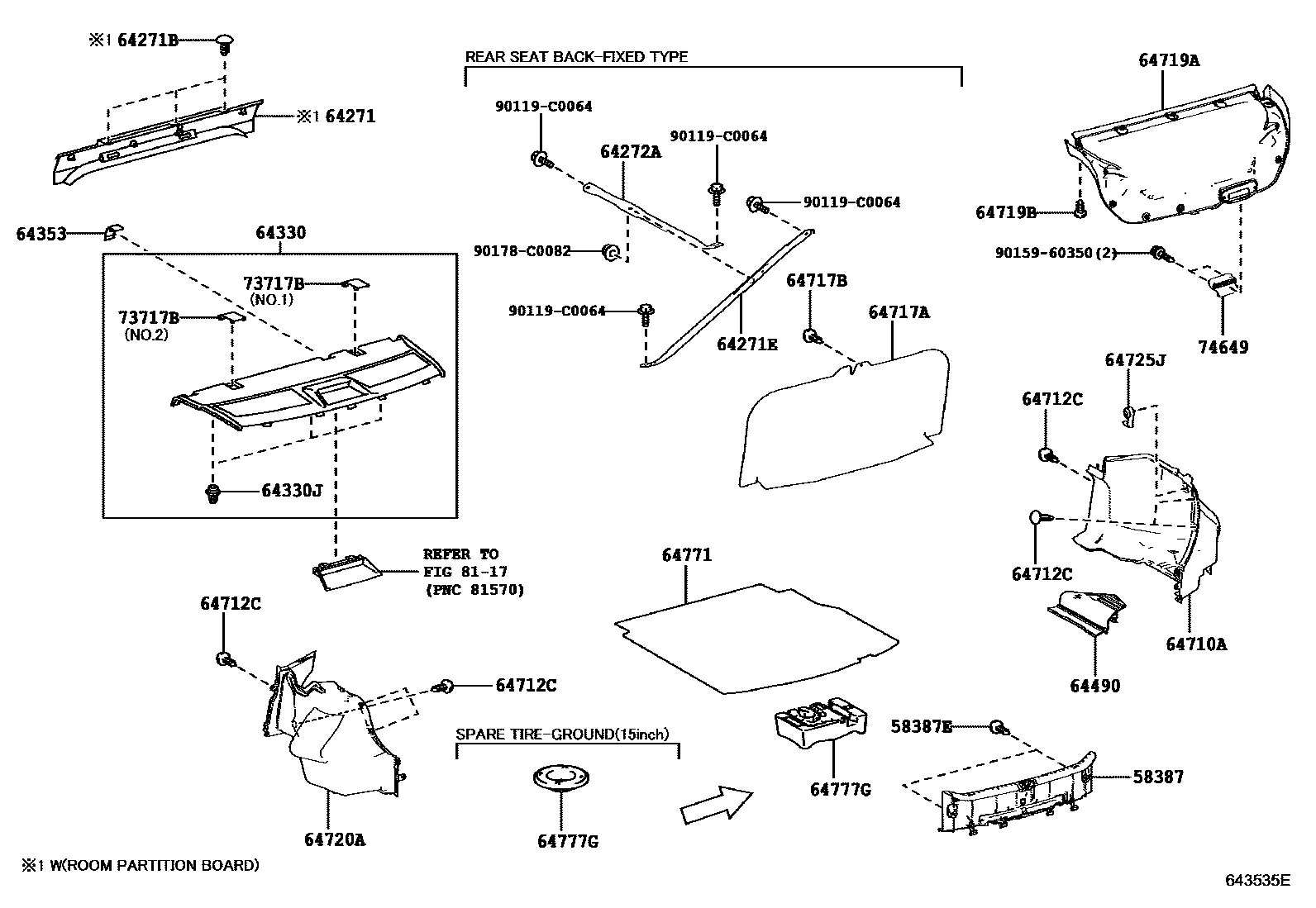

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
BLACK
BLACK
BLACK
64271BOARD, ROOM PARTITION, NO.1
BLACK,TRIM0#,2#; LEATHER PACKAGE,BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
64271BCLIP(FOR ROOM PARTITION BOARD)
BLACK
BLACK; LEATHER PACKAGE,BLACK
BLACK
64271EPANEL, ROOM PARTITION
64272APANEL, ROOM PARTITION, LH
64330PANEL ASSY, PACKAGE TRAY TRIM
IVORY,TRIM01
BLACK,TRIM01,2#
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#; IVORY,TRIM01
BLACK,TRIM00,2#; BLACK,TRIM2#
BLACK,TRIM0#,2#
IVORY,TRIM0#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
64353COVER, PACKAGE TRAY TRIM BELT HOLE
IVORY,TRIM01
BLACK,TRIM00,2#
64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
BLACK
BLACK
BLACK
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
BLACK
BLACK
BLACK
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
BLACK
BLACK
BLACK
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
64725JHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
64771COVER, SPARE WHEEL
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
64777GCUSHION, SPARE WHEEL
73717BCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
IVORY,TRIM01,NO.1:REFER ILLUST.
BLACK,TRIM00,2#,NO.1:REFER ILLUST.
IVORY,TRIM01,NO.2:REFER ILLUST.
BLACK,TRIM0#,2#,NO.2:REFER ILLUST.
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
8117CENTER STOP LAMP
90119C0064
main90119-C0064
9015960350
main90159-60350
90178C0082
main90178-C0082
26 parts on this diagram · 2 diagrams in section
