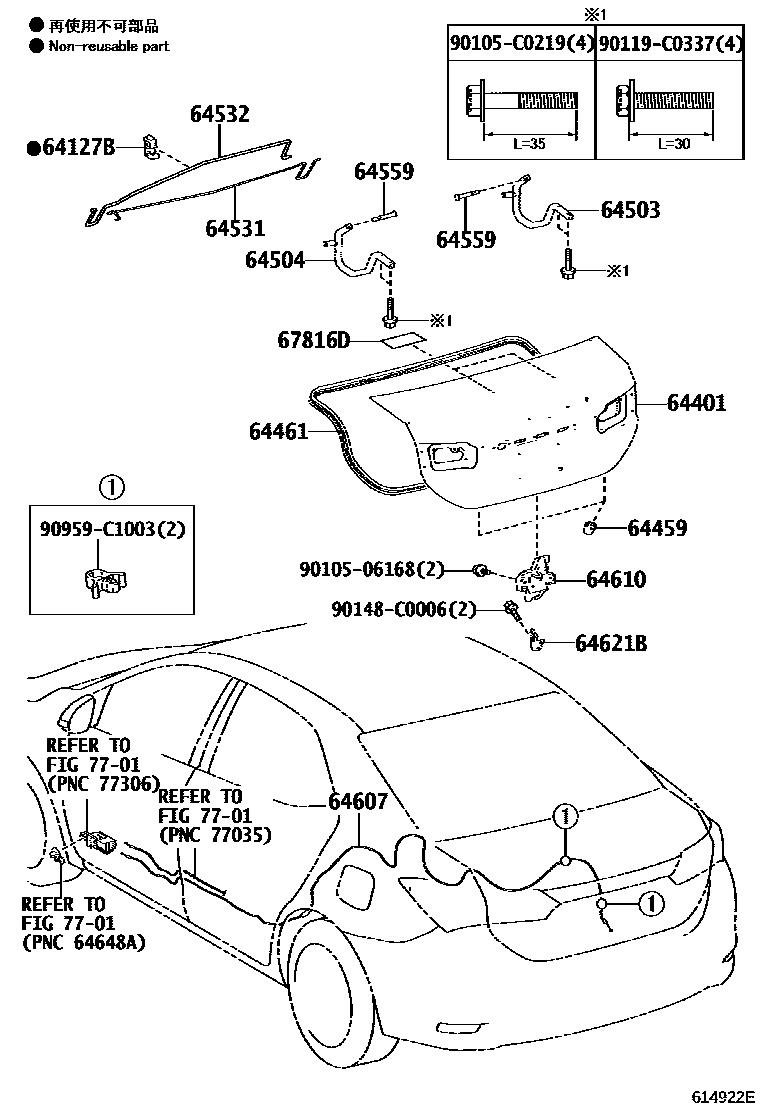

LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-33071iNRE181,ZWE182201406-201802

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-02A50iZWE182..GLI201512-201802

main64401-02D50iZRE18#..GLXI,PREM201406-201504

main64401-02D51iNRE181,ZRE18#,ZWE182..GLXI,PREM201504-201703

main64401-02D60iZRE181..GL,GLI201406-201504

main64401-02D61iNRE181,ZRE181..GL,GLI201504

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09069iNRE181,ZWE182201406-201802

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-02250iZRE18#201406-201407

main64461-02260iNRE181,ZRE18#,ZWE182201407-201802

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-02200iZRE18#201406-201504

main64503-02201iNRE181,ZRE18#,ZWE182201504-201802

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-02200iZRE18#201406-201504

main64503-02201iNRE181,ZRE18#,ZWE182201504-201802

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-02350iZRE18#201406-201504

main64531-02351iZRE182201504-201802

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-02350iZRE18#201406-201504

main64532-02351iZRE182201504-201802

64559PIN, LUGGAGE DOOR HINGE

main64559-12040iNRE181,ZWE182201406-201802

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-02460iZRE18#201406-201409

main64607-02461iNRE181,ZRE18#,ZWE182201410-201802

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-02120iZRE18#201406-201410

main64600-02121iZRE182201411-201802

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-0D040iNRE181,ZRE18#,ZWE182201406-201802

67816DSHEET, BACK DOOR PANEL SILENCER

main67816-02050iZRE182201406-201803

main67816-02051iNRE181,ZWE182201803

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9010506168

main90105-06168

90105C0219

main90105-C0219

90119C0337

main90119-C0337

90148C0006

main90148-C0006

90959C1003

main90959-C1003

19 parts on this diagram · 1 diagram in section
