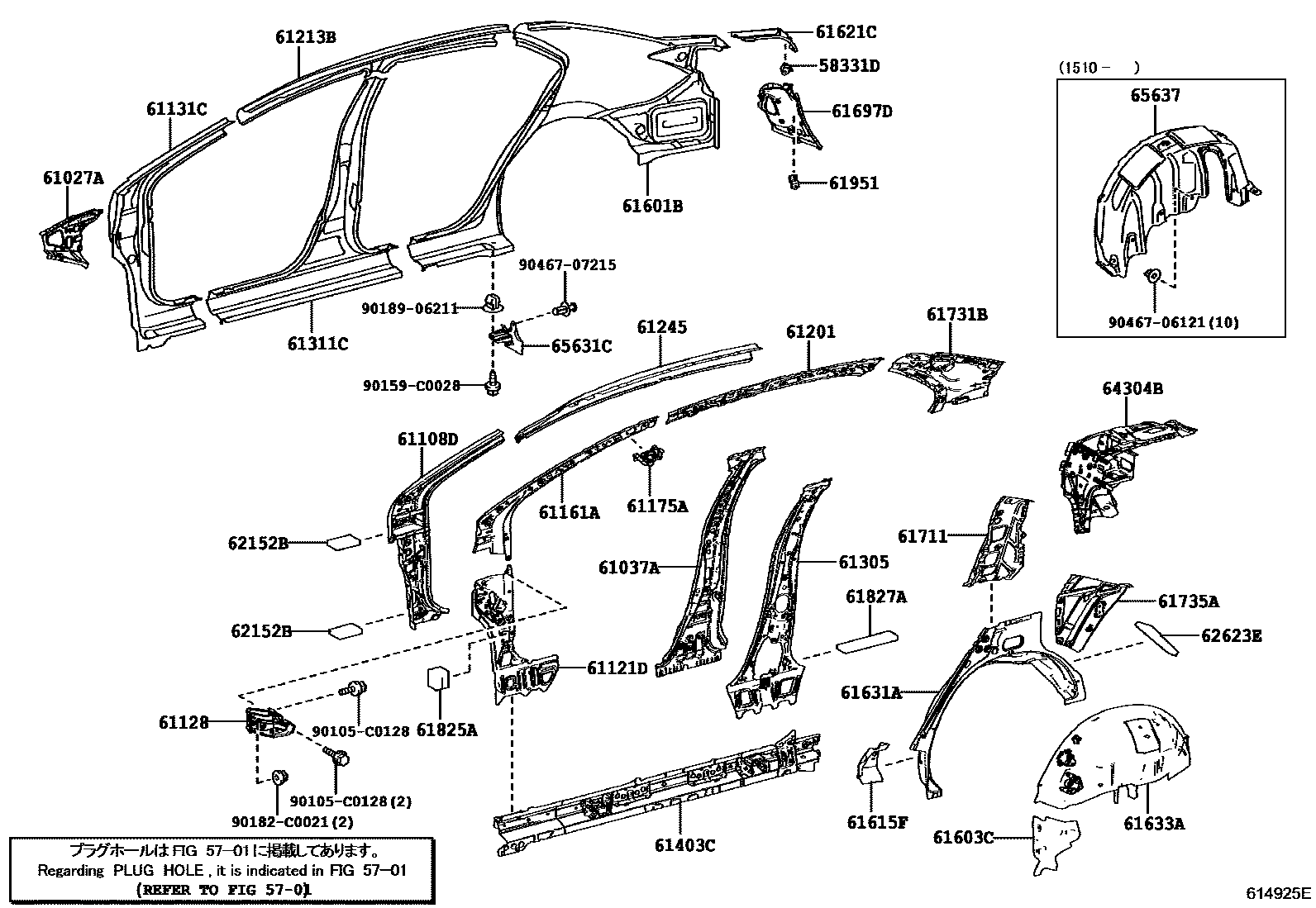

SIDE MEMBER
5701HOLE PLUG
58331DBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61108DREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH
61121DPANEL, COWL SIDE, RH
61128REINFORCEMENT, COWL SIDE PANEL, RH
61131CPILLAR, FRONT BODY, OUTER RH
61161APILLAR, FRONT BODY, INNER RH
61175AREINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61311CPANEL, REAR BODY FRONT OUTSIDE, RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61601BPANEL SUB-ASSY, QUARTER, RH
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
61615FREINFORCEMENT, QUARTER PANEL, OUTER RH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
LEATHER PACKAGE
61697DHOUSING, QUARTER PANEL END, RH
61711PANEL, ROOF SIDE, OUTER RH
61731BPANEL, ROOF SIDE, INNER RH
61735APANEL, ROOF SIDE, INNER REAR RH
61825APLATE, NOISE CONTROL, NO.2
61827APLATE, NOISE CONTROL, NO.4
61951BRACKET, SIDE TRIM, RH
62152BPAD, COWL SIDE SILENCER, NO.2
62623EPAD, QUARTER WHEEL HOUSE, INNER REAR RH
64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH
LEATHER PACKAGE
LEATHER PACKAGE
65631CPLATE, REAR WHEEL HOUSE, FRONT RH
65637LINER, REAR WHEEL HOUSE, RH
90105C0128
main90105-C0128
90159C0028
main90159-C0028
90182C0021
main90182-C0021
9018906211
main90189-06211
9046706121
main90467-06121
9046707215
main90467-07215
40 parts on this diagram · 2 diagrams in section
