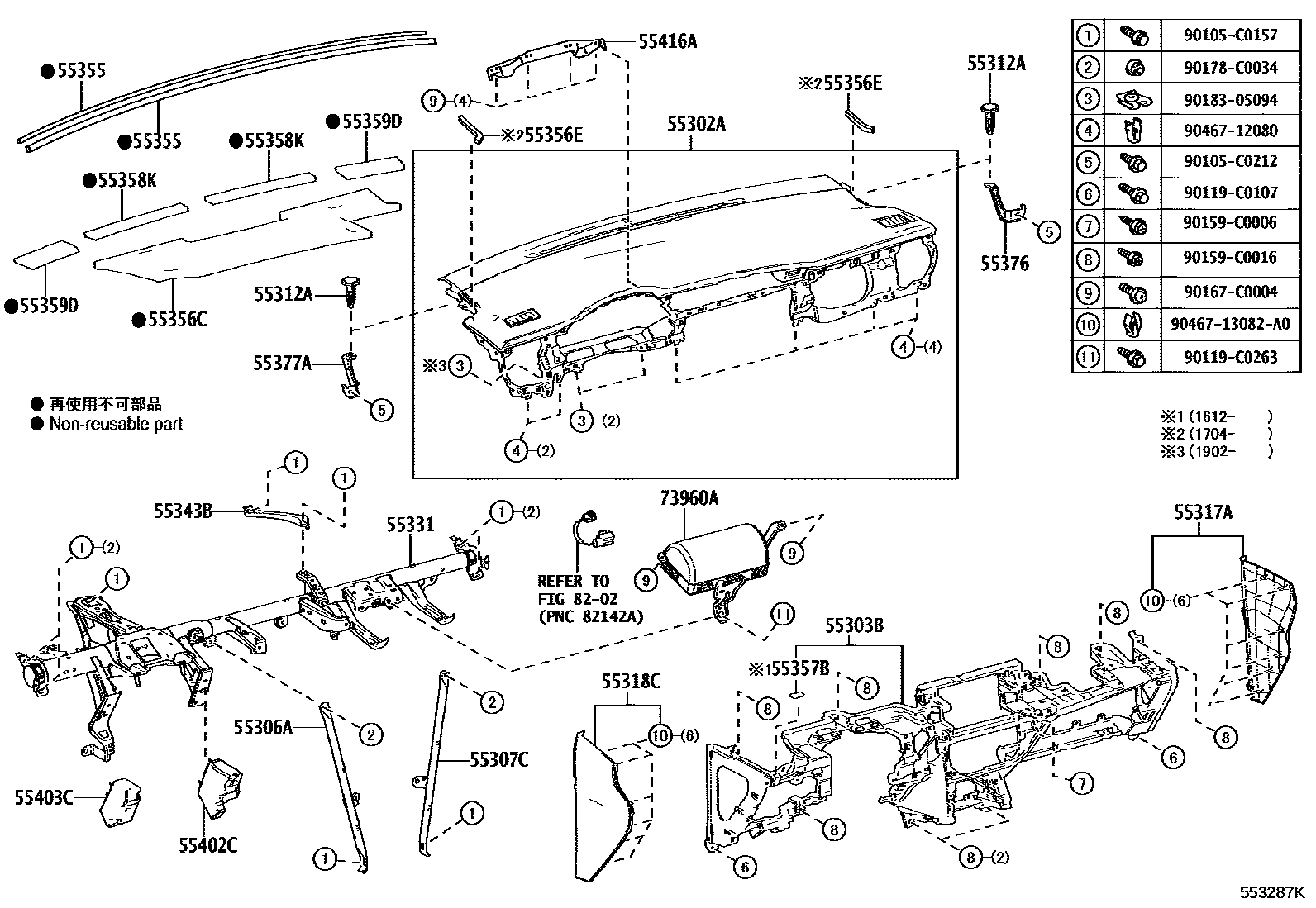

INSTRUMENT PANEL & GLOVE COMPARTMENT
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
BLACK,TRIM0#,2#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
IVORY,TRIM0#
BLACK,TRIM2#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55317APANEL, INSTRUMENT SIDE, RH
IVORY,TRIM01
IVORY,TRIM0#
BLACK,TRIM2#
BLACK,TRIM00,2#
BLACK,TRIM0#,2#
55318CPANEL, INSTRUMENT SIDE, LH
IVORY,TRIM01
IVORY,TRIM0#
BLACK,TRIM0#,2#
BLACK,TRIM00,2#
BLACK,TRIM2#
55331REINFORCEMENT, INSTRUMENT PANEL
55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER
55355CUSHION, INSTRUMENT PANEL, NO.1
8 X 8 X 1025
8 X 12 X 1025
55356CCUSHION, INSTRUMENT PANEL, NO.2
55356ECUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
55358KCUSHION, INSTRUMENT PANEL, NO.4
55359DCUSHION, INSTRUMENT PANEL, NO.5
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2
55402CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH
55403CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH
55416ARETAINER, METER HOOD, NO.1
8202
90105C0157
main90105-C0157
90105C0212
main90105-C0212
90119C0107
main90119-C0107
90119C0263
main90119-C0263
90159C0006
main90159-C0006
90159C0016
main90159-C0016
90167C0004
main90167-C0004
90178C0034
main90178-C0034
9018305094
main90183-05094
9046712080
main90467-12080
9046713082A0
main90467-13082A0
33 parts on this diagram · 7 diagrams in section
