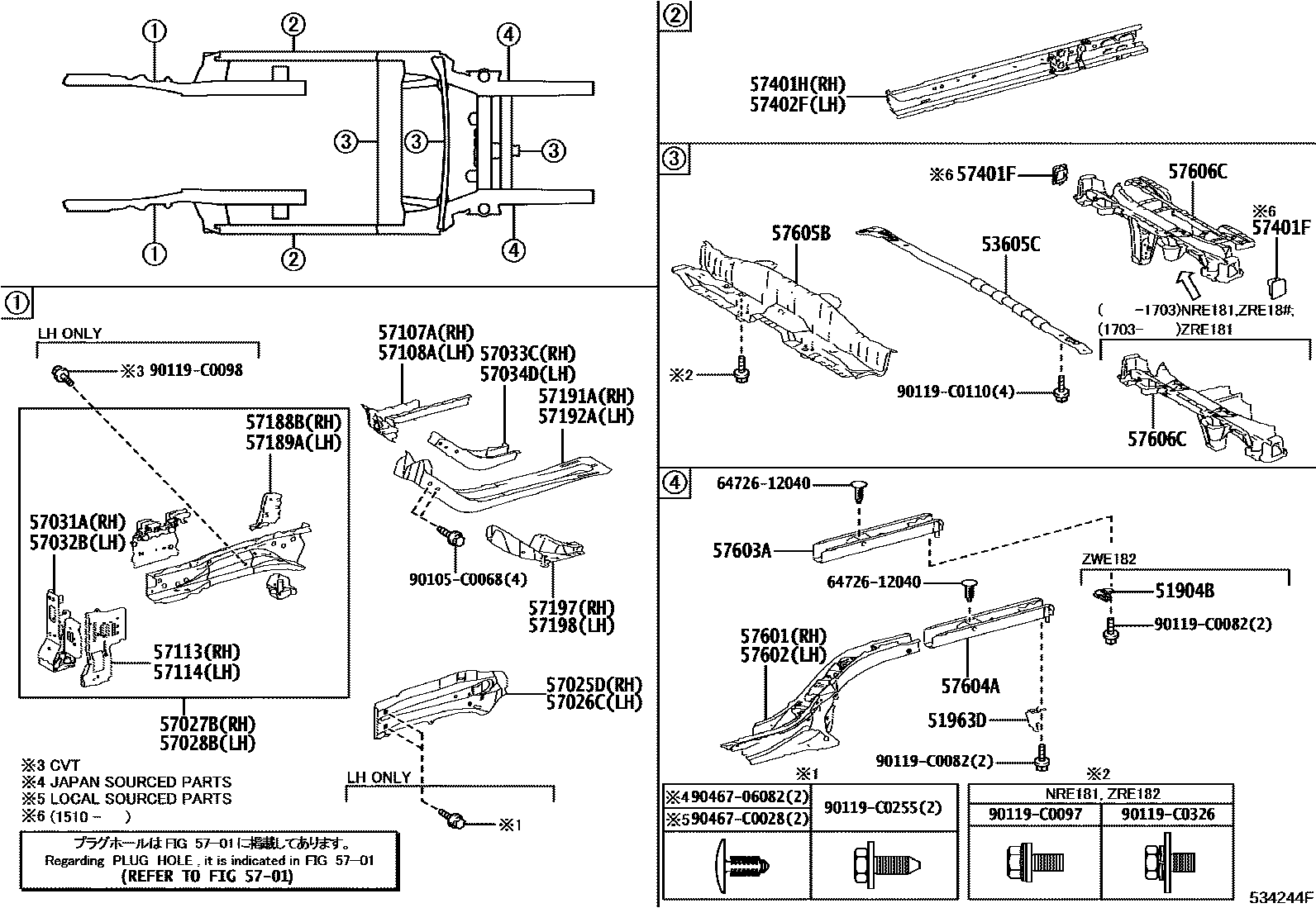

51904BHANGER SUB-ASSY, EXHAUST PIPE, NO.4

main51904-02020i201704

51963DHOOK, TRANSPORT, REAR LH

main51968-02090i201406

53605CBRACE SUB-ASSY, REAR FLOOR SIDE MEMBER

main53605-02021i201406

5701HOLE PLUG

→ Go to FIG 57-01

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-02040i201406

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-02040i201406

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-02050i201406

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-02040i201406

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-02030i201406

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-02030i201406

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-02060i201406

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-02060i201406

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-02060i201406

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-02060i201406

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-02090i201406

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-02090i201406

57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

main57188-02030i201406

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

main57189-02030i201406

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-02120i201704-201802

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-02120i201406

57197BOX, TORQUE, FRONT RH

main57197-02060i201406

57198BOX, TORQUE, FRONT LH

main57198-02060i201406

57401FPLUG, HOLE

main58565-02020i201510

RH

main58566-02030i201704-201802

LH

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-02310i201406

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-02310i201406

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-02200i201406

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-02200i201406

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-02090i201704

main57603-02160i201512-201703

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-02060i201406-201601

main57604-02061i201602

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-02110i201704-201802

main57605-02270i201512-201703

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-02110i201703

main57606-02300i201512-201703

main57606-02320i201809

main57606-02330i201809

6472612040PAD, HOUSING SPARE WHEEL SILENCER, FRONT

main64726-12040

90105C0068

main90105-C0068

90119C0082

main90119-C0082

90119C0097

main90119-C0097

90119C0098

main90119-C0098

90119C0110

main90119-C0110

90119C0255

main90119-C0255

90119C0326

main90119-C0326

9046706082

main90467-06082

90467C0028

main90467-C0028
