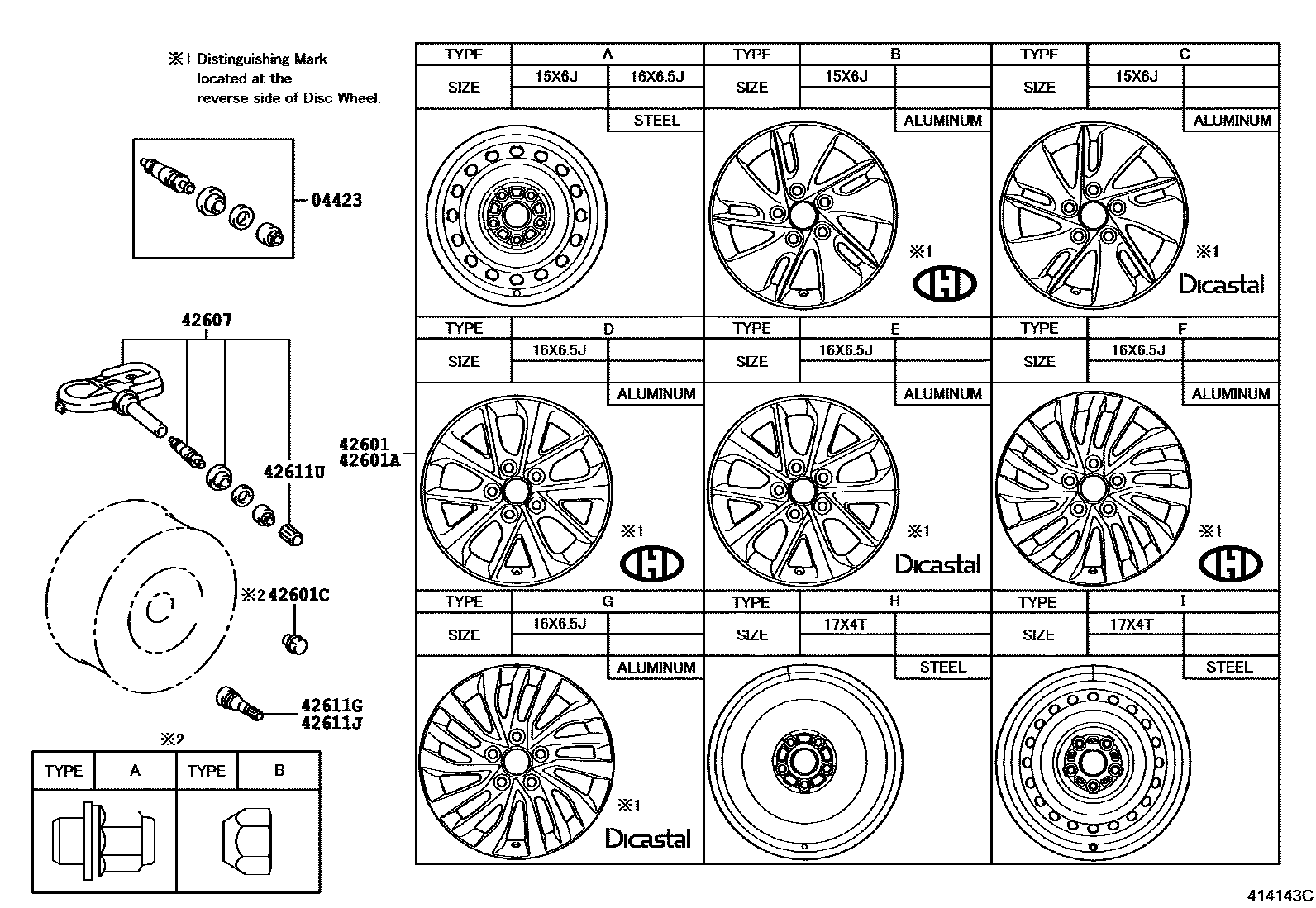

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
15X6J, #,TYPE B:REFER ILLUST.
15X6J, #,TYPE C:REFER ILLUST.
16X6.5J, #,TYPE D:REFER ILLUST.
16X6.5J, #,TYPE E:REFER ILLUST.
16X6.5J, #,TYPE F:REFER ILLUST.
16X6.5J, #,TYPE F:REFER ILLUST.
16X6.5J, #,TYPE G:REFER ILLUST.
15X6J, #,TYPE J:REFER ILLUST.
15X6J, #,TYPE K:REFER ILLUST.
16X6.5J, PLATED,TYPE L:REFER ILLUST.
16X6.5J, PLATED,LEATHER PACKAGE(*LES),TYPE M:REFER ILLUST.
15X6J, #,AUDIOLESS PACKAGE,TYPE A:REFER ILLUST.
sub42611-02871
16X6.5J, #,LEATHER PACKAGE&DARK CHROME PACKAGE,TYPE D:REFER ILLUST.
16X6.5J, #,LEATHER PACKAGE&DARK CHROME PACKAGE,TYPE E:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
15X6J, #,TYPE A:REFER ILLUST.
sub42611-02871
16X6.5J, #,TYPE D:REFER ILLUST.
16X6.5J, #,TYPE E:REFER ILLUST.
16X6.5J,MOON ROOF PACKAGE,TYPE A:REFER ILLUST.
sub42611-02M21
16X6.5J, #,LEATHER PACKAGE&DARK CHROME PACKAGE,TYPE D:REFER ILLUST.
16X6.5J, #,LEATHER PACKAGE&DARK CHROME PACKAGE,TYPE E:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
AUDIOLESS PACKAGE,TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
TIRE INFLATION PRESSURE WARNING-WITH
42611GVALVE (FOR TUBELESS TIRE)
(J)
(L)
42611JVALVE (FOR TUBELESS TIRE SPARE)
LEATHER PACKAGE
(L)
42611UCAP, TIRE VALVE
8 parts on this diagram · 4 diagrams in section
