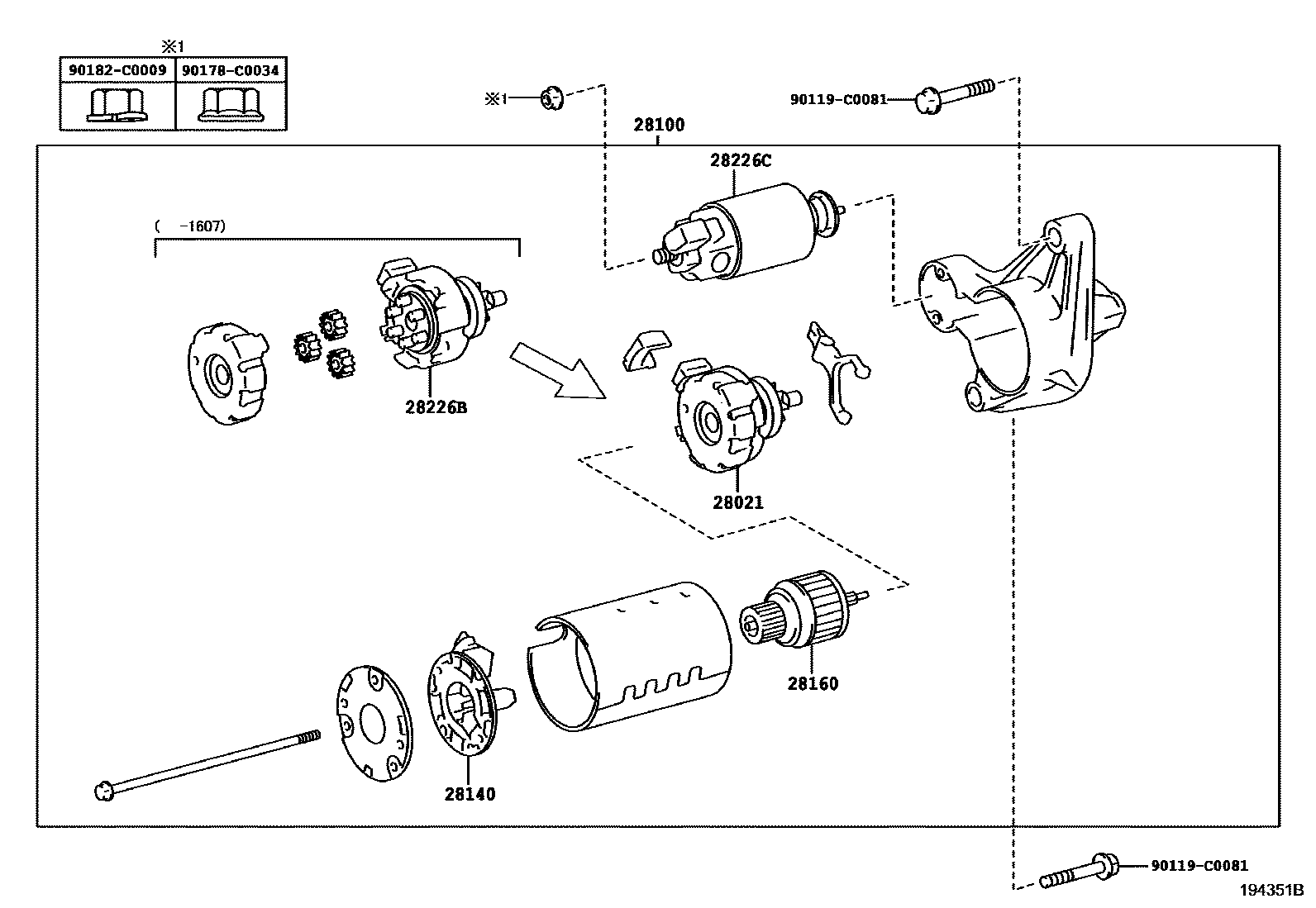

STARTER

0001 112V 1.2KW 0003 112V 1.7KW 0004 112V 1.7KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-0T330i2ZRFE..ZRE182..CVT201607-201610

main28021-0T360i2ZRFE..ZRE182201610-201802

main28021-0Y400i9NRFTS..NRE181..CVT201610-201703

28100STARTER ASSY

main28100-0T220i2ZRFE..ZRE182201610-201802

12V 1.7KW

main28100-0T330i1ZRFE..ZRE181;2ZRFE..ZRE182..6F201406-201610

12V 1.2KW

main28100-0Y400i9NRFTS..NRE181..CVT201610-201809

12V 1.7KW

main28100-0Y401i9NRFTS..NRE181..CVT201809

12V 1.7KW

main28100-0Y420i9NRFTS..NRE181..6F201610-201703

12V 1.7KW

28140HOLDER ASSY, STARTER BRUSH

main28140-0T330i1ZRFE..ZRE181;2ZRFE..ZRE182..6F201502-201610

main28140-0T340i1ZRFE,2ZRFE..ZRE18#201406-201409

main28140-0V040i2ZRFE..ZRE182201610-201802

main28140-21070i1ZRFE,2ZRFE..ZRE18#201409-201502

28160ARMATURE ASSY, STARTER

main28160-0N110i9NRFTS..NRE181..CVT201610-201703

main28160-0S050i2ZRFE..ZRE182201610-201802

main28160-0T330i1ZRFE..ZRE181;2ZRFE..ZRE182..6F201502-201610

main28160-21080i1ZRFE,2ZRFE..ZRE18#201406-201502

28226BSTARTER KIT, REPAIR SERVICE

main28226-0T300i1ZRFE,2ZRFE..ZRE18#201502-201607

main28226-37100i9NRFTS..NRE181..CVT201610-201802

main28226-47170i1ZRFE,2ZRFE..ZRE18#201406-201502

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28226-0T330i1ZRFE..ZRE181;2ZRFE..ZRE182..6F201502-201610

main28226-0T340i1ZRFE,2ZRFE..ZRE18#201406-201409

main28226-37130i1ZRFE,2ZRFE..ZRE18#201409-201502

90119C0081

main90119-C0081

90178C0034

main90178-C0034

90182C0009

main90182-C0009

9 parts on this diagram · 3 diagrams in section
