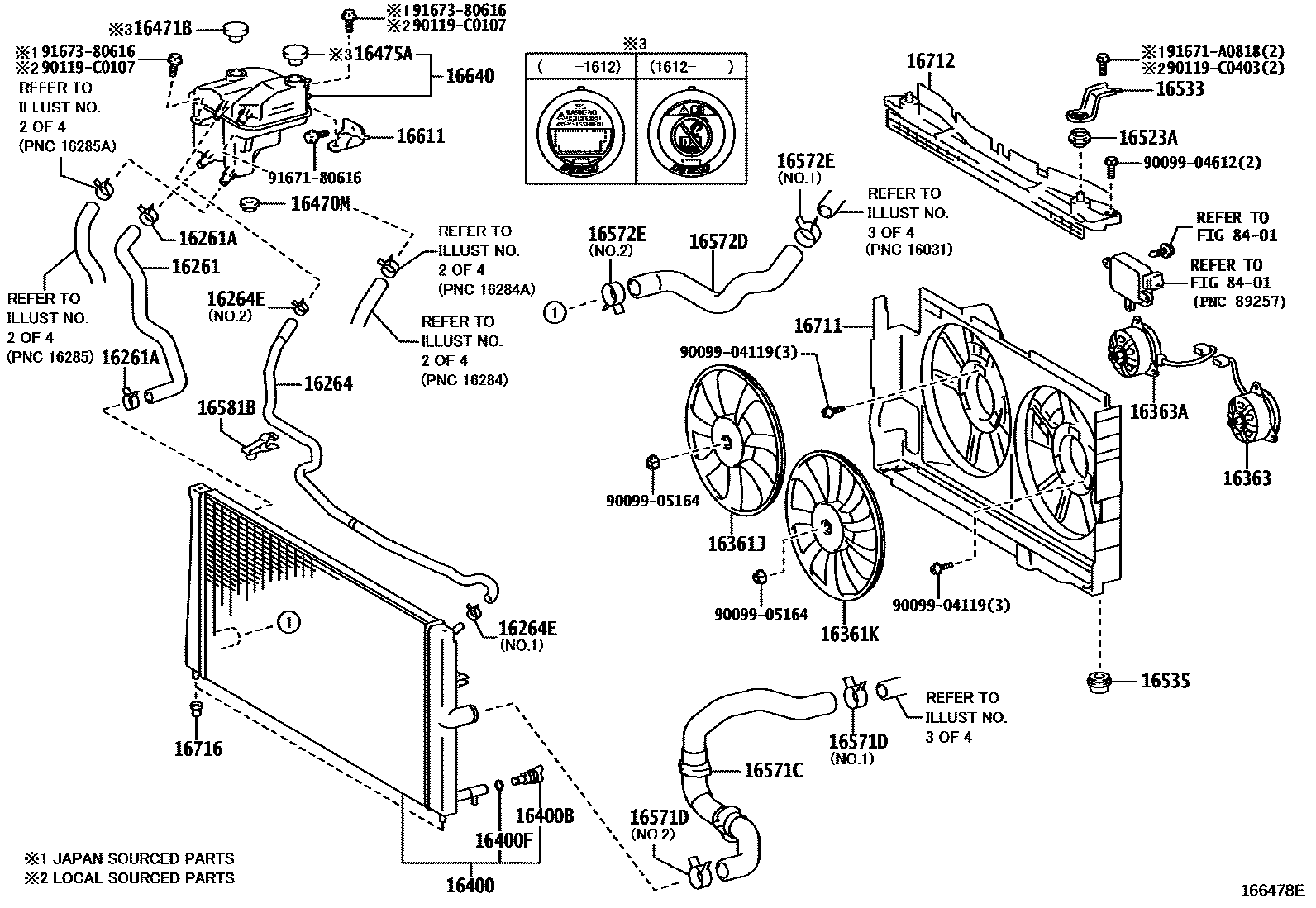

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264HOSE, WATER BY-PASS, NO.2
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
16361FAN
16361JFAN, RH
16361KFAN, LH
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16470MGROMMET
(J)
(L)
16523ACUSHION, RADIATOR SUPPORT
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
NO.1:REFER ILLUST.
NO.1
NO.2:REFER ILLUST.
NO.2
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
16581CLAMP, HOSE(FOR WATER HOSE)
(L),NO.2
NO.1
NO.3
(J),NO.2
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
16611BRACKET, RADIATOR RESERVE TANK
16640TANK ASSY, INTERCOOLER RESERVE
16711SHROUD, FAN
16712SHROUD, FAN, NO.2
16716CUSHION, FAN SHROUD
8401
9009904119
main90099-04119
9009904612
main90099-04612
9009905164
main90099-05164
90119C0107
main90119-C0107
90119C0403
main90119-C0403
9167180616
main91671-80616
91671A0818
main91671-A0818
9167380616
main91673-80616
39 parts on this diagram · 13 diagrams in section
