CAMSHAFT & VALVE

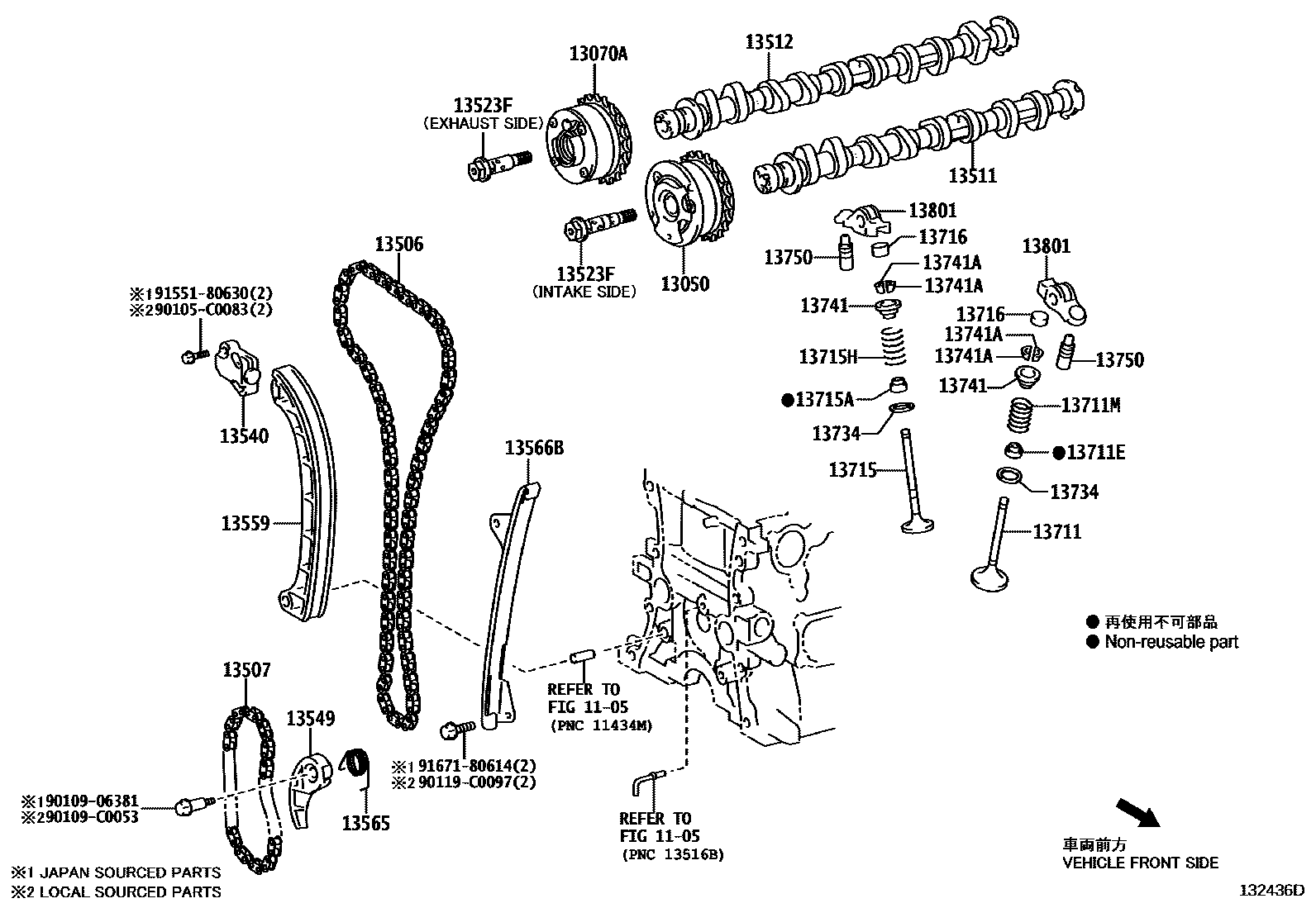

Parts diagram

1105CYLINDER BLOCK

→ Go to FIG 11-05

13050GEAR ASSY, CAMSHAFT TIMING

main13050-0T060i201704-201802

main13050-0T120i201704

main13050-0Y040i201704

*475

main13050-47030i201704

*474

13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST

main13070-0T050i201406

main13070-0Y030i201610-201703

main13070-47030i201704

*474

13506CHAIN SUB-ASSY

main13506-0T090i201406

main13506-0Y050i201610-201703

main13506-47040i201704

*474

13507CHAIN SUB-ASSY, NO.2

main13507-0H020i201406

main13507-0Y010i201610-201703

main13507-47010i201704

*474

13511CAMSHAFT

main13501-0T021i201704-201802

main13501-0T070i201512-201703

main13501-0Y110i201704

*475

main13501-47070i201704

*474

13512CAMSHAFT, NO.2

main13502-0T020i201704-201802

main13502-0T060i201704-201903

main13502-0T110i201904

main13502-0Y090i201704

*475

main13502-47060i201704

*474

13523FBOLT(FOR CAMSHAFT TIMING GEAR)

main135A0-0V020i201704-201907

*475,INTAKE SIDE

main135A0-0Y030i201610-201703

NO.2:REFER ILLUST.

main135A0-36011i201704-201907

*474,INTAKE SIDE

main135A0-47020i201704-201907

*474,EXHAUST SIDE

13540TENSIONER ASSY, CHAIN, NO.1

main13540-0T011i201704

main13540-0Y040i201610-201703

main13540-47060i201704

*474

13549PLATE, CHAIN TENSIONER

main13549-0T010i201704-201802

main13549-0Y010i201610-201703

main13549-47010i201704

*474

13559SLIPPER, CHAIN TENSIONER

main13559-0T010i201406

main13559-0Y010i201704

*474

main13559-0Y020i201704

*475

13565SPRING, CHAIN DAMPER

main13565-0T010i201704

main13565-0Y010i201704

*475

main13565-37010i201704

*474

13566BGUIDE, TIMING CHAIN

main13566-0Y030i201704

*474

main13566-0Y040i201704

*475

13711VALVE, INTAKE

main13711-0T030×8i201704

main13711-0Y010×8i201704

*475

main13711-47010×8i201704

*474

13711ESEAL, INTAKE VALVE STEM OIL

main90913-02126×8i201704

*474

main90913-C2001×8i201610-201703

13711MSPRING, COMPRESSION(FOR INTAKE VALVE)

main90501-30035×8i201704

*474

main90501-C0045×8i201610-201703

13715VALVE, EXHAUST

main13715-0T030×8i201704

main13715-0Y050×8i201610-201703

main13715-47040×8i201704

*474

13715ASEAL, EXHAUST VALVE STEM OIL

main90913-02127×8i201704-201710

*474

main90913-02131×8i201711-201907

*474

main90913-C2002×8i201704-201907

*475

13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)

main90501-30036×8i201704

*474

main90501-C0046×8i201610-201703

13716CAP, VALVE STEM

main13716-0T040×16i201704

*475

main13716-0Y010×16i201704

main13716-75020×16i201704

*474

13734SEAT, VALVE SPRING

main13734-0P020×16i201406

main13734-62020×16i201704

*474

13741RETAINER, VALVE SPRING

main13741-0Y020×16i201406-201609

main13741-0Y050×16i201610-201703

main13741-36010×16i201704

*474

13741ALOCK, VALVE SPRING RETAINER

main90913-03028×32i201704

*474

main90913-C3002×32i201704

*475

13750ADJUSTER ASSY, VALVE LASH

main13750-0T021×16i201406-201609

main13750-0V030×16i201609

main13750-0Y030×16i201704

*475

main13750-36020×16i201704

*474

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-0P020×16i201406-201609

main13801-0V020×16i201609

main13801-0Y030×16i201610-201703

main13801-36020×16i201704

*474

90105C0083

main90105-C0083

9010906381

main90109-06381

90109C0053

main90109-C0053

90119C0097

main90119-C0097

9155180630

main91551-80630

9167180614

main91671-80614

31 parts on this diagram · 3 diagrams in section
