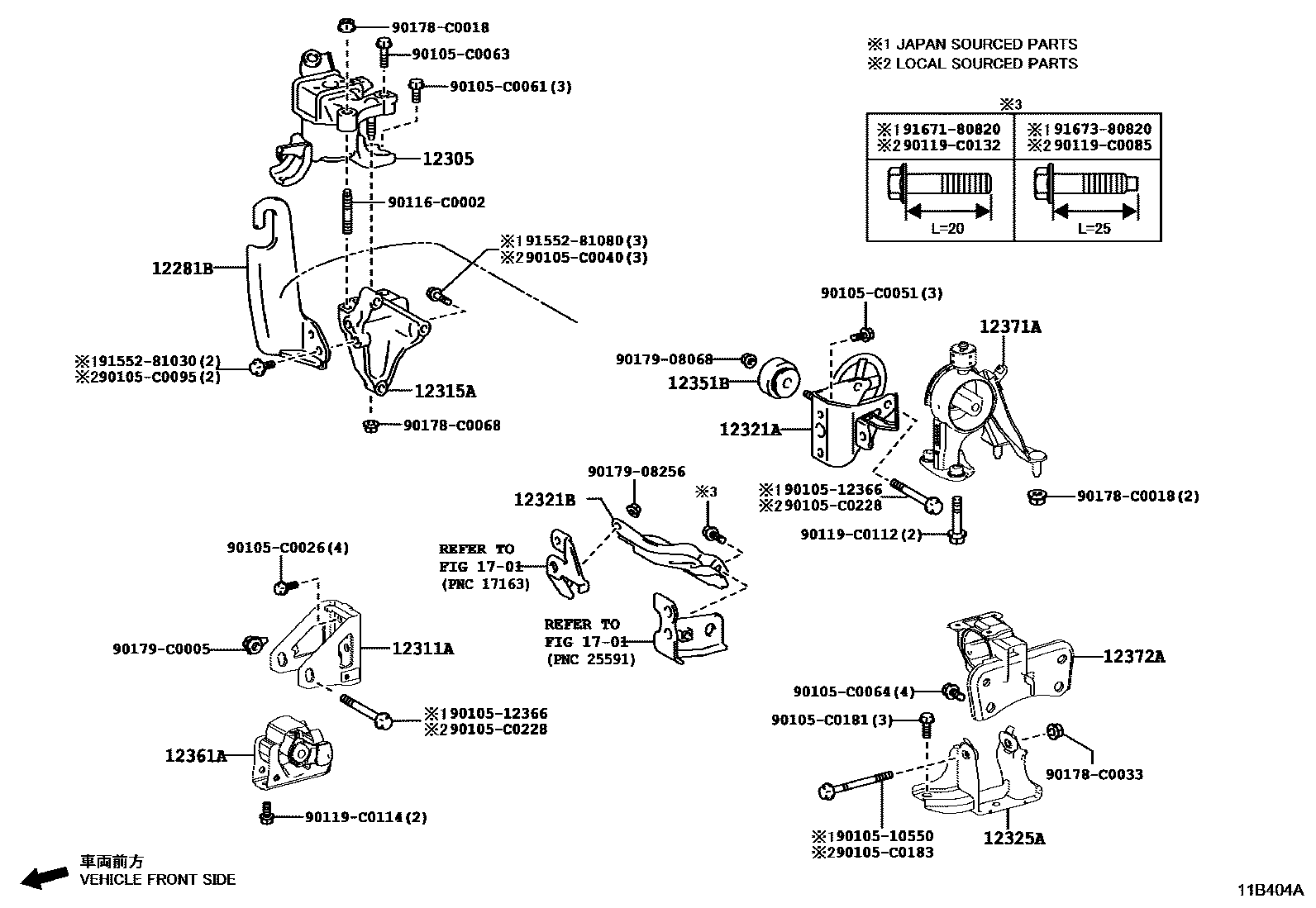

12281BHANGER, ENGINE, NO.1

main12281-0Y090i201610-201703

main12281-47060i201704

*474

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0T190i201406

main12305-0T300i201512-201703

main12305-0Y200i201704

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-0T470i201406

main12311-0T480i201406

main12311-0T510i201512-201703

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0T010i201406

main12315-0Y080i201704

*475

main12315-47081i201704

*474

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-0T010i201406

main12321-0T210i201704

main12321-0T360i201610-201703

main12321-0T590i201512-201703

12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT

main43409-02061i201407

NO.1

main43409-02090i201610-201703

main43409-12060i201406-201407

NO.1

main43498-02111i201407

NO.2

main43498-12051i201406-201407

NO.2

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-0T010i201406

main12325-0T190i201704

main12325-0T300i201406-201609

main12325-0T470i201704

12351BDAMPER, ENGINE MOUNTING

main12351-0T010i201406

main12351-0T020i201610-201703

main12351-0T280i201512-201703

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-0T330i201704-201805

main12361-0T331i201806

main12361-0T340i201704-201805

main12361-0T341i201806

main12361-0T400i201512-201703

main12361-0T401i201806

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0T420i201406-201702

main12371-0T430i201406-201702

main12371-0T470i201704-201709

main12371-0T471i201710

main12371-0Y020i201704-201802

main12371-0Y030i201702

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0T480i201610-201703

main12372-0T490i201406-201609

main12372-0T500i201406

main12372-0T550i201704

main12372-0Y310i201610-201703

1701MANIFOLD

→ Go to FIG 17-01

9010510550

main90105-10550

9010512366

main90105-12366

90105C0026

main90105-C0026

90105C0040

main90105-C0040

90105C0051

main90105-C0051

90105C0061

main90105-C0061

90105C0063

main90105-C0063

90105C0064

main90105-C0064

90105C0095

main90105-C0095

90105C0181

main90105-C0181

90105C0183

main90105-C0183

90105C0228

main90105-C0228

90116C0002

main90116-C0002

90119C0085

main90119-C0085

90119C0112

main90119-C0112

90119C0114

main90119-C0114

90119C0132

main90119-C0132

90178C0018

main90178-C0018

90178C0033

main90178-C0033

90178C0068

main90178-C0068

9017908068

main90179-08068

9017908256

main90179-08256

90179C0005

main90179-C0005

9155281030

main91552-81030

9155281080

main91552-81080

9167180820

main91671-80820

9167380820

main91673-80820
