SHORT BLOCK ASSEMBLY

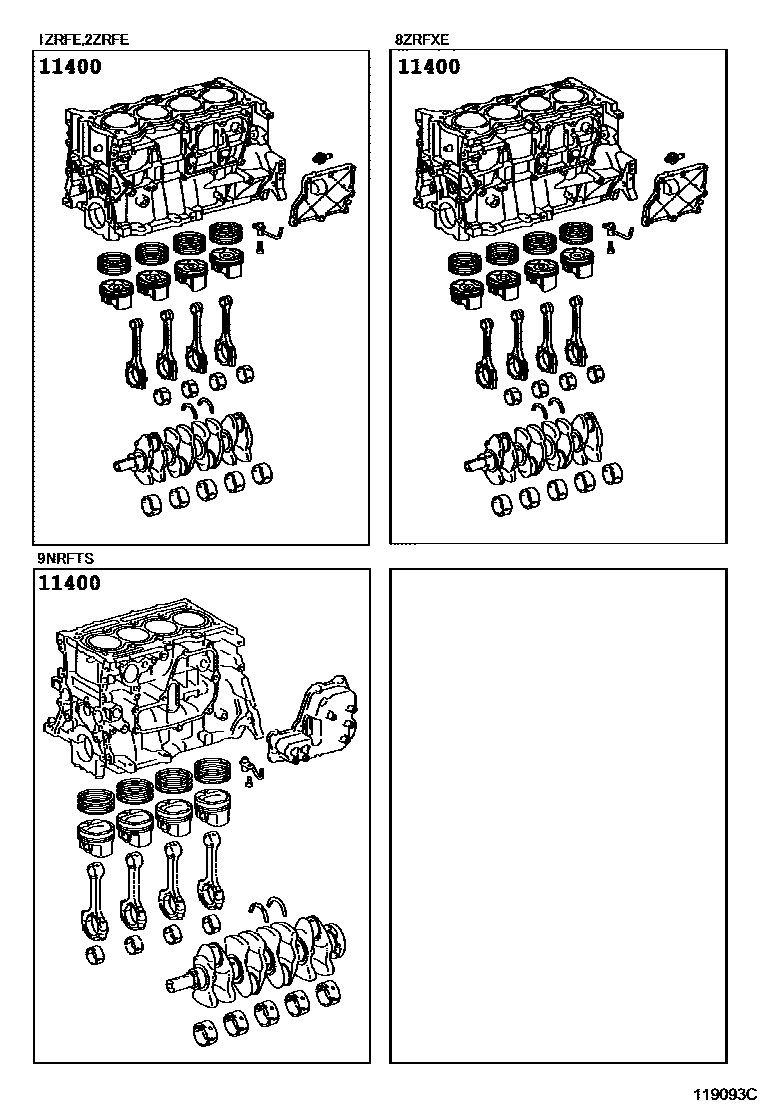

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0T340i201406

main11400-0T350i201704-201802

main11400-0T360i201704

main11400-0Y230i201704

*475; EXHAUST EMISSION CONTROL-JING 6,*475

main11400-47200i201704

*474

main11400-0Y260i201810

EXHAUST EMISSION CONTROL-CHINA 6B,*475

1 parts on this diagram · 1 diagram in section
