HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

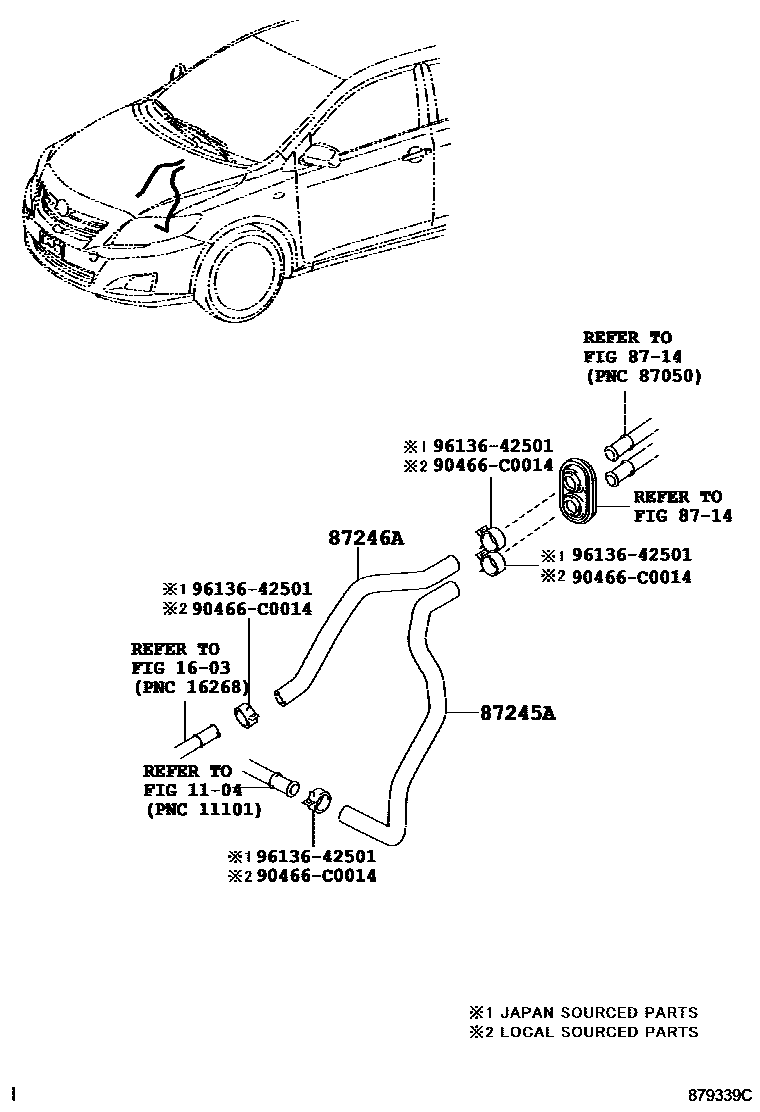

87245AHOSE, HEATER WATER, INLET A

main87245-02C40iZRE152..GLS,GLXS201009-201203

main87245-02G60iZRE153..6F201009-201301

main87245-02K30iZRE153..CVFC201009-201301

87246AHOSE, HEATER WATER, OUTLET A

main87245-02C50iZRE151,152..(4FC,5F,6F)..(GL,GLI,GLXI)201009

main87245-02G50iZRE153201009-201301

main87245-02L00iZRE152..CVFC..(GLS,GLXS)201009-201203

90466C0014

main90466-C0014

9613642501

main96136-42501

7 parts on this diagram · 4 diagrams in section
