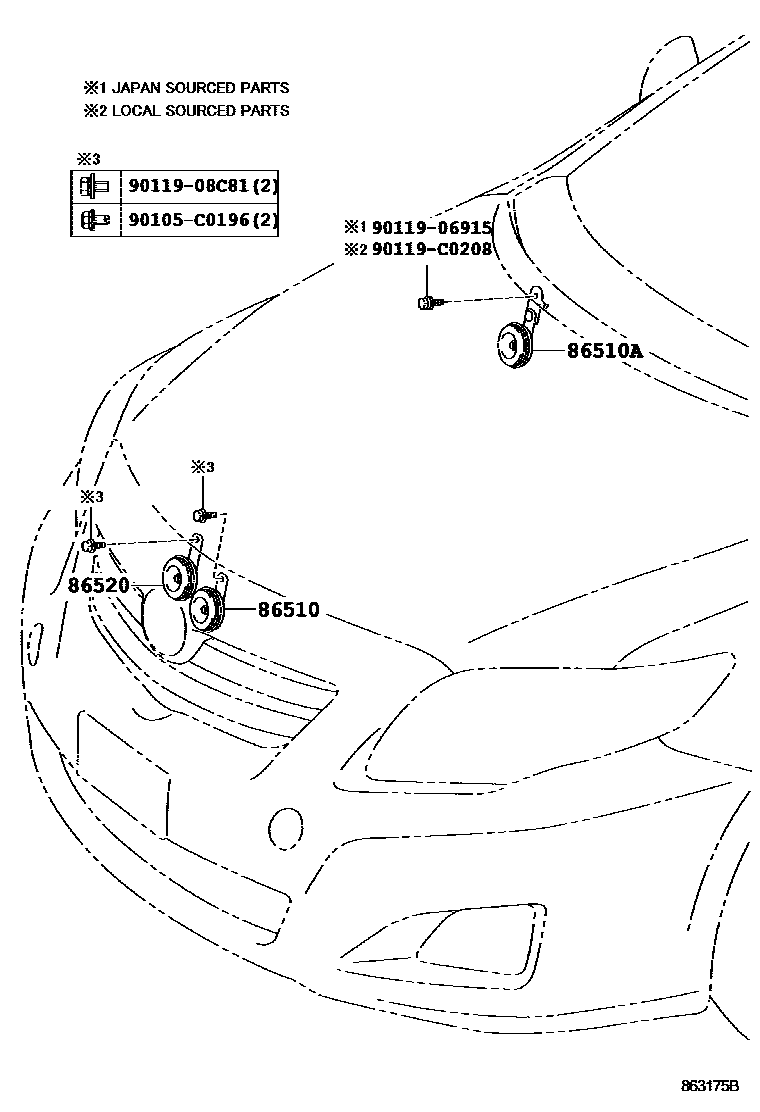

HORN

86510HORN ASSY, HIGH PITCHED

main86510-0P011iZRE15#200705-200908

main86510-0R020iZRE15#200909-201009

main86510-0R040iZRE15#..GL,GLI,GLXI201310

86510AHORN ASSY, SECURITY

main86560-02060iZRE152..GLS,GLXS201009-201203

main86560-12031iZRE15#200705-201009

86520HORN ASSY, LOW PITCHED

main86520-06091iZRE15#200705-200908

main86520-06120iZRE15#200909-201009

main86520-06160iZRE15#..GL,GLI,GLXI201310

90105C0196

main90105-C0196

9011906915

main90119-06915

9011908C81

main90119-08C81

90119C0208

main90119-C0208

7 parts on this diagram · 1 diagram in section
