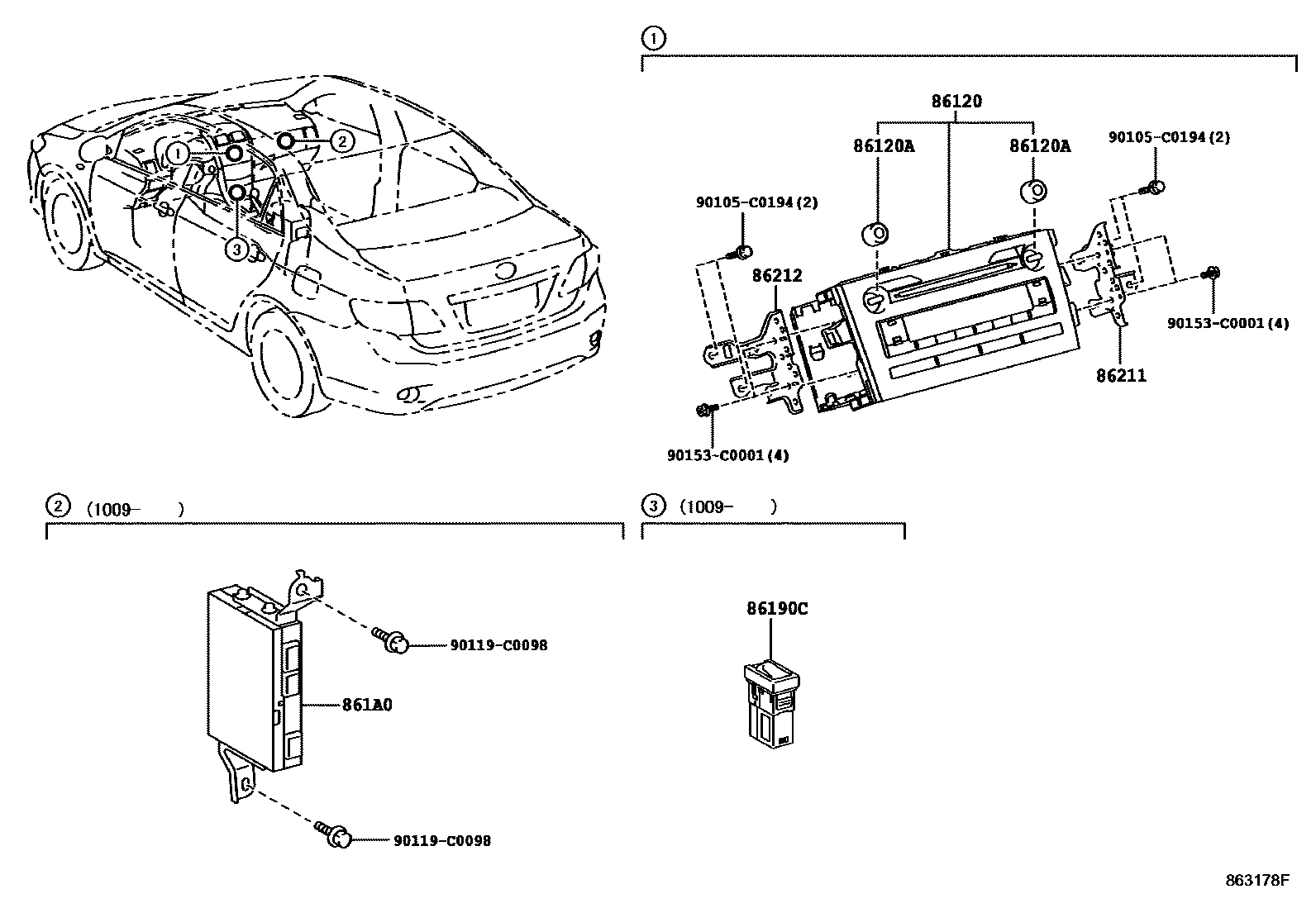

RADIO RECEIVER & AMPLIFIER & CONDENSER

86120RECEIVER ASSY, RADIO

main86120-02600i200705-200804

FUJITSU TEN,ID=12862; FUJITSU TEN,ID=12862,AUDIO (OVERSEAS MARKET)-AVN(MAP NAVI) 6SP

main86120-02601i200805-201009

FUJITSU TEN,ID=12894; FUJITSU TEN,ID=12894,AUDIO (OVERSEAS MARKET)-AVN(MAP NAVI) 6SP

main86120-02610supersedes 86120-02J50i200705-201009

PIONEER,ID=P2835; PIONEER,ID=P2835,AUDIO (OVERSEAS MARKET)-AVN(MAP NAVI) 6SP; PIONEER,ID=P2835,W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR); PIONEER,ID=P2835,WITH(*CRC,*CRS & HEATER MIRROR)

main86120-02C10supersedes 86120-02J50i201009-201310

PANASONIC,ID=52865; PANASONIC,ID=52865,LIMITED'13(LEATHER SEAT); PANASONIC,ID=52865,LIMITED'13(MANUAL AIR CONDITIONER); PANASONIC,ID=52865,W(MOON ROOF)

main86120-02C20supersedes 86120-02J50i201104-201303

DELPHI,ID=D2823,MEMORIAL3

main86120-02J50i201310

PANASONIC,ID=510017; PANASONIC,ID=510017,LIMITED'13(LEATHER SEAT); PANASONIC,ID=510017,LIMITED'13(MANUAL AIR CONDITIONER); PANASONIC,ID=510017,W(MOON ROOF)

86120AKNOB, RADIO RECEIVER SWITCH

main90011-23024×2i200705-200805

AUDIO (OVERSEAS MARKET)-AVN(MAP NAVI) 6SP

main90011-25160×2i200805-201009

AUDIO (OVERSEAS MARKET)-AVN(MAP NAVI) 6SP

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-02030i201009-201203

AUDIO (OVERSEAS MARKET)-AM/FM CD/BLUETOOTH 6SPEAKER; AUDIO (OVERSEAS MARKET)-AVN 6SPEAKER

861A0COMPUTER ASSY, MULTI-MEDIA INTERFACE

main861A0-02040i201009-201203

AUDIO (OVERSEAS MARKET)-AM/FM CD/BLUETOOTH 6SPEAKER; AUDIO (OVERSEAS MARKET)-AVN 6SPEAKER

86211BRACKET, RADIO, NO.1

main86211-02180i201009-201203

86212BRACKET, RADIO, NO.2

main86212-02170i201009-201301

90105C0194

main90105-C0194

90119C0098

main90119-C0098

90153C0001

main90153-C0001

9 parts on this diagram · 2 diagrams in section
