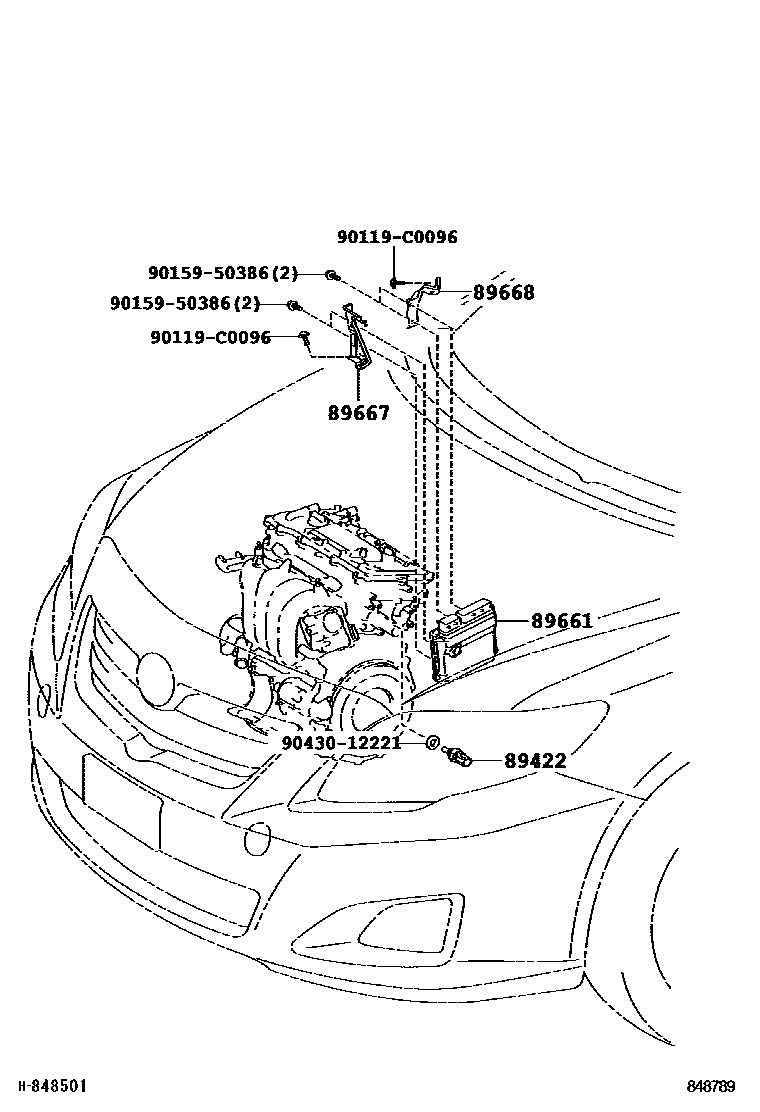

ELECTRONIC FUEL INJECTION SYSTEM

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-0D010iZRE15#200802-201009

main89422-33030iZRE15#200705-200802

89661COMPUTER, ENGINE CONTROL

main89661-02Y70iZRE152..6F..(GLS,GLXS)201009-201203

main89661-02Y90iZRE152..CVFC..(GLS,GLXS)201009-201203

main89661-02Z10iZRE153..6F201009-201301

main89661-02Z30iZRE153..CVFC201009-201301

main89661-02J10supersedes 89661-02Y30iZRE151..5F200705-200901

EQUIPPED WITH ON BOARD DIAGNOSIS AREA

main89661-02J30supersedes 89661-02Y50iZRE151..4FC200705-200901

EQUIPPED WITH ON BOARD DIAGNOSIS AREA

main89661-02J50supersedes 89661-02J60iZRE152..6F200705-200901

EQUIPPED WITH ON BOARD DIAGNOSIS AREA

main89661-02J70supersedes 89661-02J80iZRE152..4FC200705-200901

EQUIPPED WITH ON BOARD DIAGNOSIS AREA

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-02210iZRE15#200705-201009

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02180iZRE15#200705-201009

90119C0096

main90119-C0096

9015950386

main90159-50386

9043012221

main90430-12221

7 parts on this diagram · 1 diagram in section
